Honda CM400A - Page 175

To Next Page

To Previous Page

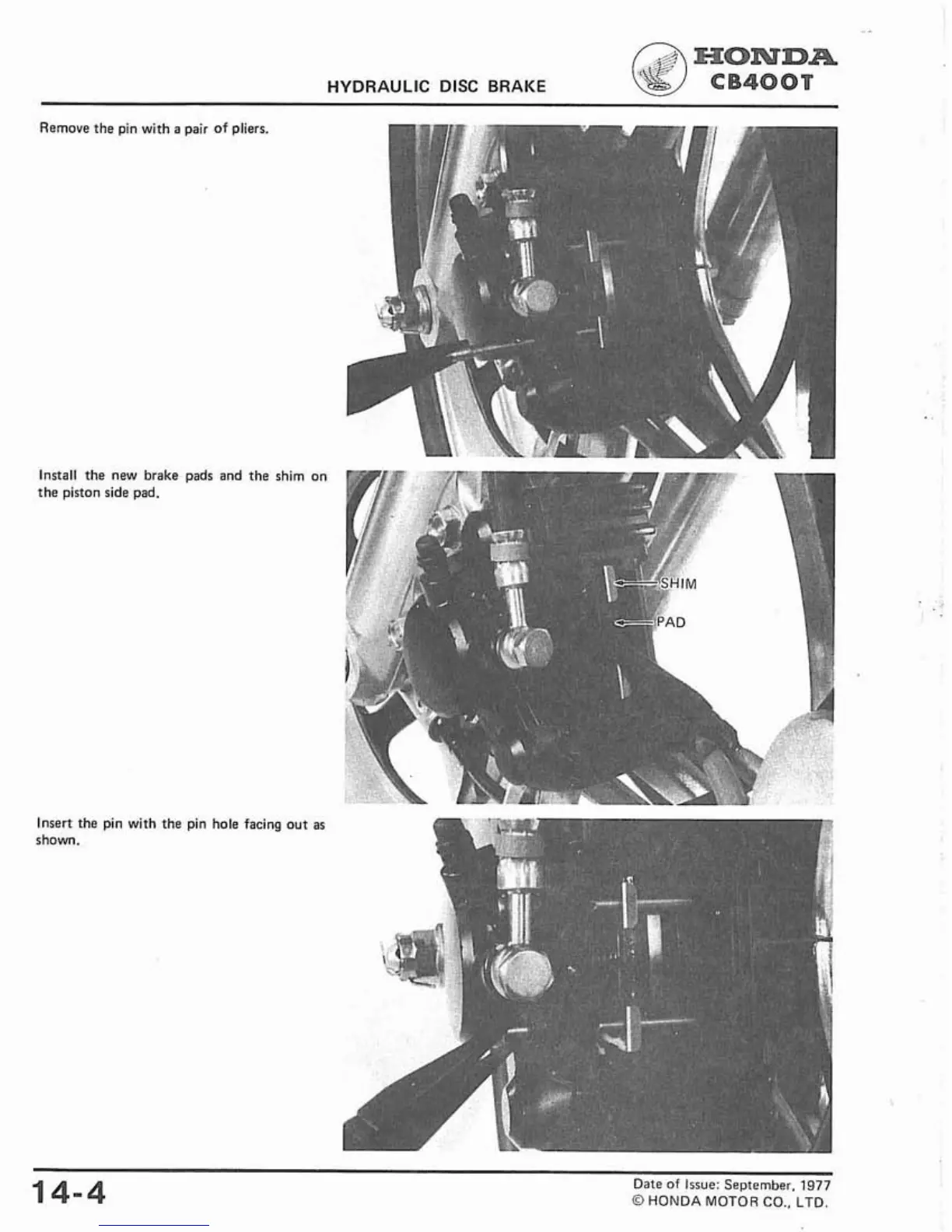

HYDRAULIC DISC BRAKE

Remove the pin with a pair of pliers.

Install the new brake

the piston side pad.

pads and the shim on

Insert the pin with the pin hole facing out as

shown.

14-4

Date

Issue: September.

1977

HONDA MOTOR CO..

LTD.
