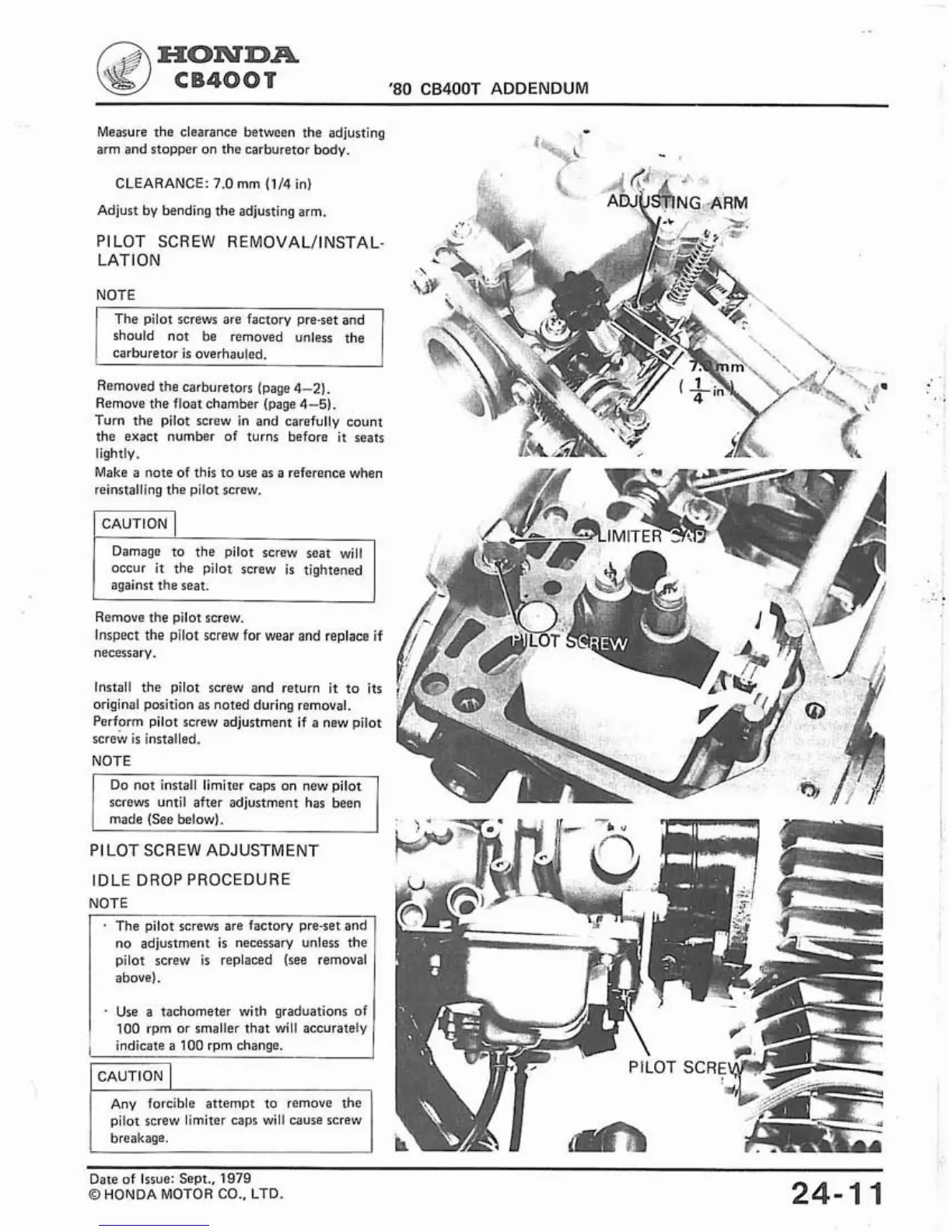

Measure the clearance between the adjusting
arm and stopper on the carburetor body.
CLEARANCE:
7.0 mm (114 in)
Adjust by bending the adjusting arm.
PILOT SCREW REMOVAL/INSTAL-
LATION
NOTE
The pilot screws are factory pre-set and
should not be removed unless the
carburetor is overhauled.
Removed the carburetors (page
4-2).
Remove the float chamber (page 4-51,
Turn the pilot screw in and carefully count
the exact number of turns before
it seats
lightly.
Make a note of this to use as a reference when
reinstalling the pilot screw.
occur
it the pilot screw is tightened
against the seat.
Remove the pilot screw.
Inspect the pilot screw for wear and replace if
necessary.
Install the pilot screw and return
it to its
original position as noted during removal.
Perform pilot screw adjustment if a new pilot
screw is installed.
NOTE
DO not install limiter caps on new pilot
screws until after adjustment
has been
made (See below).
PILOT SCREW ADJUSTMENT
IDLE DROP PROCEDURE
indicate a 100 rpm change.
-1
Any forcible attempt to remove the
pilot screw limiter caps will cause screw
breakage.
