HONDA
CB4sDQT

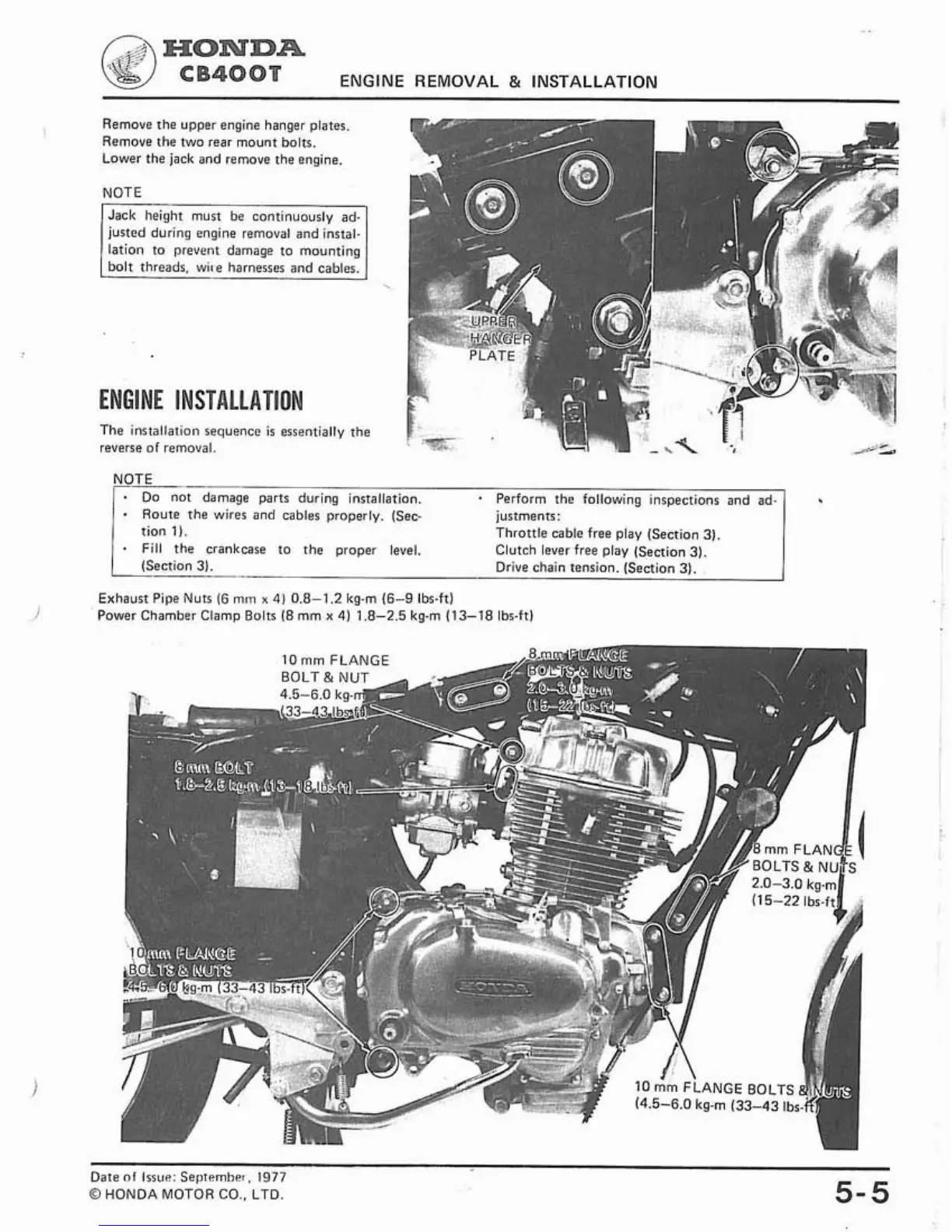

ENGINE REMOVAL
&
INSTALLATION
Remove the upper engine hanger plates.
Remove the two rear mount bolts.
Lower the jack and remove the engine.
NOTE
justed during engine removal and instal-
lation to prevent damage to mounting
bolt threads, wire harnesses and cables.
ENGINE INSTALLATION
The installation sequence
is
essentially the
reverse of removal.
Date
of
Issue: September. 1977
O
HONDA MOTOR CO., LTD.
5-5
Do not damage parts during installation. Perform the following inspections and ad-
Route the wires and cables properly. (Sec-
justments:
tion 11.
Throttle cable free play (Section 3).
Fill the crankcase to the proper level. Clutch lever free play (Section
3).
Drive chain tension. (Section 3).
r
Exhaust Pipe Nuts (6 nim
x
41
0.8-1.2 kg-m (6-9 lbs-ftl
,i
Power Chamber Clamp Bolts (8 mm
x
4) 1.8-2.5 kg-m (13-18 lbs-ft)
To Next Page
