102 H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015
Parts of the H-S81-HS System Termination modules

BR2 Terminal block
8-way terminal block for the connection of cables coming from module S81-F5003-1.
Field Connections
 BR3 Terminal block
8-way terminal block for output connection to field devices.
Standard Connection Diagrams
Tag Function Notes
∅ M1 + Input 1 From S81-F5003-1 module Output +
∅ M2 - Input 1 From S81-F5003-1 module Output -
∅ M3 + Input 2 From S81-F5003-1 module Output +
∅ M4 - Input 2 From S81-F5003-1 module Output -
∅ M1 + Input 3 From S81-F5003-1 module Output +
∅ M2 - Input 3 From S81-F5003-1 module Output -
∅ M3 + Input 4 From S81-F5003-1 module Output +
∅ M4 - Input 4 From S81-F5003-1 module Output -
Tag Function Notes
∅ M1 + Output 1
Maximum current 2A
∅ M2 - Output 1
∅ M3 + Output 2
∅ M4 - Output 2
∅ M1 + Output 3
∅ M2 - Output 3
∅ M3 + Output 4
∅ M4 - Output 4

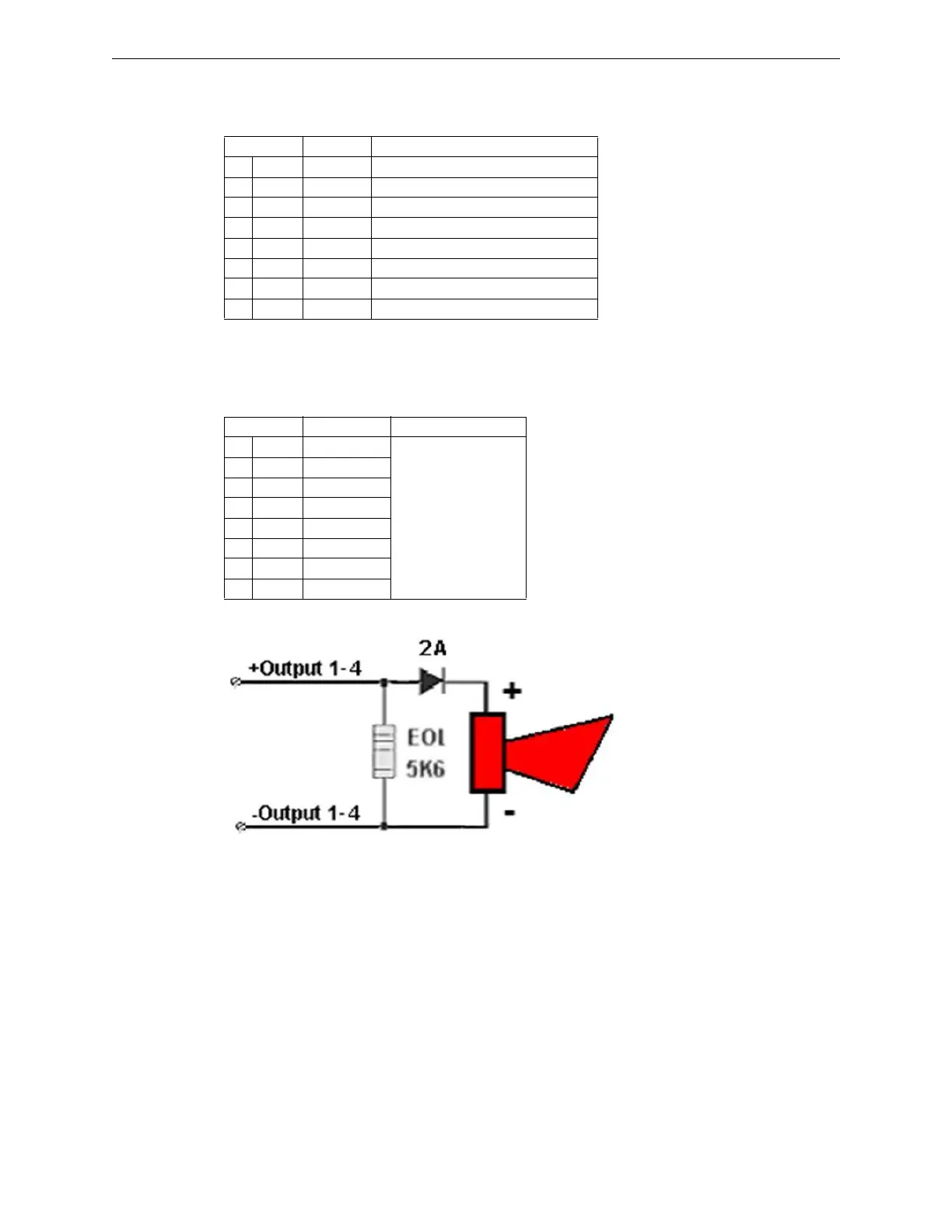

Figure 2.49 Sounder Standard Connection Diagram

Honeywell H-S81-HS Specifications

General

Category	Control Panel
Model	H-S81-HS
Brand	Honeywell
Frequency	50/60 Hz
Humidity Range	5% to 95% RH, non-condensing
