Honeywell H-S81-HS - Standard Connection Diagrams

56 H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015
Parts of the H-S81-HS System I/O modules
Standard Connection Diagrams
Function Termination with Flat Cable Termination with Multi-conductor Cable
Input signal 1 + ∅ 1
S81-T8003-1
1White
S81/CCT7R
--- ∅ 2 2 ---
Input signal 2 + ∅ 33Brown
--- ∅ 4 4 ---
Output signal 1 + ∅ 5 5 Green
--- ∅ 6 6 ---
Output signal 2 + ∅ 77Yellow
--- ∅ 8 8 ---

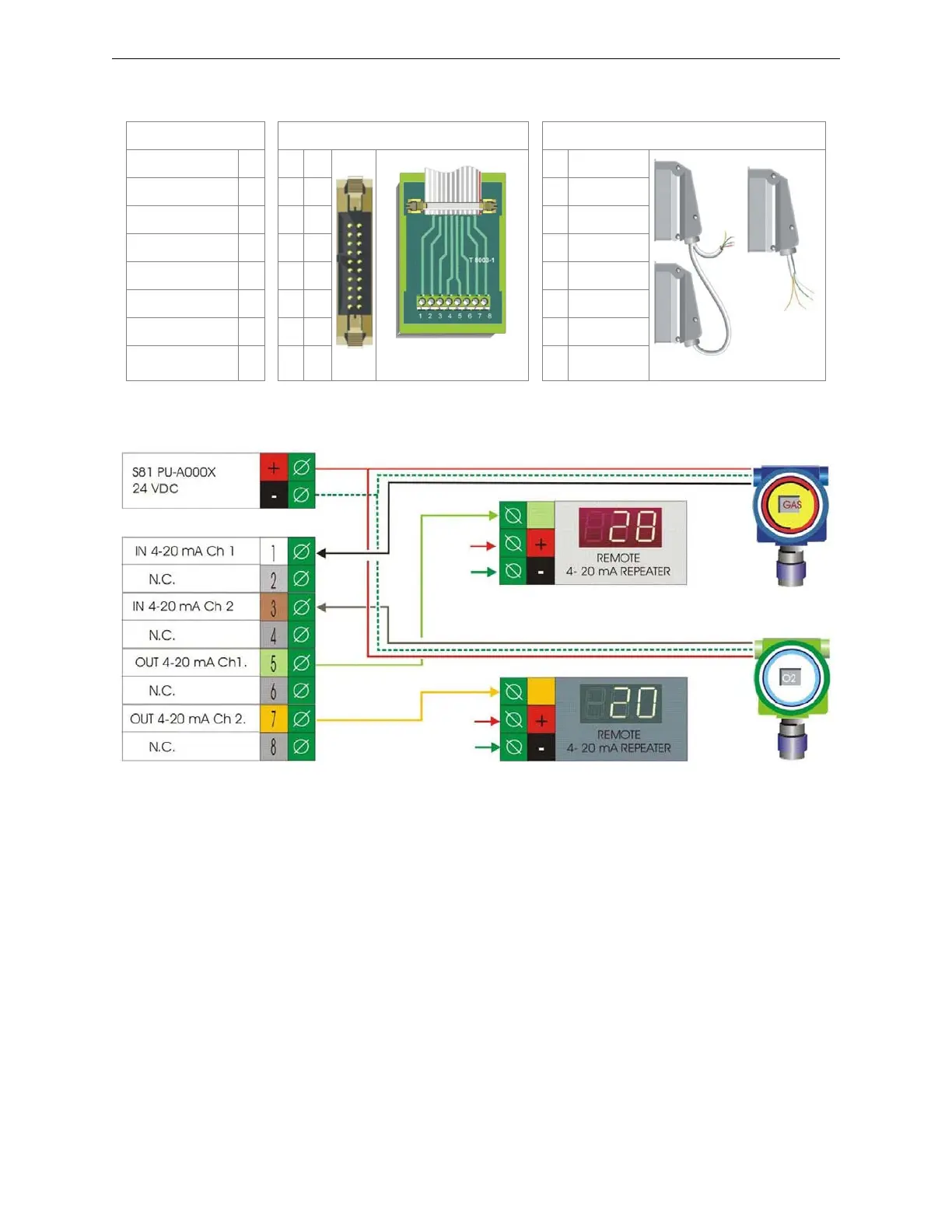

Figure 2.23 Field Connections
S81/CCT7
Figure 2.24 Standard Connection Diagram
