H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015 95
Termination modules Parts of the H-S81-HS System

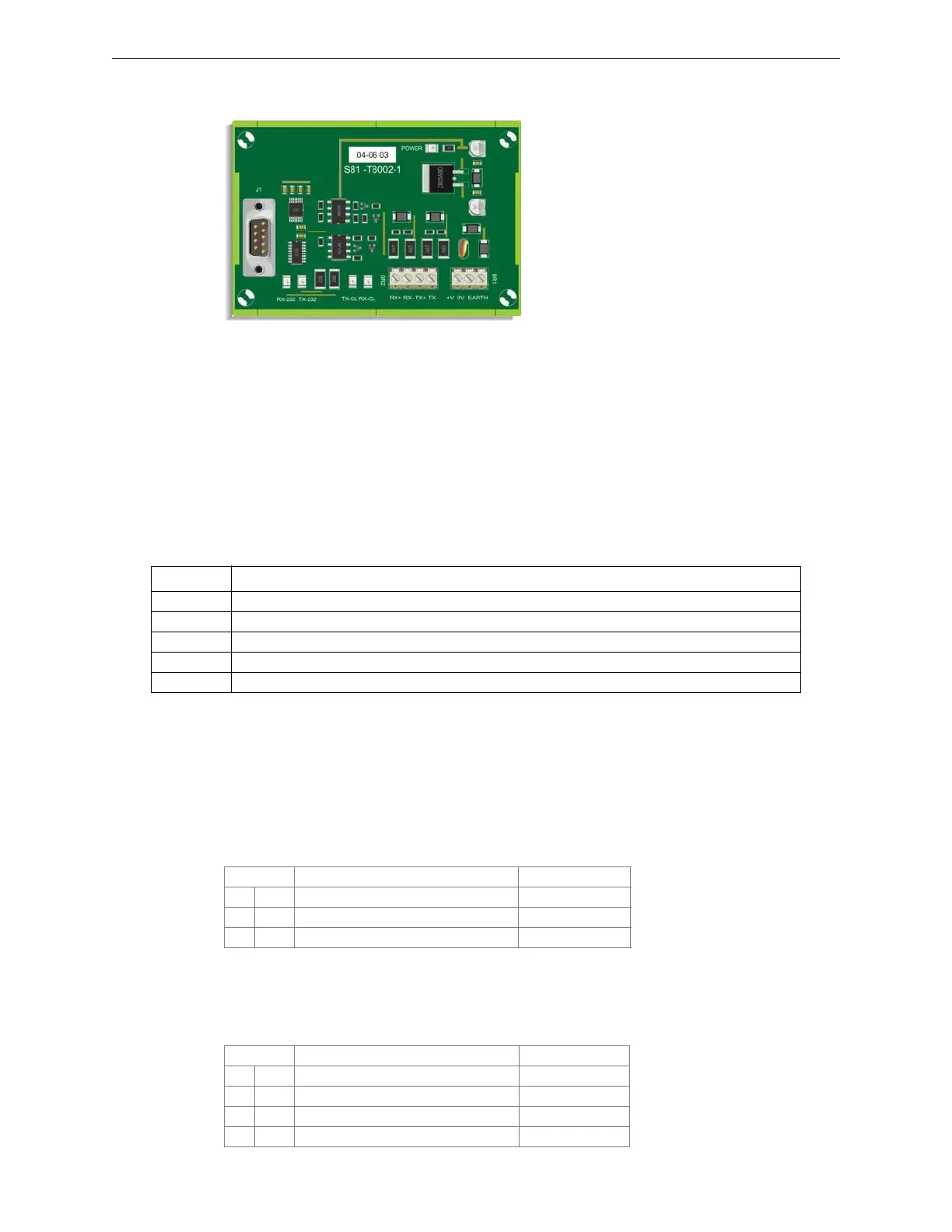

2.5.4 S81-T8002-1
Description
This module transforms the remote Host serial
output signal from RS232 to current loop with
galvanic insulation. The module is passive and
therefore needs an actively operating converter
on the other end. With this module it is possible
to connect a remote Host computer to a maximum
distance of 2,000 meters.
Technical Features
Status Indications
The module includes 5 x SMD LEDs with the following functions:
Internal Connections
 J1: RS232
Connection of RS232 serial line. Connect to the J5 connector of module S81-E2003-1 using the
S81-C232/2 cable.
 BR1: Power Supply
These 3 terminals connect supply voltage (+25VDC) and earth.
Field Connections
 BR2: Current loop
These 4 terminals connect
• Supply voltage: 22-29VDC
• Quiescent current: 30mA
• Current loop maximum distance: 2,000 meters at 9,600 bps
• Operating temperature: -5 - 50 °C
• Storage temperature: -30 - 80 °C
• Maximum humidity: 95% (RH) non-condensing
• Dimensions: W 57 x H 77 x D 50 mm
LED Indication
Power Steady on when supply voltage is detected
RX-232 On when data are received on the RS232 port
TX-232 On when data are transmitted on the RS232 port
RX-CL On when data are received on the current loop
TX-CL On when data are transmitted on the current loop
Tag Function Cable Color
∅ M1 25VDC power supply positive Red
∅ M2 25VDC power supply negative Black
∅ M3 Earth Yellow/Green
Tag Function Cable Color
∅ M1 RX data input positive White
∅ M2 RX data input negative Brown
∅ M3 TX data output positive Green
∅ M4 TX data output negative Yellow
