Honeywell H-S81-HS User Manual

78 H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015

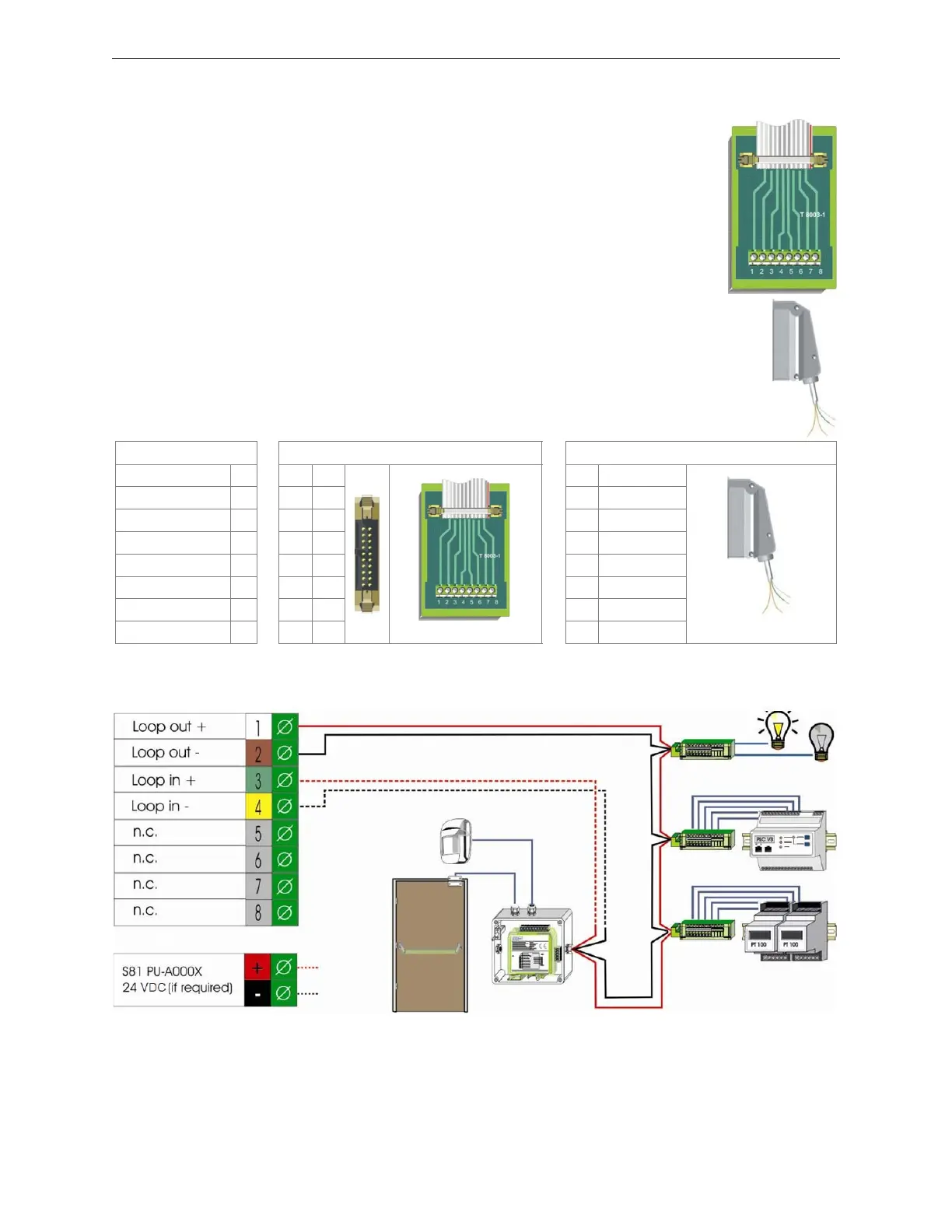

Parts of the H-S81-HS System I/O modules
Field Connections
The module can be connected to field terminal block by using a flat or a multi-
conductor cable, depending on the used bus type.
 S81-E2001-1 Bus
The module is connected to a S81-T8003-1 termination module with 8 termi-
nals with a 20-way flat cable.
 S81-E2001-2 Bus
The module is connected to the field terminal block with the S81-CCT4 4-conductor
multi-polar cable.
Standard Connection Diagrams
Function Termination with Flat Cable Termination with Multi-conductor Cable
+Loop Output
+ ∅ 1
S81-T8003-1
1
White
S81/CCT4
-Loop Output
- ∅ 22
Brown
+Loop Input
+ ∅ 33
Green
-Loop Input
- ∅ 44
Yellow
---
∅ 55
---
∅ 66
---
∅ 77
---
∅ 88
Figure 2.37 Field Connections
Figure 2.38 Standard Connection Diagram of Technological Controls
