I/O modules Parts of the H-S81-HS System
Standard Connection Diagrams
Supported devices
This module can control the following types of Apollo addressable devices:

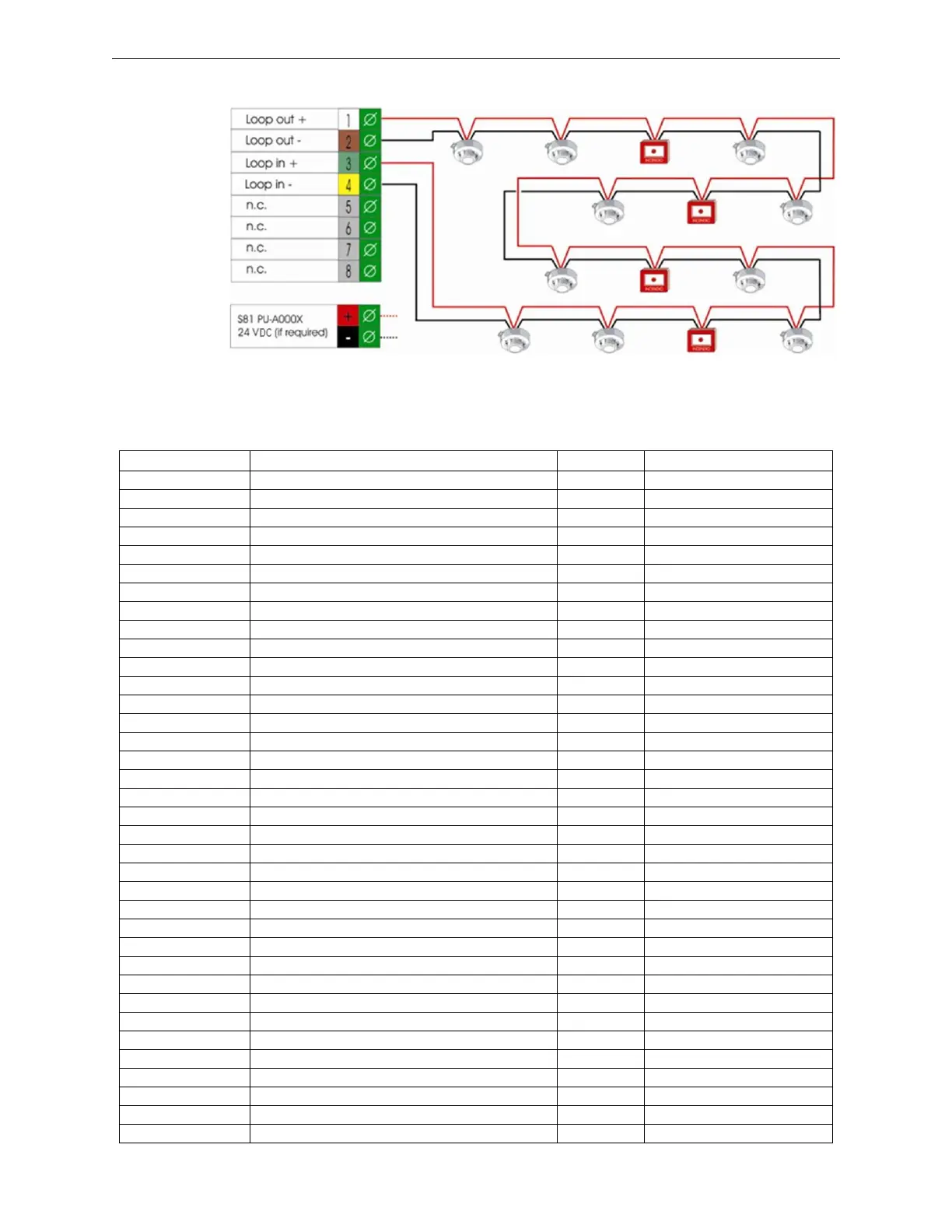

Figure 2.40 Loop Standard Connection Diagram
Part Number Description Type Pros-81 Notes
55000-600 XP95 Optical smoke detector X-OSD Powered by the loop
55000-500 XP95 Ionization smoke detector X-ISD Powered by the loop
55000-268 /273 XP95 Reflective Beam X-RB Powered by the loop
55000-885 XP95 Multi-sensor detector X-HSM Powered by the loop
55000-400 XP95 Heat detector (Standard) X-HD Powered by the loop
55000-401 XP95 Heat detector (High Temperature) X-HHD Powered by the loop
55100-905 XP95 Manual Call Point X-MCP Powered by the loop
XPA-CB-12034-APO XPander Optical smoke detector P-OSD Powered by the loop
XPA-CB-11170-APO XPander Heat detector (Standard) P-HD Powered by the loop
XPA-CB-11171-APO XPander Heat detector (High Temperature) P-HHD Powered by the loop
XPA-CB-13032-APO XPander Multi-sensor detector P-HSM Powered by the loop
XPA-IN-14011-APO XPander Input/Output Unit P-IOU Powered by the loop
XPA-MC-14006-APO XPander Manual Call Point P-MCP Powered by the loop
XPA-CB-14003-APO XPander Sounder/Beacon & Sounder Base P-SB Powered by the loop
XPA-IN-14007-APO XPander Loop Interface P-LI Powered by the loop
55000-640 XP95 I.S. Optical smoke detector X-OSD Powered by the loop
55000-540 XP95 I.S. Ionization smoke detector X-ISD Powered by the loop
55000-440 XP95 I.S. Heat detector (Standard) X-HD Powered by the loop
55100-940 XP95 I.S. Manual Call Point X-MCP Powered by the loop
55000-847 Standard Input/Output Unit X-IOU Powered by the loop
55000-875 Standard Mains Input/Output Unit X-MIO Powered by the loop
55000-843 Standard Switch Monitor X-SM Powered by the loop
55000-841 Standard Switch Monitor Plus X-SMP Powered by the loop
55000-845 Standard Zone Monitor X-ZMU Powered by the loop
55000-852 Standard Sounder Control Unit X-SCU Requires external power supply
55000-803 Din Rail Input/Output Unit X-IOU Powered by the loop
55000-797 Din Rail Main Input/Output Unit X-MIO Powered by the loop
55000-822 Din Rail Switch Monitor X-SM Powered by the loop
55000-821 Din Rail Switch Monitor Plus X-SMP Powered by the loop
55000-760 Din Rail mini Switch Monitor X-MSM Powered by the loop
55000-812 Din Rail Zone Monitor X-ZMU Powered by the loop
55000-182 Din Rail Sounder Control Unit X-SCU Requires external power supply
55000-773MAR Marine Din Rail Zone Monitor X-ZMU Powered by the loop
55000-772MAR Marine Din Rail Switch Monitor Plus X-SMP Powered by the loop
55000-181MAR Marine Din Rail Sounder Control Unit X-SCU Requires external power supply
58000-600MAR Discovery Marine Optical smoke detector D-OSD Powered by the loop
