H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015 143
Configuration Operating Instructions
Host Computer
By selecting this option, a sub-menu will be accessed where the communication parameters of the
Host computer peripheral device can be configured, as shown in the picture below:
In order to change the parameters use the Up/Down buttons. Press Esc to exit and go back to the
previous menu. Below are the allowed field values and their meaning:
Mode To configure the printing mode in the operating cycle.
• Reduced: Only alarmed/activated events and fault conditions are printed;
• Complete: All events are printed.
Baud Rate: To configure the bit rate of the serial port. (Allowed values: 1200, 2400, 4800, 9600, 19200).
Data Bits: To configure the data bit number of the serial communication. Allowed values are: 7 and 8.
Stop Bits: To configure the stop bit number of the serial communication. Allowed values are: 1 and 2.
Parity: To configure the parity control of the serial communication. Allowed values are: No (no parity),
Odd (off parity) and Even (even parity).
Handshake: To configure the handshake type of the serial communication. Allowed values are: Xon/Xoff,
Rts/Cts, and None.
Host
• Disab.: Host computer peripheral device with serial protocol disabled.
• Enabl.: Host computer peripheral device with serial protocol enabled.
ID Identification of control panel number if several systems are to be centralized. It must be a
progressive number from 1 to 99. This parameter is used by both the serial communication
protocol and by the TCP/IP communication protocol.
Baud Rate To configure the bit rate of the serial port. (Allowed values: 1200, 2400, 4800, 9600, 19200).
Data Bits To configure the data bit number of the serial communication. Allowed values are: 7 and 8.
Stop Bits To configure the stop bit number of the serial communication. Allowed values are: 1 and 2.
Parity To configure the parity control of the serial communication. Allowed values are: No (no parity),
Odd (off parity) and Even (even parity).

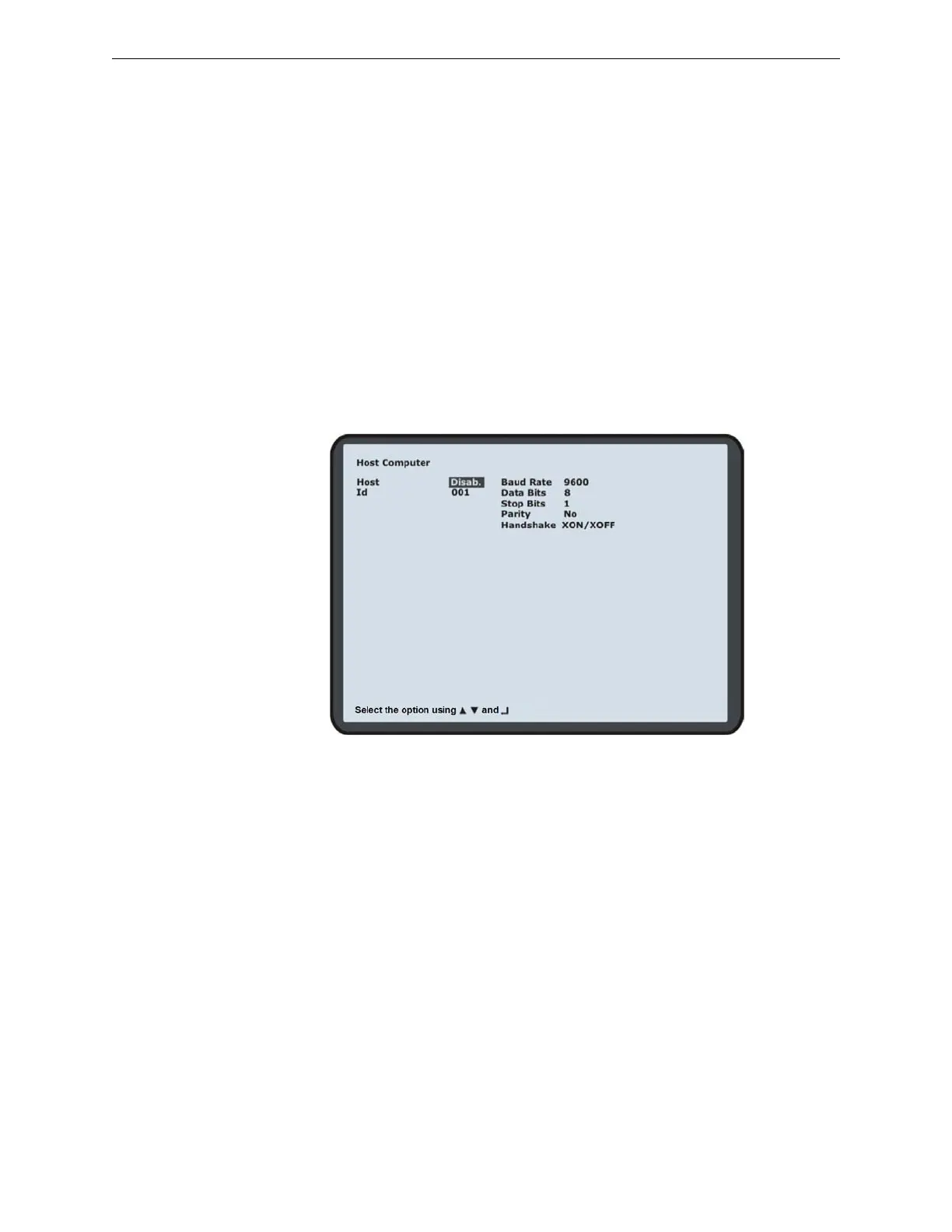

Figure 7.20 Host Computer
