Honeywell H-S81-HS - Fire Pre-Alarm Condition

H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015 149
Event Displaying Operating Instructions
7.11.3 Fire Pre-alarm Condition
In case of fire pre-alarm condition, the control panel carries out the following operations:
• The intermittent local buzzer activates.
Press Esc to view the details of the fire pre-alarm.
7.11.4 Fire Alarm Condition
In case of fire alarm condition, the control panel carries out the following operations:
• The continuous local buzzer activates.
• The local sounder activates.
• The Alarm LED flashes.
• The Fire Alarm relay activates.
Press Esc to view the details of the fire alarm.

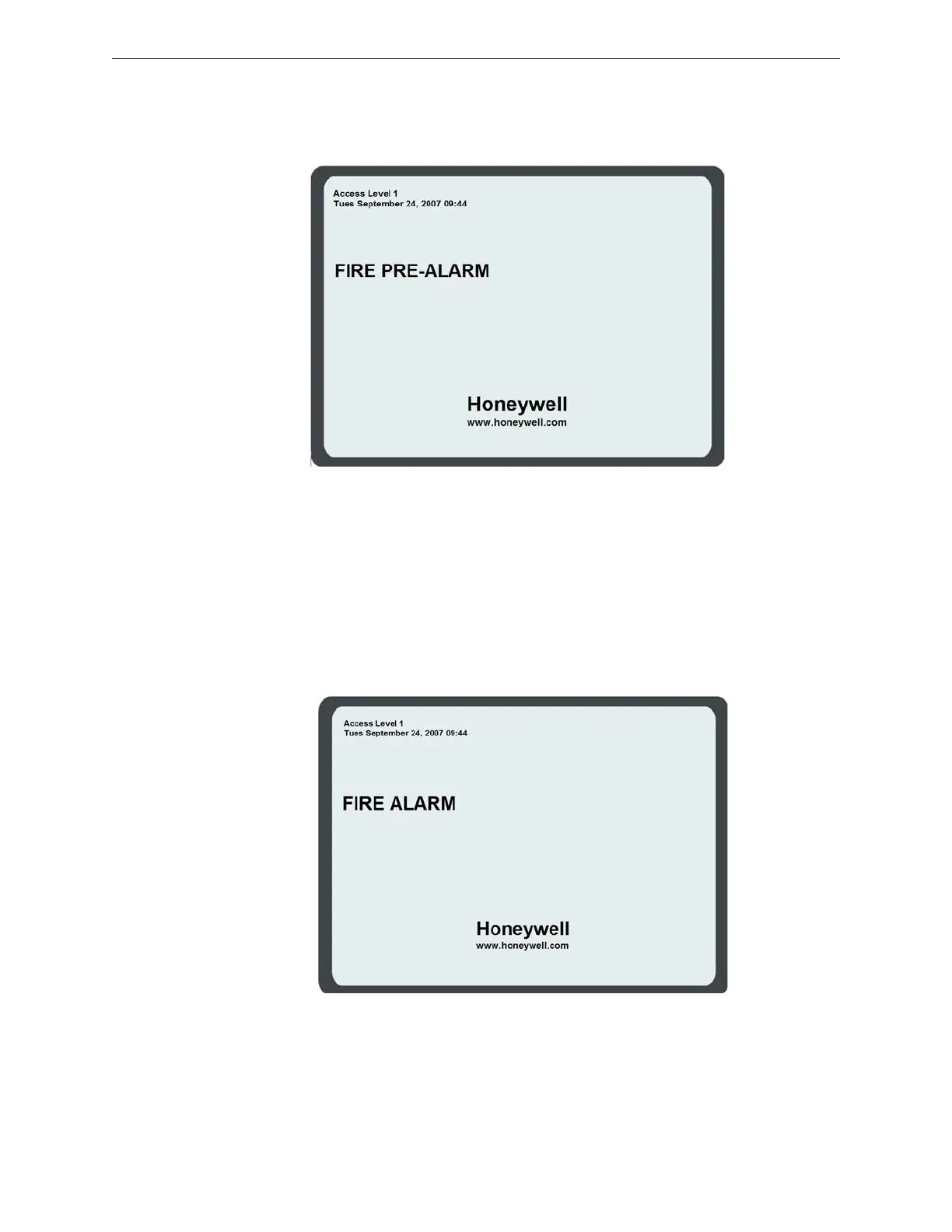

Figure 7.28 Fire Pre-alarm Condition
Figure 7.29 Fire Alarm Condition
