H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015 155

Disable/Enable Operating Instructions

7.19 Disable/Enable

By selecting this option from the main menu, the enable/disable stage is accessed.

7.19.1 Individual Devices

Select this option to enable/disable a single sensor or actuator.

7.19.2 Local Sounder

Select this option to enable/disable the local sounder

7.20 Test

This option allows to test one or more sensors. To test a sensor, first select the desired zone from the

list. When a device is being tested, the relevant alarm/tamper/trouble events will be recorded and

sent to the peripheral devices, but will cause no activation in control panel logics. This function is

used, for instance, for monitoring a sensor.

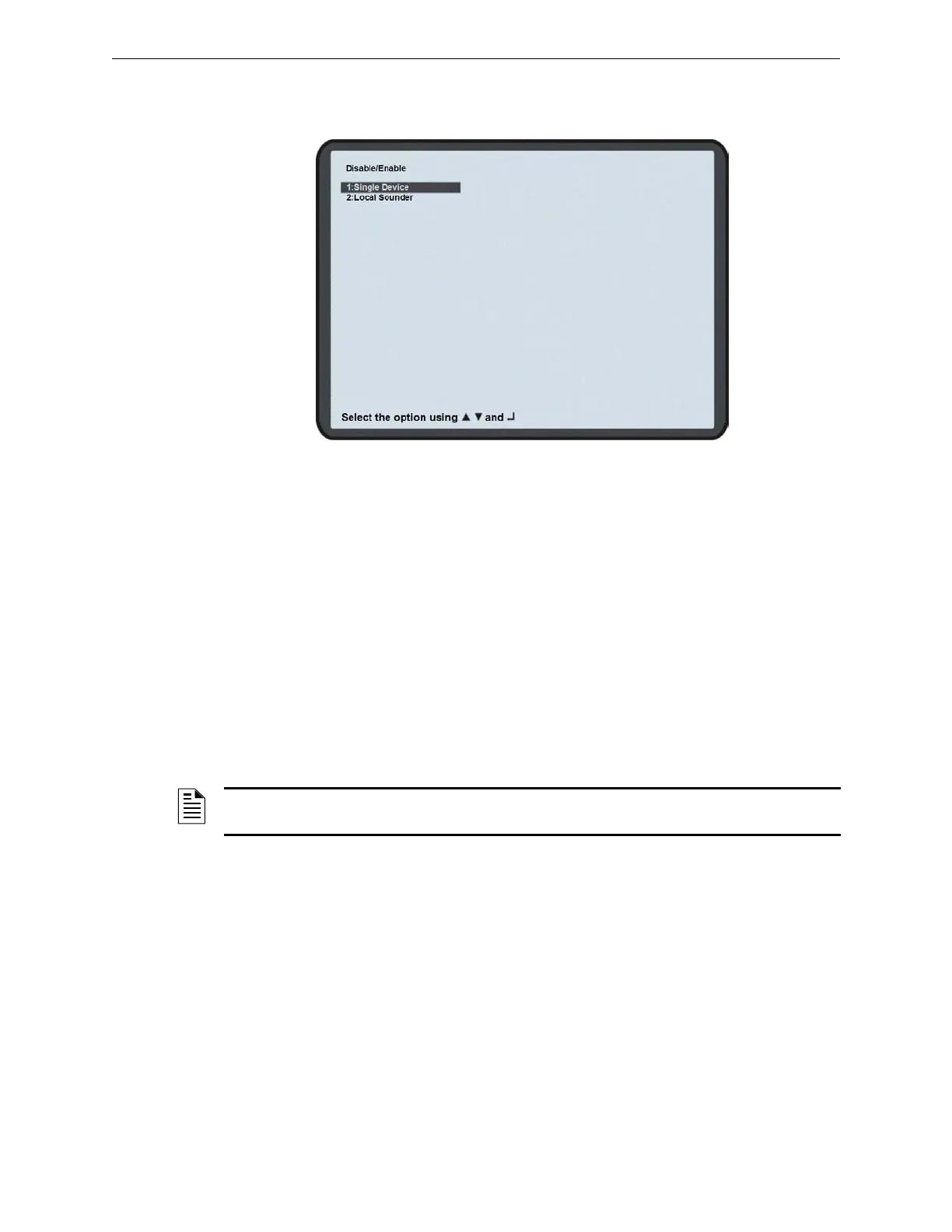

Figure 7.37 Disable/Enable

NOTE: Only 10 devices can be tested at the same time. The test mode can be manually

removed from the same menu.
