66 H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015
Parts of the H-S81-HS System I/O modules
Standard Connection Diagrams
Function Termination with Flat Cable Termination with Multi-conductor Cable
Output 1
+ 1
S81-T8001-1
1
White
S81/CCT1
- 22
Brown
Output 2
+ 33
Green
- 44
Yellow
Output 3
+ 55
Gray
- 66
Pink
Output 4
+ 77
Blue
- 88
Red
Output 5
+ 9
Black
- 10
Violet
Output 6
+ 11
Gray/Pink
- 12
Red/Blue
Output 7
+ 13
White/Green
- 14
Brown/Green
Output 8
+ 15
White/Yellow
- 16
Yellow/Brown

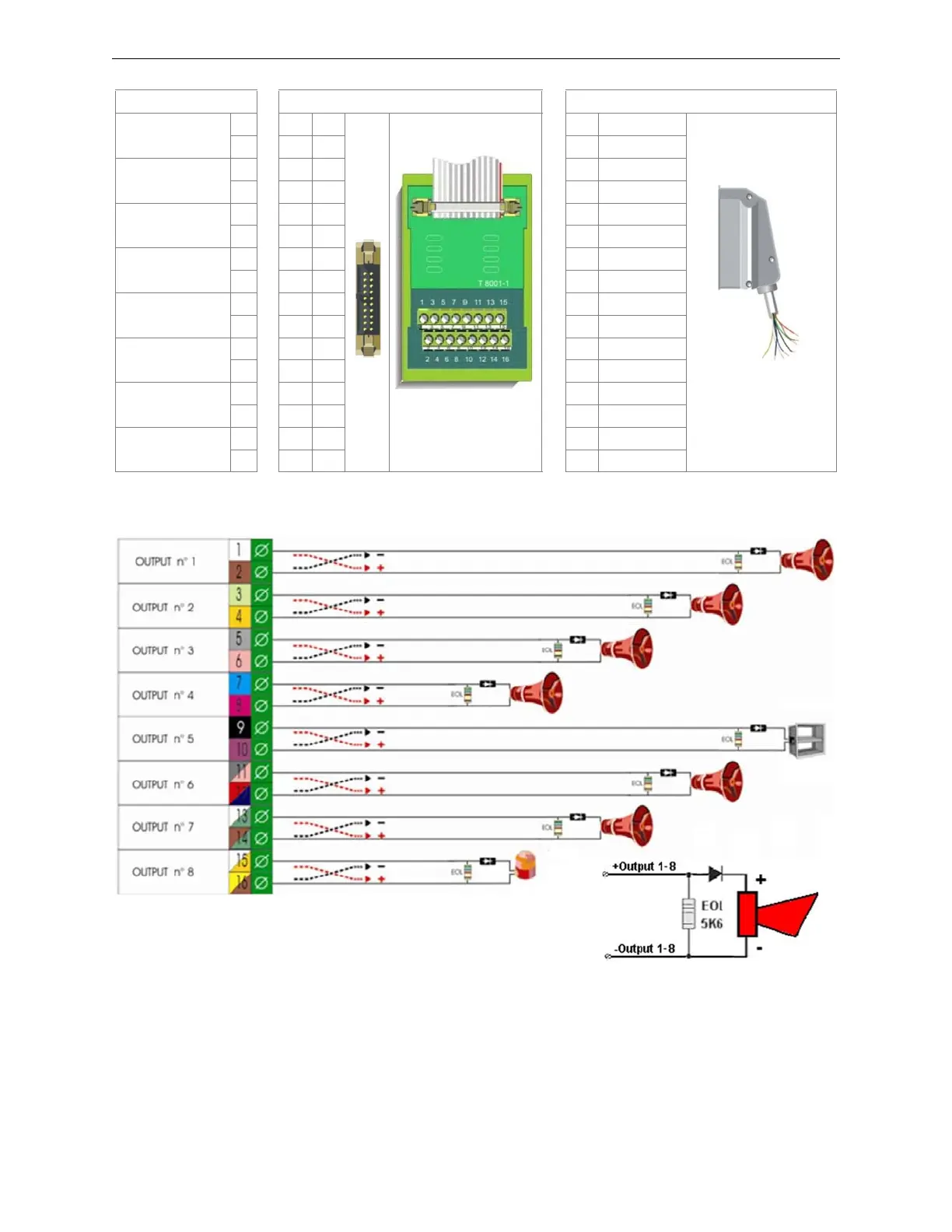

Figure 2.30 Field Connections
Figure 2.31 Standard Connection Diagram
