148 H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015
Operating Instructions Event Displaying
7.11.2 Trouble Condition
When a trouble condition is detected, the control panel carries out the following operations:
• The intermittent local buzzer activates.
• The General Trouble LED flashes.
• The Device Trouble LED flashes (only if the trouble affects a device).
• The System Trouble LED flashes (only if the trouble affects the system).
• The Sounder Trouble LED flashes (only if the trouble affects a Sounder type output).
The General Trouble and/or System Trouble relays deactivate, according to the type of trouble.
Press Esc to view the details of the trouble.

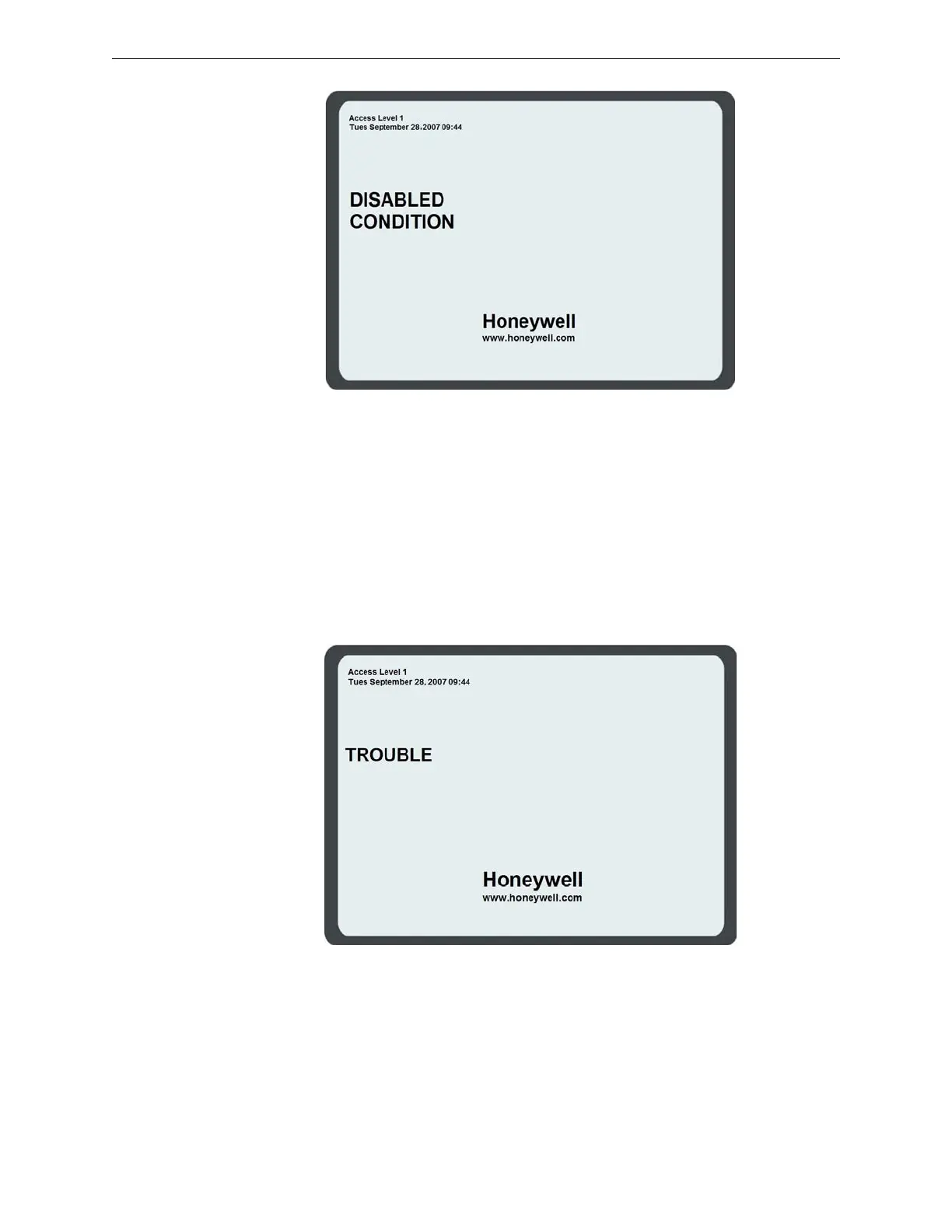

Figure 7.26 Disabled Condition
Figure 7.27 Trouble Condition
