Honeywell H-S81-HS User Manual

H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015 45
I/O modules Parts of the H-S81-HS System

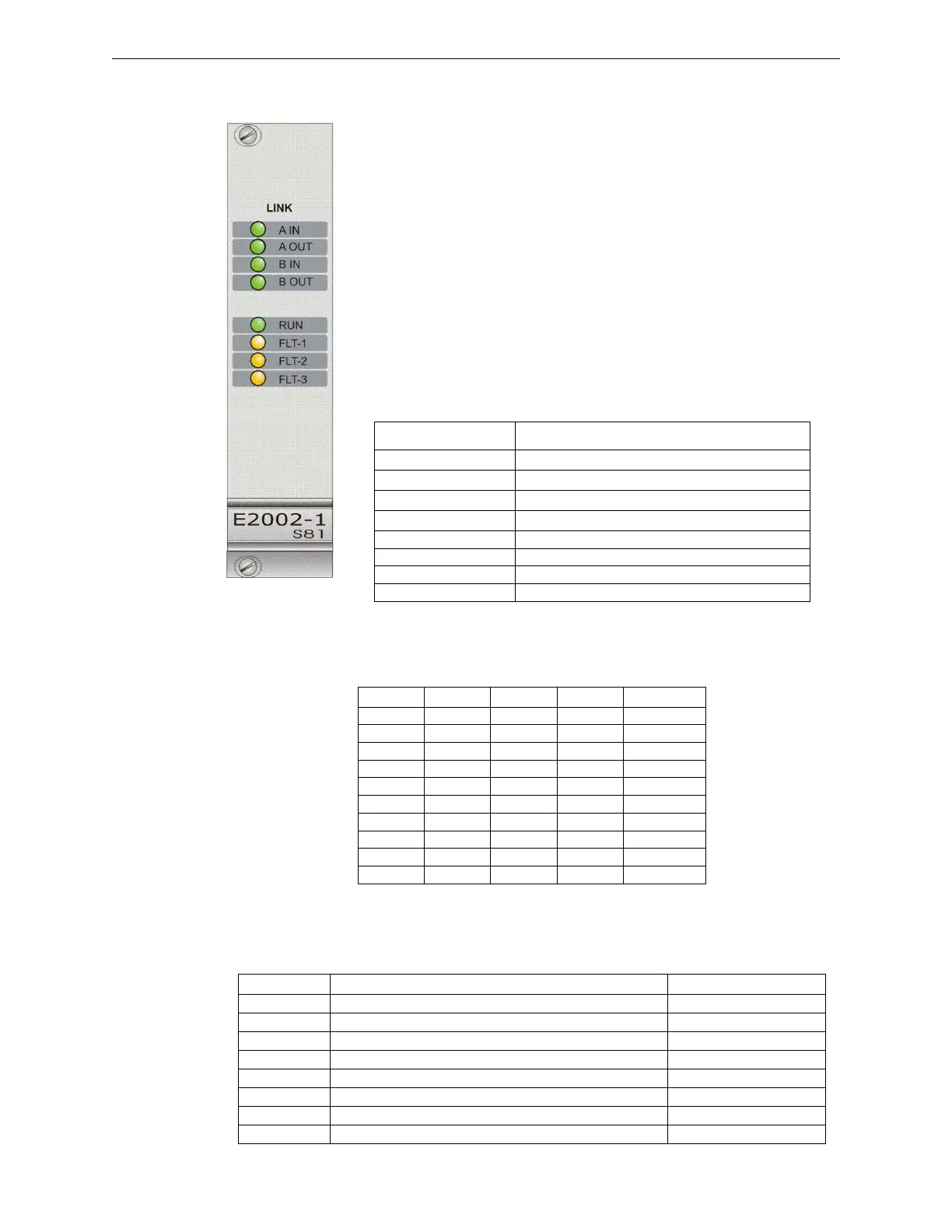

2.3.3 S81-E2002-1
Description
This module is the rack controller. It allows the information exchange between
CPUs and rack modules. It controls 13 point-to-point links to rack modules and
two closed loop links for the communication to the two CPUs.
Technical features
Status Indications
Module front panel includes eight LEDs with the following functions:
Configuration
Modules are configured by means of a 4-way dip switch used to set the number of racks from 1 to
10, according to the table below:
2.4 I/O modules
The following I/O module types are available:
• Safety rating: applicable up to SIL3
• Supply voltage: 22-29VDC
• Quiescent current: 20mA
• Operating temperature: -5 - 50 °C
• Storage temperature: -30 - 80 °C
• Maximum humidity: 95% (RH) non-condensing
LED Indication
A-IN Link (green) Steady on when CPU-0 loop input link is present
A-OUT Link (green) Steady on when CPU-0 loop output link is present
B-IN Link (green) Steady on when CPU-1 loop input link is present
B-OUT Link (green) Steady on when CPU-1 loop output link is present
Run (green) Flashes during operation
FLT1 (yellow) Steady on in case of local interrupt
FLT2 (yellow) Steady on in case of CPU-A loop interrupt
FLT3 (yellow) Steady on in case of CPU-B loop interrupt
SW1-1 SW1-2 SW1-3 SW1-4 Rack No.
OFFOFFOFFOFF 1
ON OFF OFF OFF 2
OFF ON OFF OFF 3
ON ON OFF OFF 4
OFF OFF ON OFF 5
ON OFF ON OFF 6
OFF ON ON OFF 7
ON ON ON OFF 8
OFF OFF OFF ON 9
ON OFF OFF ON 10
Part Number Description Notes
S81-F3002-1 8 monitored input module for conventional detectors Redundancy not possible
S81-F3002-2 8 monitored input module for conventional detectors Redundancy possible
S81-F4001-1 Module with 1 x 4-20mA analog input Redundancy not possible
S81-F4001-2 Module with 1 x 4-20mA analog input Redundancy possible
S81-F4002-1 Module with 2 4-20mA analog inputs Redundancy not possible
S81-F4002-2 Module with 2 4-20mA analog inputs Redundancy possible
S81-F4003-1 Module with 8 x 4-20mA analog inputs Redundancy not possible
S81-F4003-2 Module with 8 x 4-20mA analog inputs Redundancy possible
