Parts of the H-S81-HS System I/O modules
2.4.15 S81-F7006-1
Description
Communication module with Modbus RTU Master/slave protocol. It features
two outputs providing independent connections: a RS485 Half Duplex connec-
tion, and a RS232 connection. It controls the following Modbus variables:
• 512 Boolean input variables (32 16-bit words)
• 512 Boolean output variables (32 16-bit words)
• 1024 16-bit analog variables.
• Analog variables report the values of the 4-20mA analog modules, S81-F4001,
S81-F4002, S81-F4003 types.
Technical Features
Status Indications

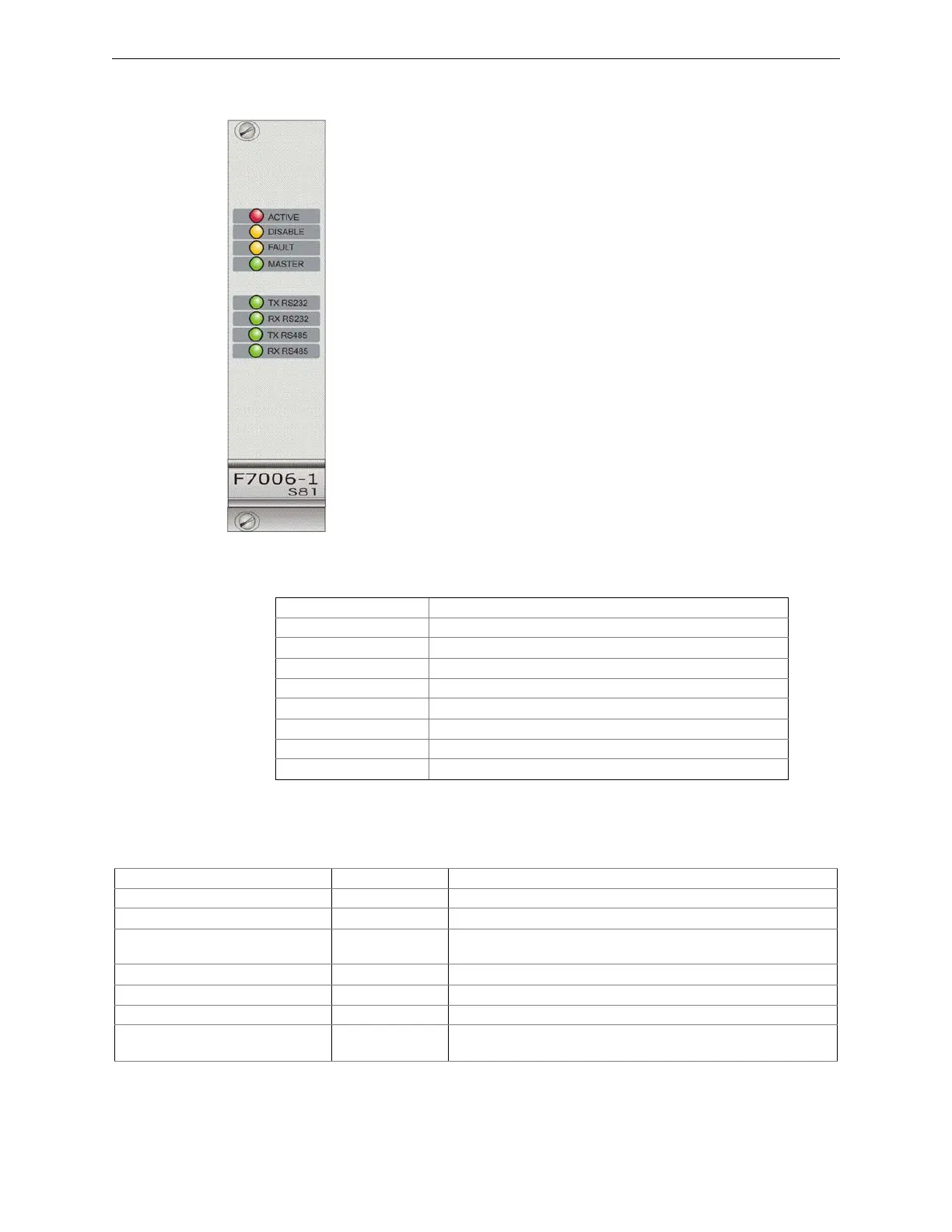

The front panel includes 8 LEDs with the following functions:
Configuration
By using the ProS81 configuration program, the following parameters can be set for each virtual
channel:
• Redundancy: No
• Operating modes: Master/Slave.
• Interface: N°1 RS232 + N°1 RS485
• Supply voltage: 22-29VDC
• Quiescent current: 14mA
• Operating temperature: -5 - 50 °C
• Storage temperature: -30 - 80 °C
• Maximum humidity: 95% (RH) non-condensing
• Hot swap capability: yes
LED Indication
ACTIVE (Red LED) Steady on if an input variable is active
DISABLED (Yellow LED) Steady on if an input or output variable is disabled
FAULT (Yellow LED) Flashing in case of communication fault. (Master mode only)
MASTER (Green LED) Steady on in Master operating mode.
TX RS232 (Green LED) It lights up every time data are transmitted on the RS232 port
RX RS232 (Green LED) It lights up every time data are received on the RS232 port
TX RS485 (Green LED) It lights up every time data are transmitted on the RS45 port.
RX RS485 (Green LED) It lights up every time data are received on the RS45 port.
Parameter Type Mode
Operating mode Sensors Latching-NO, Latching-NC, Non-Latching-NO, Non-Latching-NC
Type of indication Sensors Fire, Supervisory, Gas, Trouble, Hidden, Buzzer Only
Operating mode Actuator Continuous-Normally Energized, Continuous-Normally De-energized,
Intermittent, Pulsing
Timing Actuator 1 to 15 seconds (only for pulsing and intermittent modes)
Output type Actuators Normal / Sounder
Enable/Disable status export to Hosts Sensors/Actuators No, TCP1, TCP2, RS232
Enable/Disable commands from
Hosts on the channel
Sensors/Actuators No, TCP1, TCP2, RS232
