140 H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015
Operating Instructions Operations at Access Level 3
7.9 Operations at Access Level 3
By entering level 3 password, preceded by the prefix 1, the main menu shown below is accessed.
In this stage, in addition to the same options of access level 2, the Configuration menu options are
possible.
7.10 Configuration
By selecting this option from the main menu, the configuration stage is accessed, as shown in the
picture below.
7.10.1 4-20mA Modules
By selecting this option, the thresholds of S81-F4001, S81-F4002 and S81-F4003 type modules
can be changed. First of all, enter the rack number and the position of the module whose thresholds
are to be changed. If the module does not exist, or is of a different type, an error message is dis-
played. In case of S81-F4002 or S81-F4003 type modules, first of all enter the number of the chan-
nel whose thresholds are to be changed. Then, the screen below will be displayed:

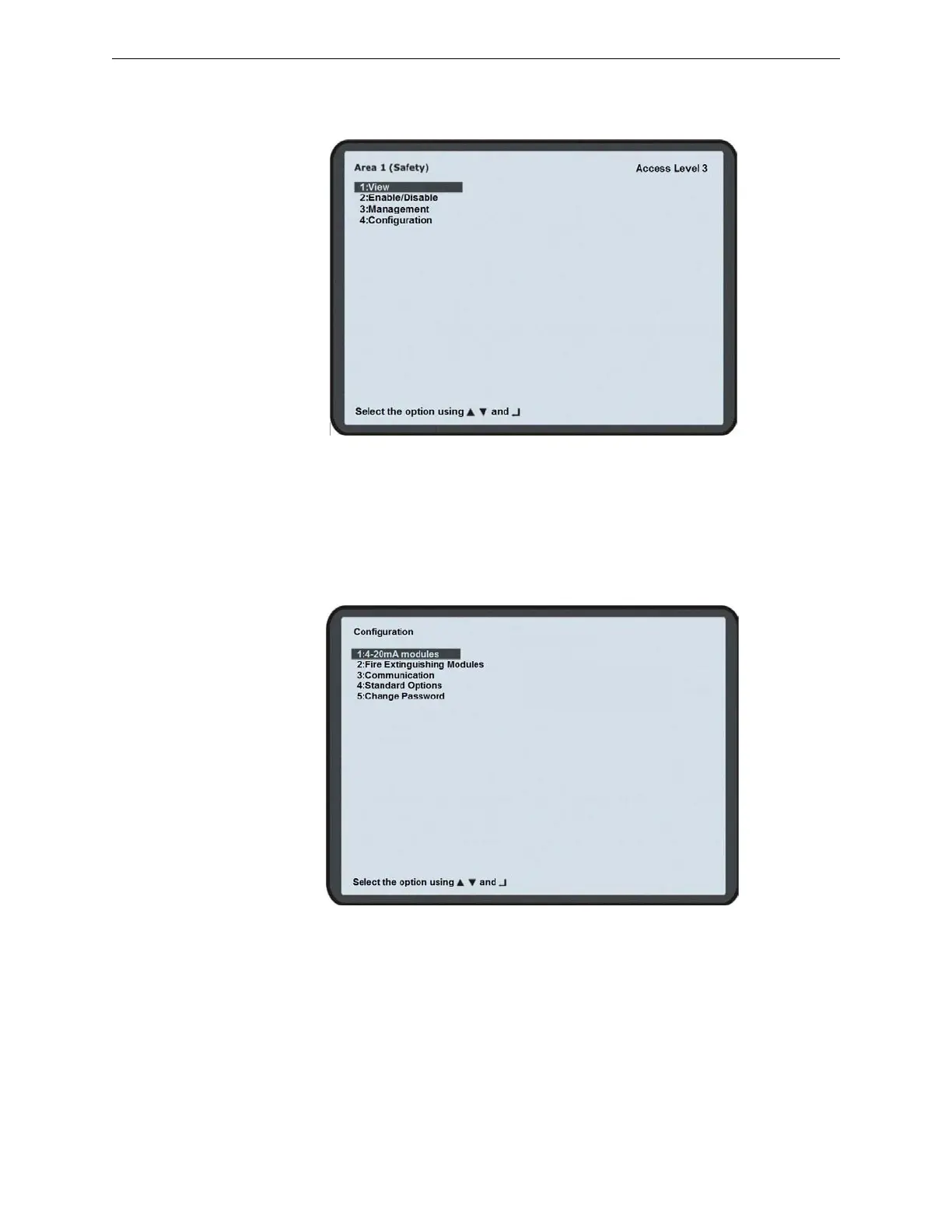

Figure 7.14 Main Menu at Access Level 3
Figure 7.15 Configuration
