H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015 69
I/O modules Parts of the H-S81-HS System

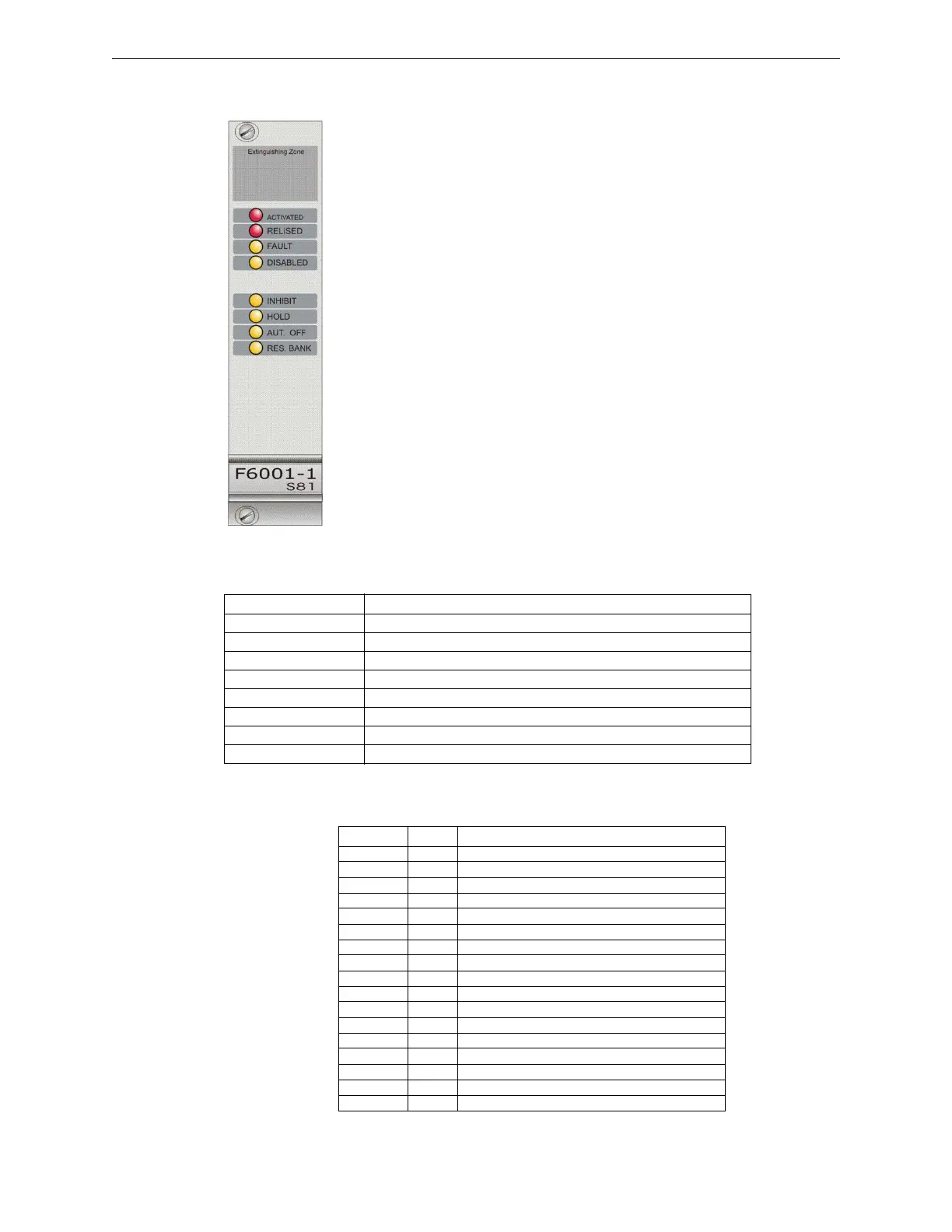

2.4.9 S81-F6001-1
Description
This module is used for controlling the logic and indications of a certain fire
extinguishing zone in compliance with the requirements of the EN12094-1 stan-
dard. It controls ten output variables and seven input variables. It controls some
fire extinguishing system typical logics, such as discharge delay and reset inhibit
time. This module checks the status of the inputs and outputs physically located
on other modules by using virtual channels.
Technical Features
Status Indications
The front panel includes 8 status LEDs with the following functions:
Virtual channels
The module controls the following variables:
• Safety rating: applicable up to SIL3
• Redundancy: Yes
• Max. output current 250mA
• Automatic output protection: No
• Supply voltage: 22-29VDC
• Quiescent current: 10mA
• Operating temperature: -5 - 50 °C
• Storage temperature: -30 - 80 °C
• Maximum humidity: 95% (RH) non-condensing
• Hot swap capability: yes
LED Indication
Activated (Red LED) Steady on under “activated” condition. It goes out in case of reset.
Relised (Red LED) Steady on under “released” condition. It goes out in case of reset.
Fault (Yellow LED) Flashing in case of trouble in the fire extinguishing zone.
Disabled (Yellow LED) Steady on if a fire extinguishing zone is disabled
Inhibit (Yellow LED) Steady on under “inhibit” condition.
Hold (Yellow LED) Steady on under “Hold” condition.
Aut. Off (Yellow LED) Steady on under “Automatic exclusion” condition
Res. Bank (Yellow LED) Steady on when the reserve bank is selected
Variable Type Description
V1 In “Activated” condition
V2 In Main primary discharge
V3 In Reserve primary discharge
V4 In Main secondary discharge
V5 In Reserve secondary discharge
V6 In Intermittent audible indications
V7 In Continuous audible indications
V1 Out Manual activation
V2 Out Automatic activation
V3 Out Automatic exclusion
V4 Out Emergency hold
V5 Out Release inhibition
V6 Out Reserve bank
V7 Out Secondary discharge
V8 Out Triggered system
V9 Out General trouble
V10 Out General disable
