82 H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015
Parts of the H-S81-HS System I/O modules
2.4.14 S81-F7010-1
Description
Control module for addressable devices using System Sensor protocol. This
module can control up to a maximum of 188 fire detection modules including:
smoke, heat, combined detectors, alarm buttons, control modules, visual and
audible alarm devices.
Technical Features
Status Indications

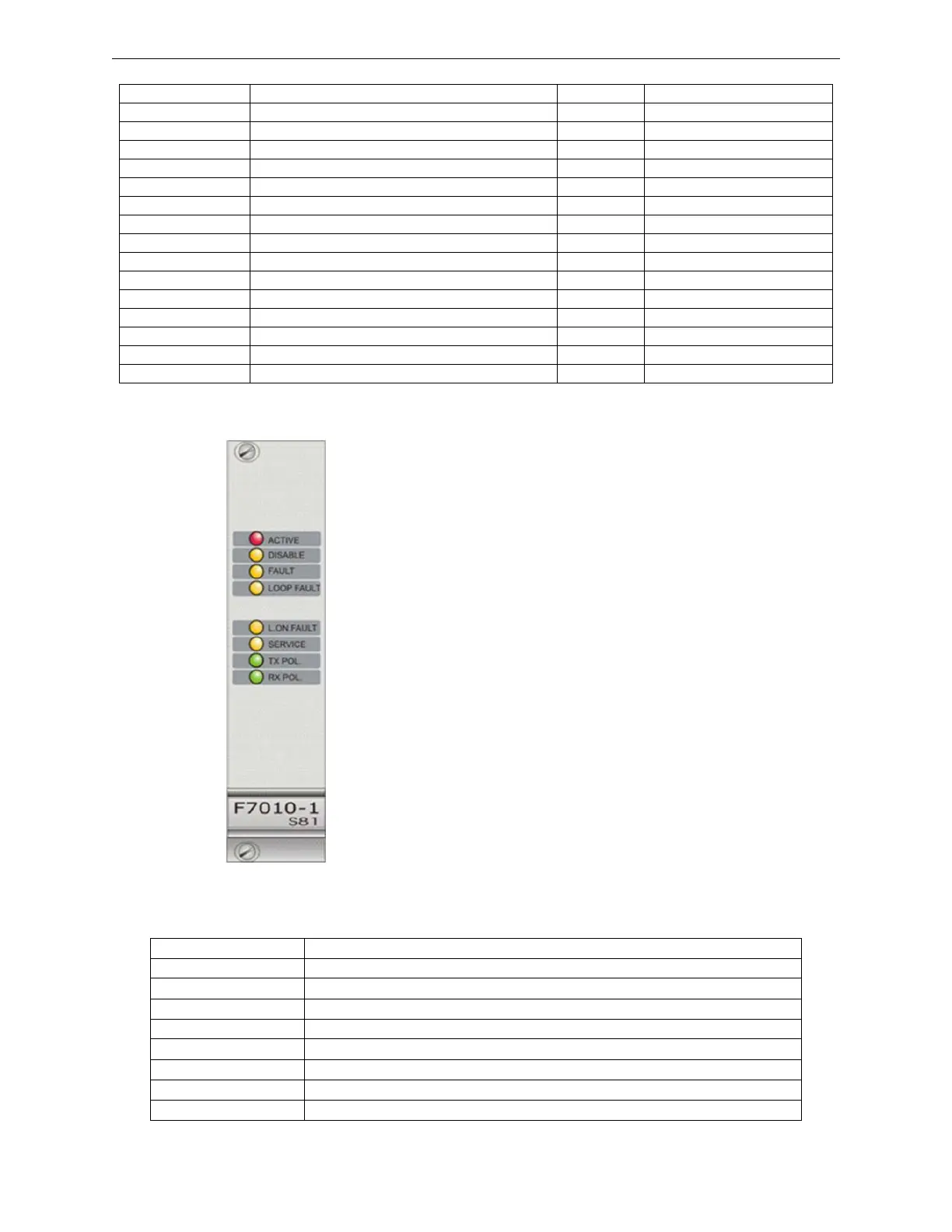

The front panel includes 8 LEDs with the following functions:
58000-400MAR Discovery Marine Heat detector D-HD Powered by the loop
58000-700MAR Discovery Marine Multi-sensor detector D-HSM Powered by the loop
58100-940MAR Discovery Marine Manual Call Point D-MCP Powered by the loop
58100-975MAR Discovery Marine W.P. Manual Call Point D-MCP Powered by the loop
58000-600 Discovery Optical smoke detector D-OSD Powered by the loop
58000-500 Discovery Ionization smoke detector D-ISD Powered by the loop
58000-700 Discovery Multi-sensor detector D-HSM Powered by the loop
58000-300 Discovery Carbon Monoxide detector D-CMD Powered by the loop
58000-305 Discovery Heat/Carbon Monoxide multi-sensor D-HCM Powered by the loop
58000-400 Discovery Heat detector D-HD Powered by the loop
58100-908 Discovery Manual call Point Red D-MCP Powered by the loop
58100-950 Discovery W.P. Manual call Point Red D-MCP Powered by the loop
45681-393 Discovery Sounder/Beacon Base D-SBB Powered by the loop
58000-005 Discovery Open Area Sounder/Beacon D-ASB Powered by the loop
55000-295 Intelligent Dual IR Flame detector ATEX X-FD Powered by the loop
55000-021 Intelligent Triple IR Flame detector ATEX X-FD Powered by the loop
• Redundancy: No
• Operating modes: Configuration via software.
• Number of devices per loop: 99 modules & 99 sensors
• Loop maximum current: 500mA
• Supply voltage: 22-29VDC
• Quiescent current: 39mA
• Operating temperature: -5 - 50 °C
• Storage temperature: -30 - 80 °C
• Maximum humidity: 95% (RH) non-condensing
• Hot swap capability: yes
LED Indication
Active (Red LED) Steady on if an input is under alarmed/activated condition
Disabled (Yellow LED) Steady on if an input or an output is disabled
Fault (Yellow LED) Flashing in case of Fault condition
Loop Fault (Yellow LED) Flashing in case of loop short circuit or open loop
Log on Fault (Yellow LED) Flashing in case of difference between the detected devices and the programmed ones.
Service (Yellow LED) Flashing in case of in case of smoke detectors with dirty lenses
TX Pol. (Green LED) It lights up every time data are transmitted from the module to loop devices.
RX Pol. (Green LED) It lights up every time data from loop devices are received
