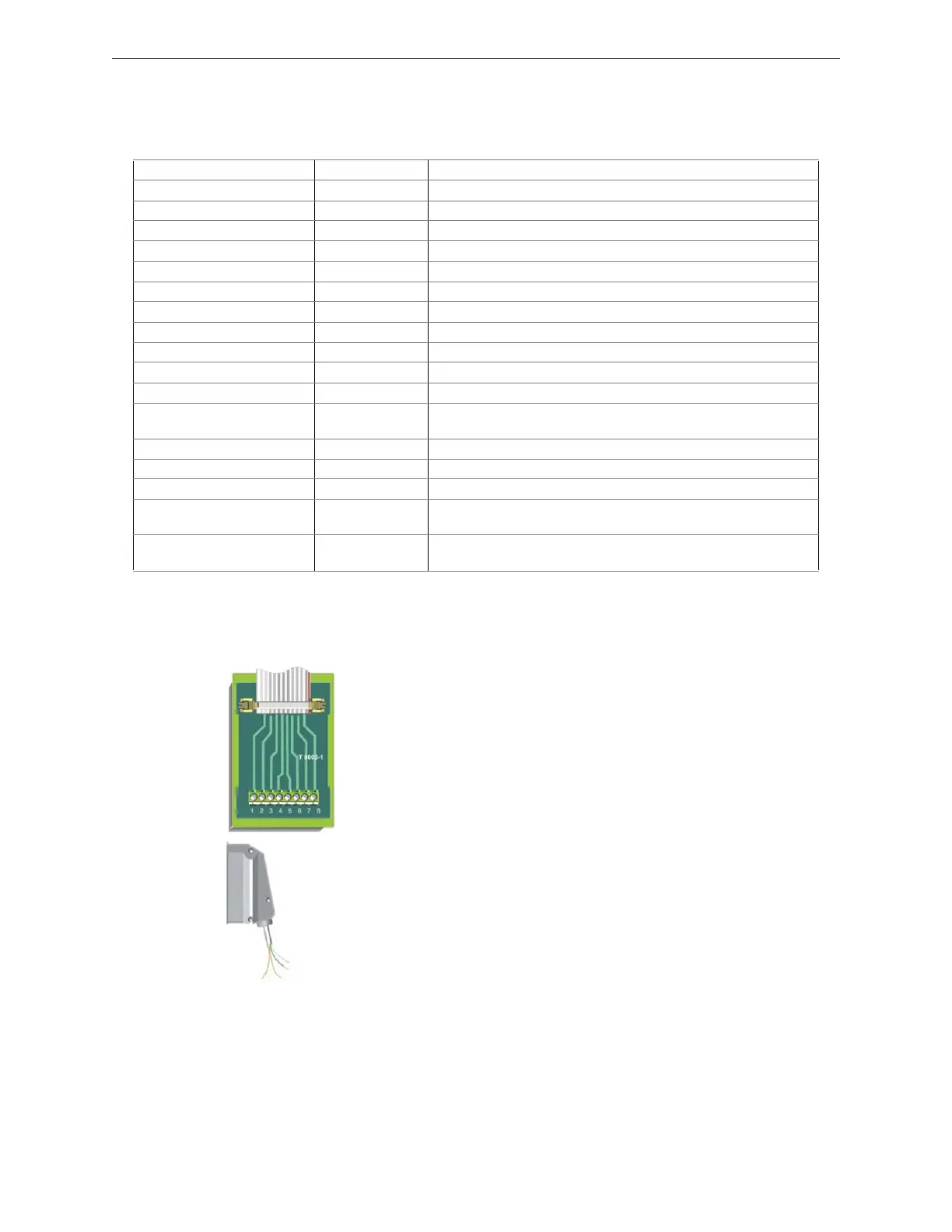

H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015 83
I/O modules Parts of the H-S81-HS System
Configuration
By using the configuration program ProS81, the following parameters can be set for each point of
the single devices, according to the relevant type:
Field Connections
The module can be connected to field terminal block by using a flat or a multi-conductor cable,
depending on the used bus type.
S81-E2001-1 Bus
The module is connected to a S81-T8003-1 termination module with 8 termi-
nals with a 20-way flat cable.
S81-E2001-2 Bus
The module is connected to the field terminal block with the S81-CCT4 4-conductor
multi-polar cable.
Parameter Type Mode
Operating mode Sensors Latching-NO, Latching-NC, Non-Latching-NO, Non-Latching-NC
Sensitivity Sensors 5 or 9 sensitivity levels to be selected
Polling priority for call points Sensors Normal, High
Unit of measure of the channel Sensors Ppm, %LEL, %O2, mA, °C, RH, V, bar, db, rpm
Zero Point Sensors -500 - 500
End of scale Sensors -500 - 500
Pre-alarm threshold Sensors -500 - 500
Alarm threshold Sensors -500 - 500
Lower trouble threshold Sensors 1.0 - 3.8mA
Type of indication Sensors Fire, Supervisory, Gas, Trouble, Hidden, Buzzer Only
Automatic alarm reset Sensors Yes/No
Operating mode Actuators Continuous-Normally Energized, Continuous-Normally De-energized,
Intermittent, Pulsing
Timing Actuators 1 to 15 seconds (only for pulsing and intermittent modes)
Output type Actuators Normal / Sounder
Polling LED Sensors/Actuators Enable/Disable LED lighting up during polling
Enable/Disable status export to
Hosts
Sensors/Actuators No, TCP1, TCP2, RS232
Enable/Disable commands
from Hosts on the channel
Sensors/Actuators No, TCP1, TCP2, RS232
