I/O modules Parts of the H-S81-HS System
Configuration

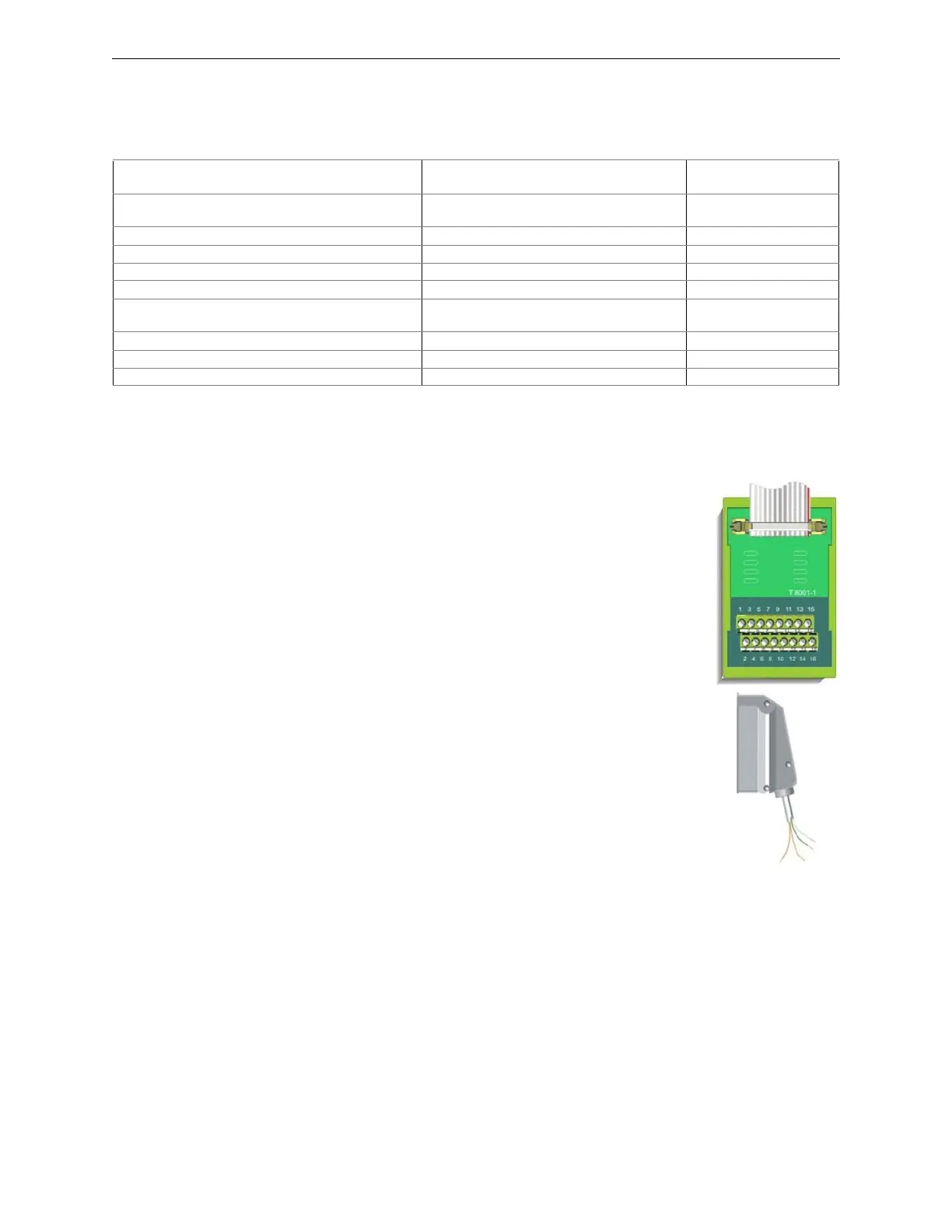

By using the configuration program ProS81, the following parameters can be set for each input
channel:
Field Connection
The module can be connected to field terminal block by using a flat or a multi-conductor cable,
depending on the used bus type.
 S81-E2001-1 Bus
The module is connected to the S81-T8001-1 termination module with 16
terminals by using a 20-way flat cable.
 S81-E2001-2 Bus
The module is connected to the field terminal block by the S81-CCT6 16-
conductor multi-polar cable. For S81-F3002-2 module redundant connec-
tion, use the S81-CCT1R cable.
Function Allowed values in SAFETY mode
Allowed values in
SECURITY mode
Operating mode: Latching-NO, Latching-NC, Non-Latching-NO,
Non-Latching-NC,
Latching-NC
Alarm verification function Yes/No Disabled
Pre-alarm threshold 10-250 Fixed threshold
Alarm threshold 10-250 Fixed threshold
Channel status with line short circuit Trouble / Alarm Tampering
Type of indication Fire, Supervisory, Gas, Trouble, Hidden,
Buzzer Only
Burglar Alarm, Hidden
Automatic alarm reset Yes/No N0
Enable/Disable channel status export to Hosts No, TCP1, TCP2, RS232 No, TCP1, TCP2, RS232
Enable/Disable commands from Hosts on the channel No, TCP1, TCP2, RS232 No, TCP1, TCP2, RS232
