68 H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015
Parts of the H-S81-HS System I/O modules
Field connections
The module can be connected to field terminal block by using only a multi-conductor cable with
the S81-E2001-2 bus.
 S81-E2001-2 Bus
The module is connected to the field terminal block with the S81-CCT4 8-conductor
multi-polar cable. For S81-F5004-2 module redundant connection, use the
S81-CCT4R cable.
Function Termination with Multi-conductor Cable
Output 1 + 1 White
Output 2 + 2 Brown
Output 3 + 3 Green
Output 4 + 4 Yellow

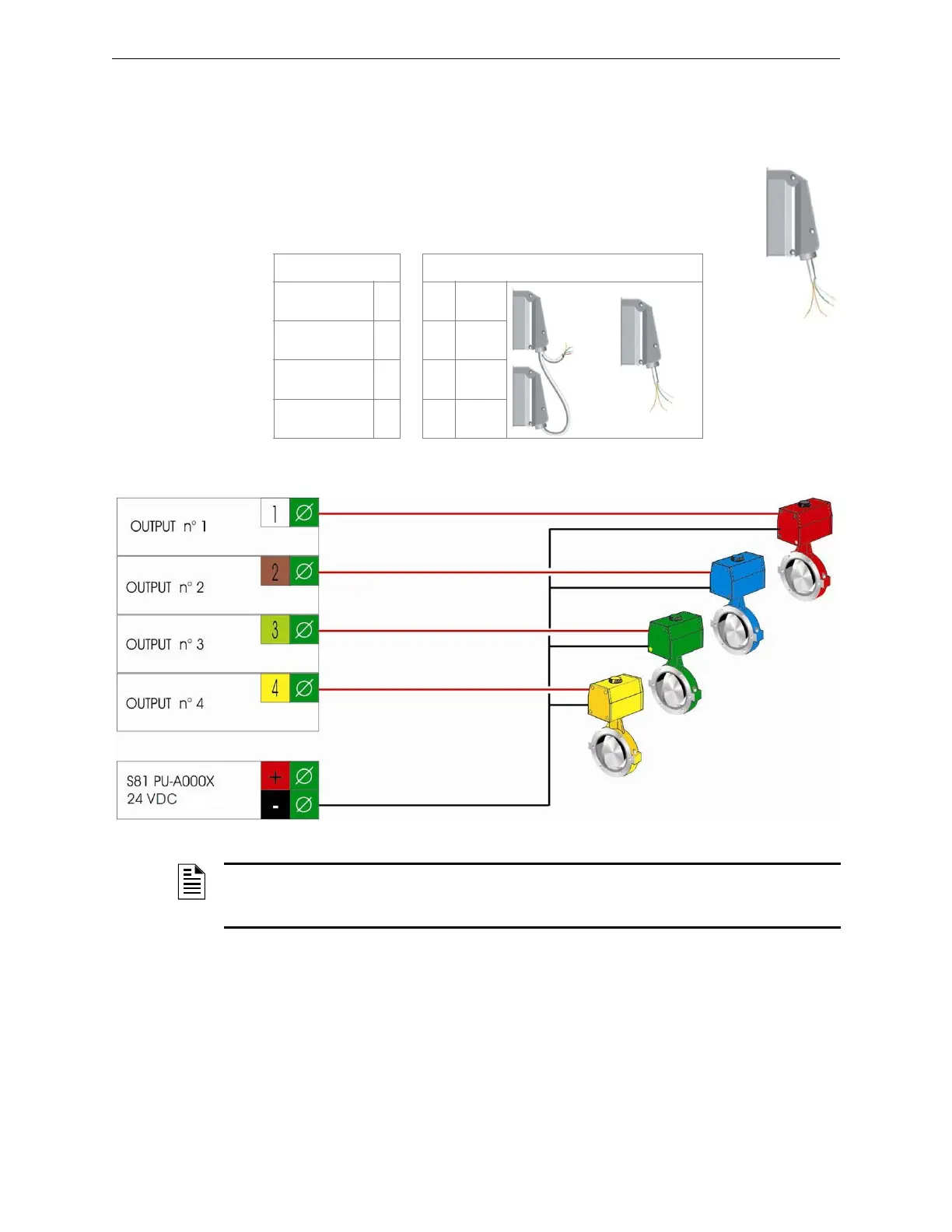

Figure 2.32 Field Connections
Figure 2.33 Field Connections
NOTE: The module can control resistive or inductive loads with a maximum current of 2A.
Should the module be used for controlling filament lamps, the maximum load power shall not
exceed 10W.
