106 H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015
Installation Positioning the H-S81-HS-1/10R Control Panel

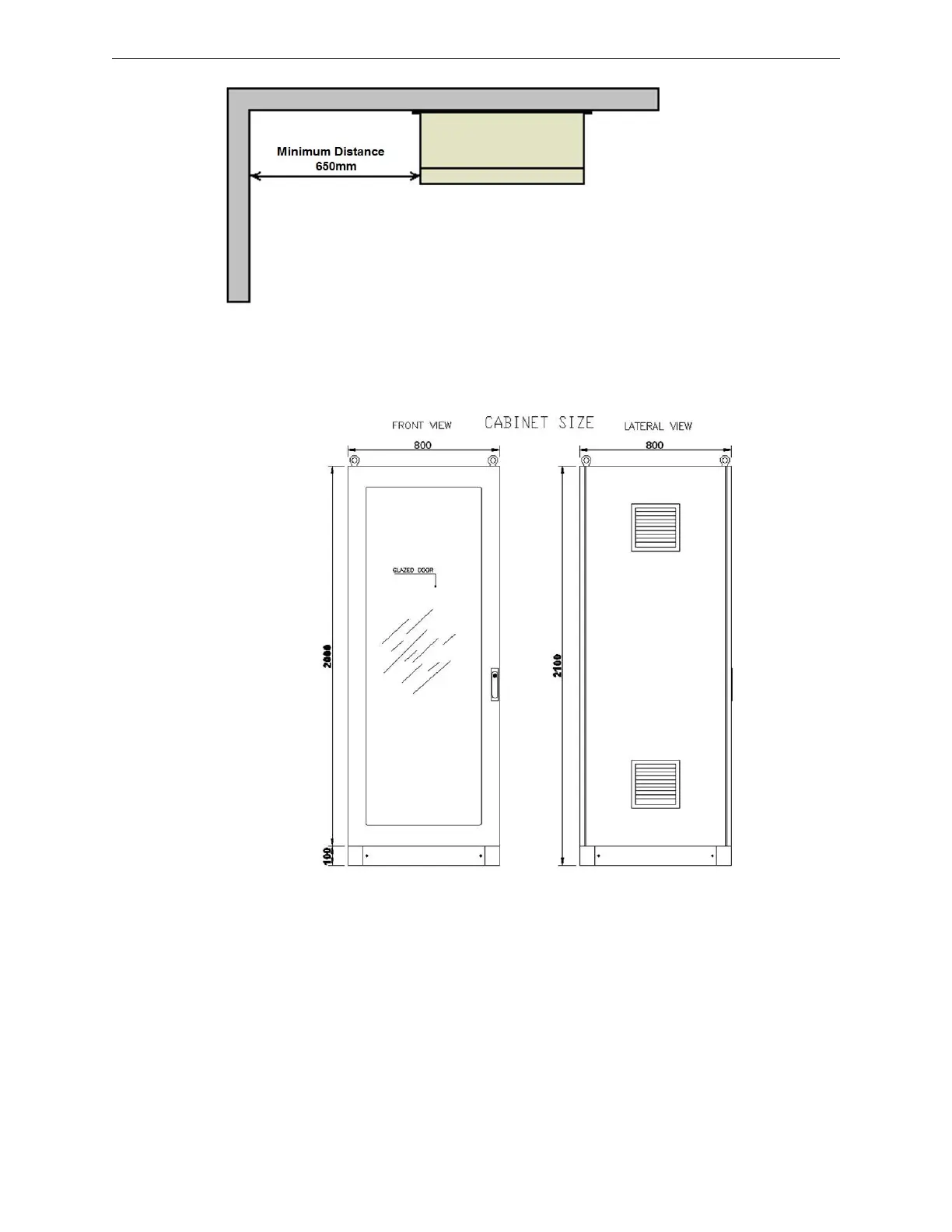

Furthermore, should the
steelwork be fixed next to
a corner wall, the mini-
mum distance from the lat-
ter must be 650 mm, so to
allow for front panel open-
ing. Moreover, the instal-
lation height must
guarantee display clear
visibility and easy access
by operators.
3.4 Positioning the H-S81-HS-1/10R Control Panel
The control panel must be located in an easily accessible place, well signaled and protected against
fire. Place the cabinet on a dead level floor after providing a suitable housing for cable entry.
Figure 3.2 Position of Steelwork
Figure 3.3 Ground-floor Steelwork
