I/O modules Parts of the H-S81-HS System
Field Connections
The module can be connected to field terminal block by using a flat or a multi-conductor cable,
depending on the used bus type.
 S81-E2001-1 Bus
Thanks to this bus, the module can be terminated by using a S81-T8003-1 termination module with
8 terminals or a S81-T8006-1 8-relay module with a 20-way flat cable.
 S81-T8006-1
If this termination type is used, there will be eight relay outputs with one 4A SPDT contact to be
used exclusively for connecting circuits operating with SELV voltage. This solution will guarantee
coil monitoring for the eight relays.
 S81-E2001-2 Bus
The module is connected to the field terminal block with the S81-CCT3 8-conductor
multi-polar cable. For S81-F5001-2 module redundant connection, use the S81-
CCT3R cable.
Function Termination with Flat Cable Termination with Multi-conductor Cable
Output 1 + ∅ 1
S81-T8003-1
1
White
S81/CCT3R
Output 2 + ∅ 22
Brown
Output 3 + ∅ 33
Green
Output 4 + ∅ 44
Yellow
Output 5 + ∅ 55
Gray
Output 6 + ∅ 66
Pink
Output 7 + ∅ 77
Blue
Output 8 + ∅ 88
Red

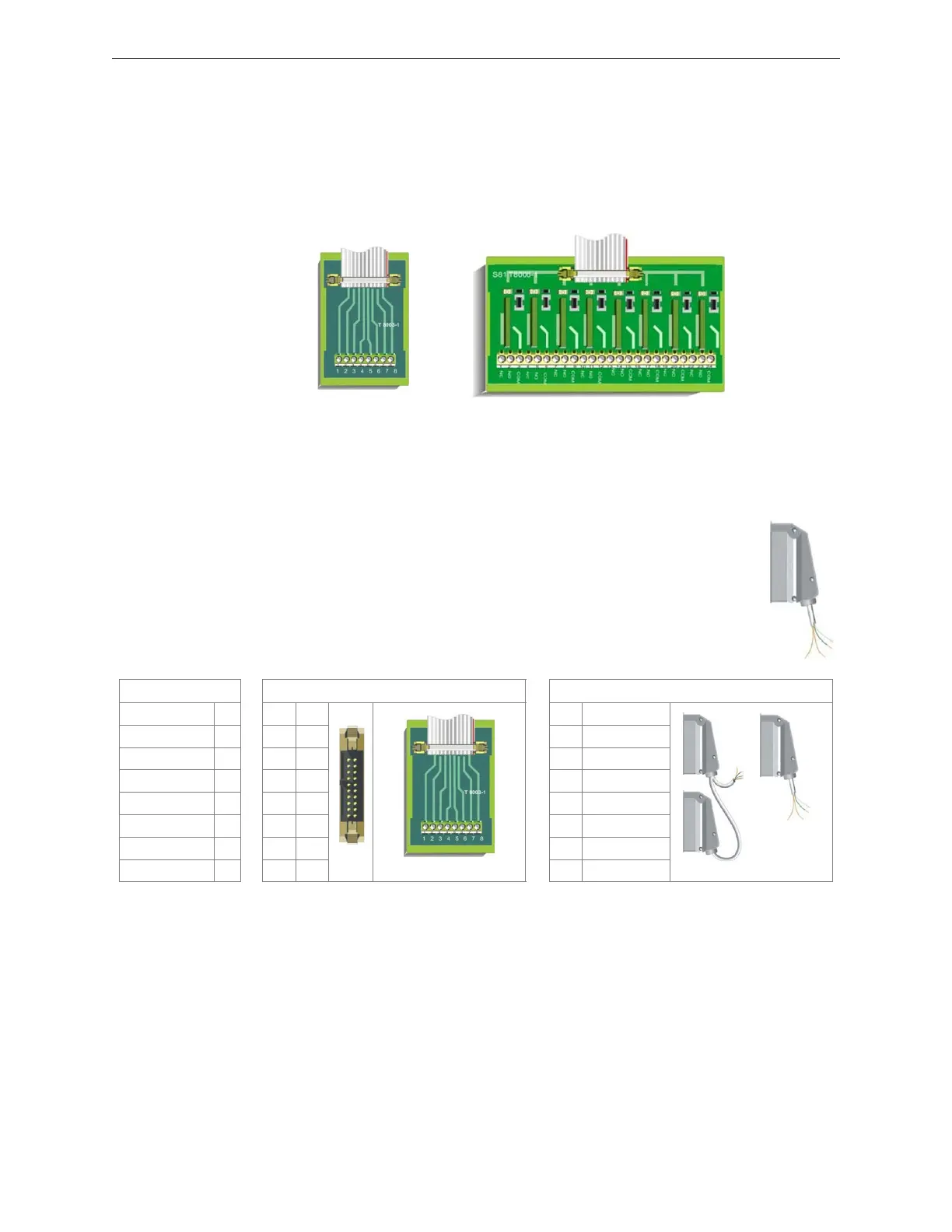

Figure 2.27 Field Connections
S81/CCT3
