Honeywell H-S81-HS - Configuration; Field Connections

H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015 63
I/O modules Parts of the H-S81-HS System
Configuration
By using the configuration program ProS81, the following parameters can be set for each output
channel:

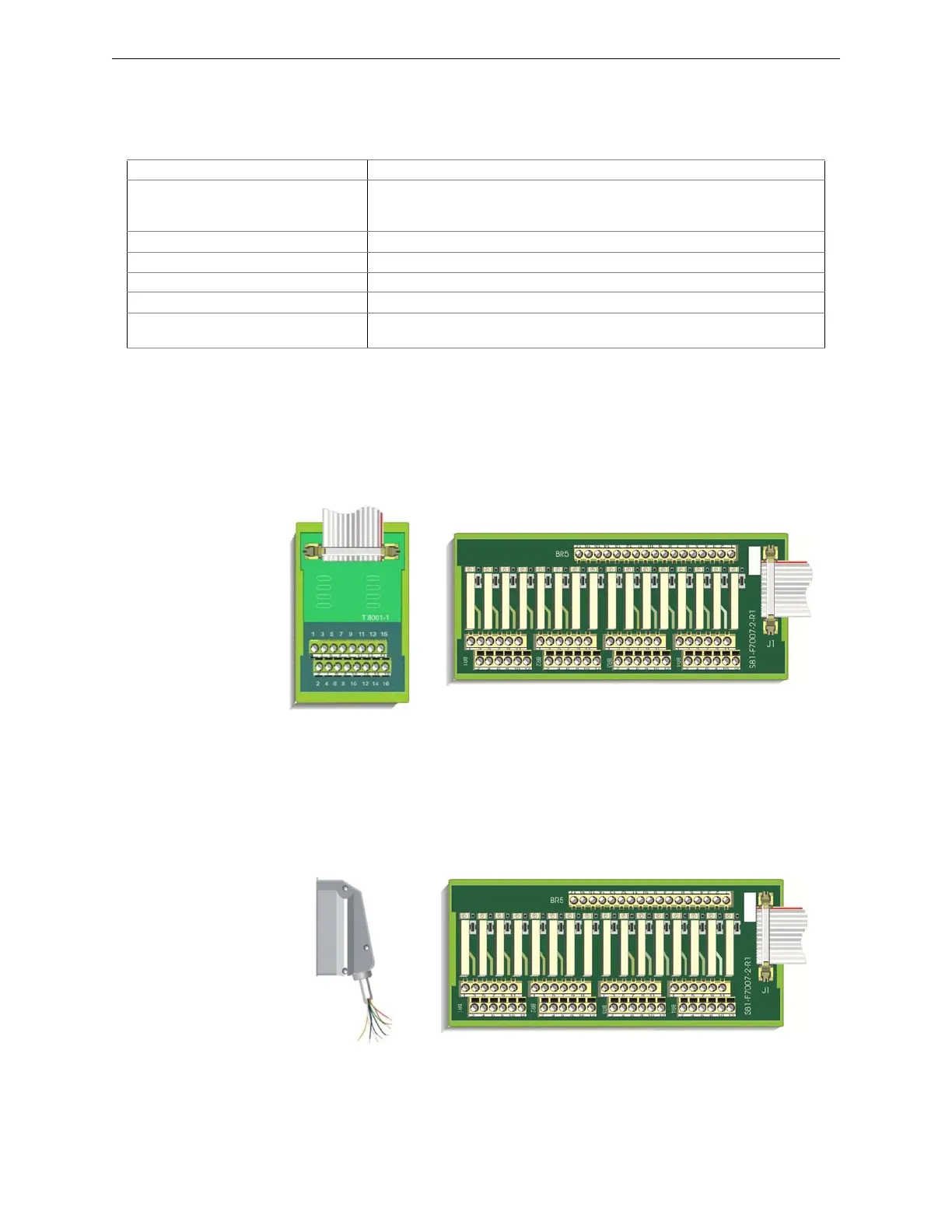

Field Connections
The module can be connected to field terminal block by using a flat or a multi-conductor cable,
depending on the used bus type.
 S81-E2001-1 Bus
Thanks to this bus, the module can be terminated by using a S81-T8001-1 termination module with
16 terminals or a S81-T8007-2 16-relay module.
 S81-T8007-2
When this termination type is used, there will be sixteen relay outputs with one 4A SPDT contact to
be used exclusively for connecting circuits operating with SELV voltage.
 S81-E2001-2 Bus
Thanks to this bus, the module can be terminated by using a S81-CCT1 16-conductor multi-polar
cable or a S81-T8007-2 16-relay module.
Function Mode
Operating mode Continuous-Normally Energized, Continuous-Normally de-energized, Intermittent,
Pulsing-1, Pulsing-2, ISA-1A Alarm Sequence, Delayed on activation, Delayed on
enabling, Delayed on deactivation
Timing 1 to 255 seconds/minutes (only for pulsing and intermittent modes)
Output type Normal / Sounder
Output status in case of CPU fault Frozen in the last status / Off
Enable/Disable status export to Hosts No, TCP1, TCP2, RS232
Enable/Disable commands from Hosts on
the channel
No, TCP1, TCP2, RS232
