Parts of the H-S81-HS System Termination modules
2.5.3 S81-T8005-1
Description
20-terminal termination module. It is used as an adapter with
S81-E2001-2 type buses to connect the S81-F5002-1 modules to the
S81-T8007-1 termination modules by means of a S81-CCT-1 cable.
Technical Features

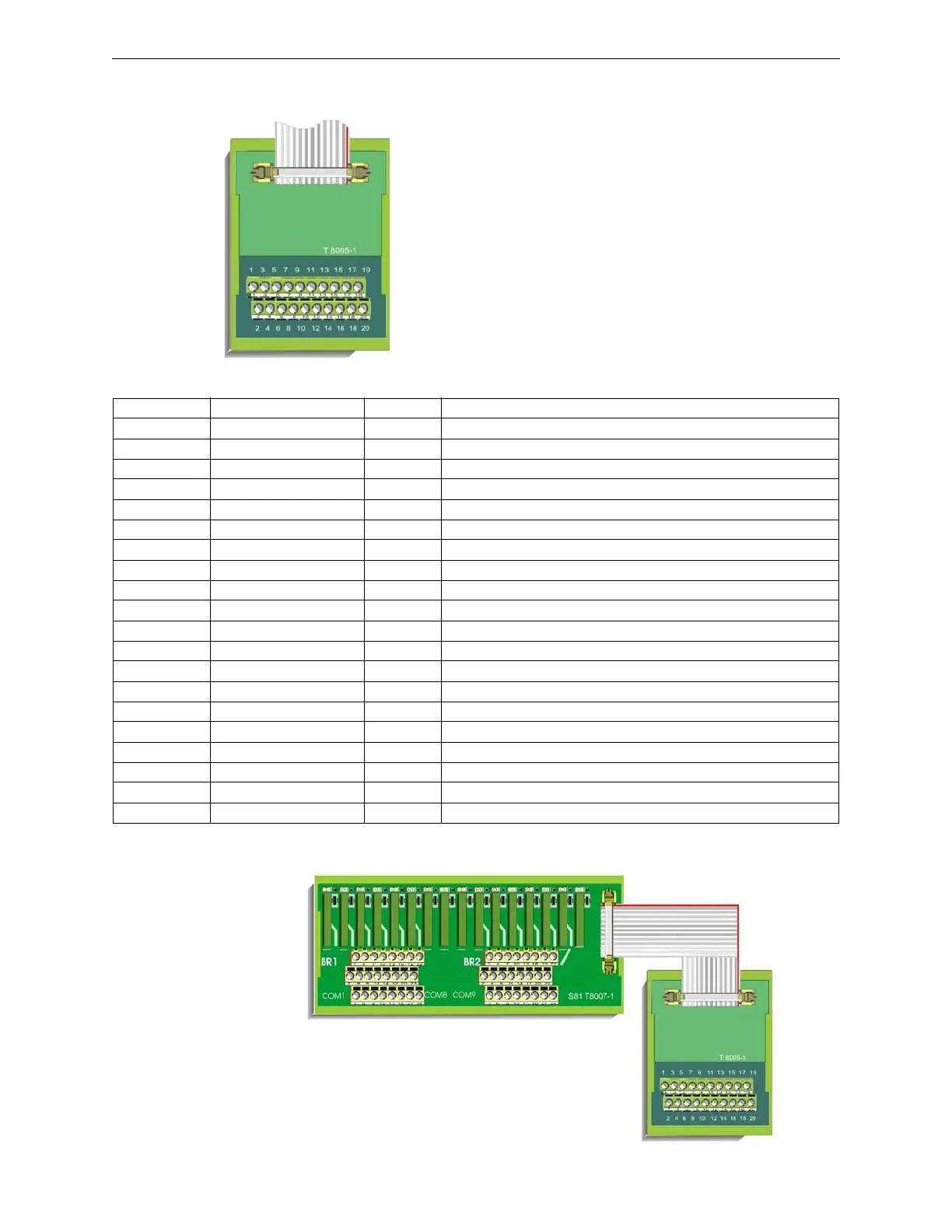

Interconnection Between S81-CCT1 Cable and S81-T8007-1 Module
The S81-T8007-2 module can be connected directly to the S81-E2001-2 bus with cable S81-CCT1
without the need for the S81-T8005-1 interconnection module.
• Number of terminals: 20
• Assembly: on DIN bar
• Dimensions: W 68 x H 77 x D 50 mm
Terminal S81-CCT-1 Wire Relay Notes
1 Not used
2 Not used
3 White K1 Connect to the white wire of cable S81-CCT1
4 Brown K2 Connect to the brown wire of cable S81-CCT1
5 Green K3 Connect to the green wire of cable S81-CCT1
6 Yellow K4 Connect to the yellow wire of cable S81-CCT1
7 Gray K5 Connect to the gray wire of cable S81-CCT1
8 Pink K6 Connect to the pink wire of cable S81-CCT1
9 Blue K7 Connect to the blue wire of cable S81-CCT1
10 Red K8 Connect to the red wire of cable S81-CCT1
11 Black K9 Connect to the black wire of cable S81-CCT1
12 Violet K10 Connect to the violet wire of cable S81-CCT1
13 Gray/Pink K11 Connect to the gray/pink wire of cable S81-CCT1
14 Red/Blue K12 Connect to the red/blue wire of cable S81-CCT1
15 White/Green K13 Connect to the white/green wire of cable S81-CCT1
16 Brown/Green K14 Connect to the brown/green wire of cable S81-CCT1
17 White/Yellow K15 Connect to the white/yellow wire of cable S81-CCT1
18 Yellow/Brown K16 Connect to the yellow/brown wire of cable S81-CCT1
19 Connect to +25V with a 200mA fuse
20 Not used
