Operating Instructions Configuration
TCP-IP
By selecting this option, a sub-menu will be accessed where the communication parameters of the
TCP/IP protocol can be configured, as shown in the picture below:
In order to change the parameters use the Arrow and Number keys and confirm pressing Enter.
Press Esc to exit and go back to the previous menu. Below are the allowed field values and their
meaning:
Handshake To configure the handshake type of the serial communication. Allowed values are: Xon/Xoff,
Rts/Cts, and None.
Host To enable/disable Host TCP/IP communication protocol.
Com. Host To define if the TCP/IP Host is redundant or not.
Host Port To define the communication port used by the TCP/IP Host.
Network Port To define the communication port used by the TCP/IP Network protocol.
Panel IP To identify panel IP address.
Master 1 IP To identify Host-1 IP address.
Master 2 IP To identify Host-2 IP address.
Gateway IP To identify the IP address of the access point to geographical networks (VAN).
Netmask To define the range of a host in an IP network in order to reduce network traffic and simplify
the research of a certain IP address.

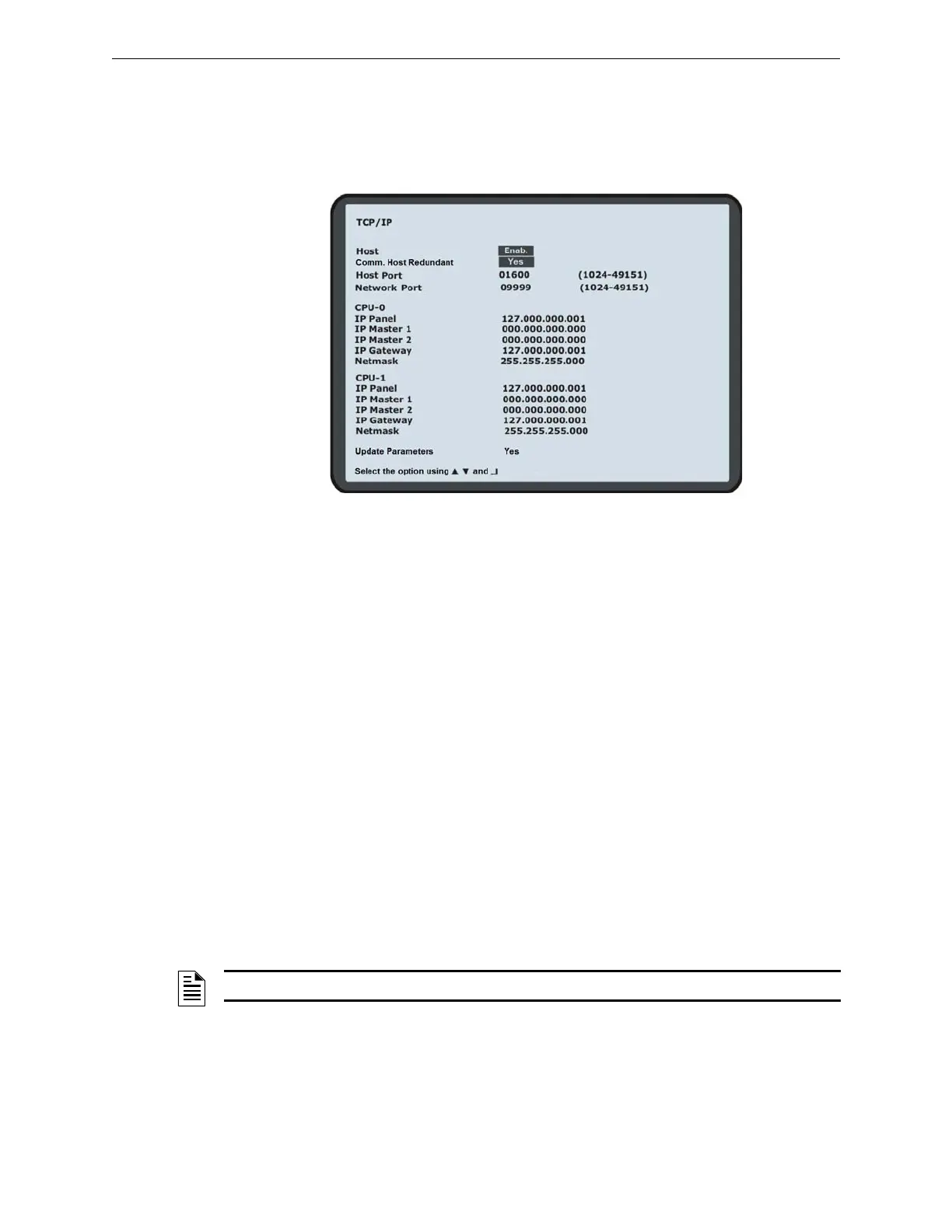

Figure 7.21 TCP/IP
NOTE: Values 127.000.000.001 and 000.000.000.000 mean that the relevant function is disabled.
