H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015 53
I/O modules Parts of the H-S81-HS System
2.4.3 S81-F4002-1 & S81-F4002-2
Description
Safety related module with 2 x 4-20mA analog inputs and two thresholds to be
programmed on the module through the operator cycle. The following transducer
types can be connected to this module: Explosion Sensors, Air Quality Sensors,
Oxygen Sensors, Temperature Sensors, 4-20mA General Sensors. The channel is
continuously tested during operation. The module features 4-20mA outputs that
provide the current value measured on the input. The analog value of each chan-
nel can be transferred to a DCS by means of the S81-F7006-1 Modbus RTU
module. This module can be duplicated for fault tolerant systems; in this case,
the two modules shall be placed on two adjacent racks in the same position. In
this configuration, the two detection lines are connected to both modules.
Technical Features
Status Indications

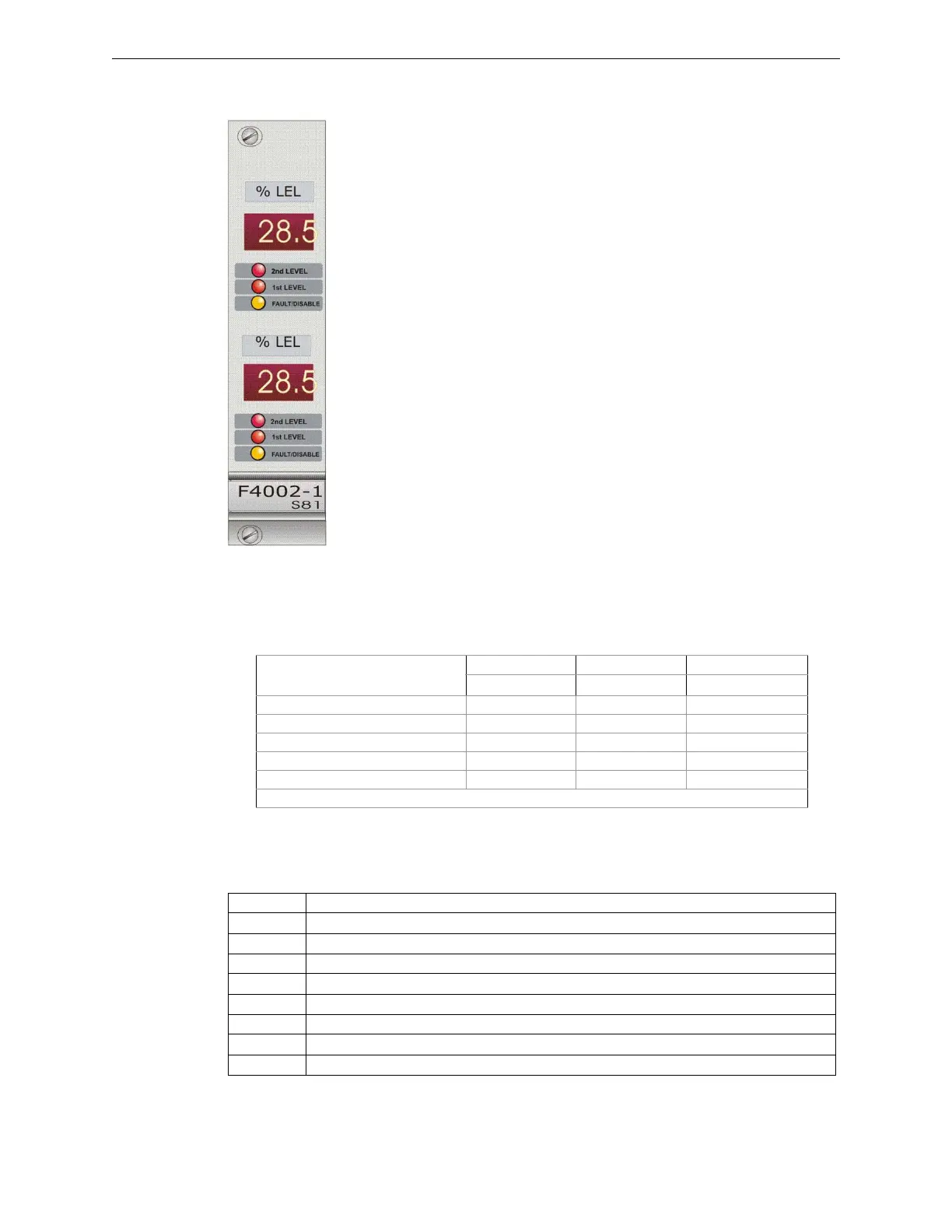

Module front panel includes three LEDs and a three-digit display for each channel.
Three-Digit Display
The three-digit display generally shows the measured value in the programmed format. Moreover,
it shows some fault codes according to the following table.
• Safety rating:
applicable up to SIL3
• Redundancy:
S81-F4002-2 model
• Alarm threshold:
2 programmable
• Channel test:
continuously tested
• Measuring range
0-24mA
• Line short circuit condition:
with current >23.5mA
• Supply voltage:
22-29VDC
• Quiescent current:
60mA
• Operating temperature:
-5 - 50 °C
• Storage temperature:
-30 - 80 °C
• Maximum humidity:
95% (RH) non-condensing
• Hot swap capability:
yes
Input channel status
2nd Level 1st Level Fault/Disabled
Red LED Red LED Yellow LED
Normal −− −
Disabled −− ⊗
Trouble −− ¬
Pre-alarm ⊗⊗ −
Alarm ⊗− −
Key to symbols: ⊗= steady on LED; − = LED off; ∅= flashing LED
No. Channel Status
--- Initialization stage
F00 Module/channel not configured
F01 Line opening (current <1mA)
F02 Over current (current >23.5mA)
F03 Internal test failed
Fx.x Device trouble
1
1 For current values lower than the set trouble threshold and exceeding 1mA, the display
will show the value of the measured current in mA preceded by letter F. Please refer to
the manual of the connected device for identifying the type of anomaly.
E00 Memory data error CRC
+/-999 Measured value
