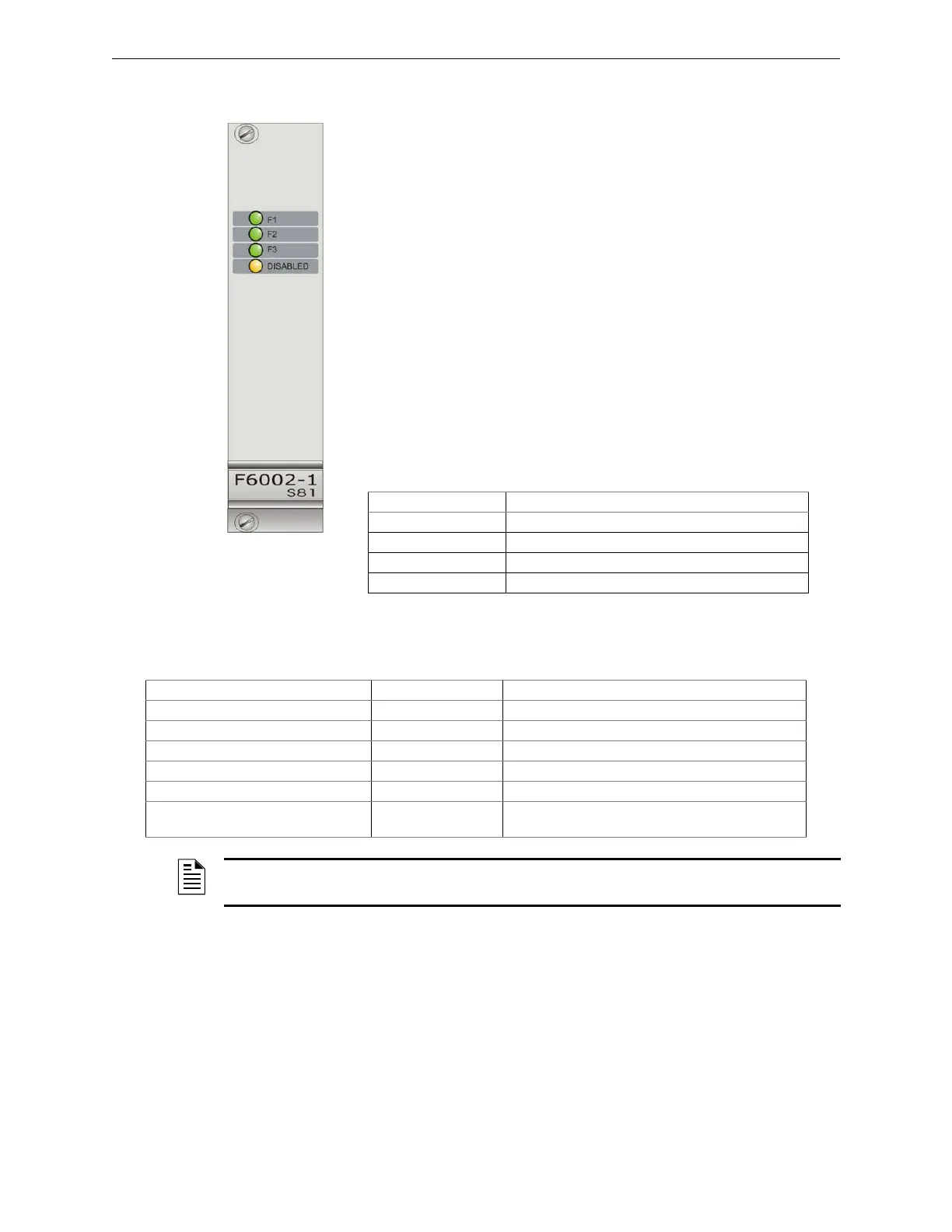

2.4.10 S81-F6002-1
Description
Logic module able to control 100 S-R flip flops, 100 toggles, and 100 timers.
Timers can be configured for two operating modes (Mode-A and Mode-B).
Technical Features
Status Indications
The front panel includes four LEDs with the following functions:
Configuration
By using the ProS81 configuration program, the following parameters can be set for each virtual
channel:
Logic Functions
The following time diagrams describe in detail the operation of the various logic functions of the
module.
• Redundancy: Yes
• Maximum number of S-R flip flops: 100
• Maximum number of logic Toggles: 100
• Maximum number of Timers: 100
• Timer range: 0-255 seconds
• Supply voltage: 22-29VDC
• Quiescent current: 9mA
• Operating temperature: -5 - 50 °C
• Storage temperature: -30 - 80 °C
• Maximum humidity: 95% (RH) non-condensing
• Hot swap capability: yes
LED Indication
F1 (Green LED) Steady on if a logic function input variable is active
F2 (Green LED) Steady on if a logic function output variable is active
F3 (Green LED) Flashing during Timer count.
Disabled (Yellow LED) Steady on if an input or output variable is disabled
Parameter Type Mode
Type Sensors Flip Flop / Toggle / Timer
Mode Sensors A / B (Only for Timer types)
Alarm delay Sensors 0-255 seconds (Only for Flip Flop and Timer types)
Type of indication Sensors Fire, Supervisory, Gas, Trouble, Hidden, Buzzer Only
Enable/Disable status export to Hosts Sensors/Actuators No, TCP1, TCP2, RS232
Enable/Disable commands from Hosts
on the channel
Sensors/Actuators No, TCP1, TCP2, RS232
NOTE: Logic function virtual inputs are set in output zones, whereas logic function virtual
outputs are set in zone sensors.
