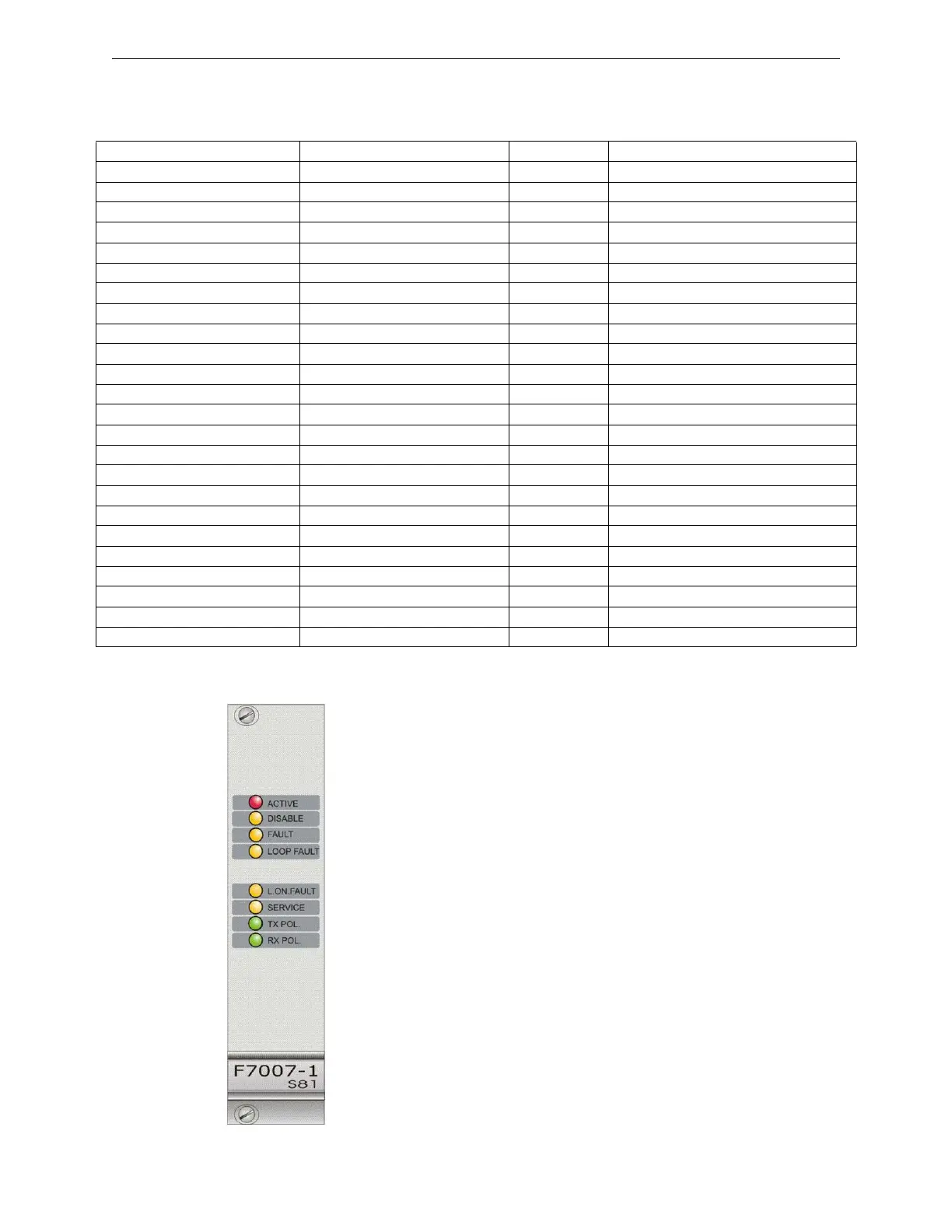

76 H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015
Parts of the H-S81-HS System I/O modules
Supported Devices
This module can control the following types of Hochiki Europe addressable devices:
2.4.12 S81-F7007-1
Description
Control module for addressable devices using the SSP protocol. The module is
able to control up to 127 addressable modules and is mainly used for controlling
technological signals. This type of module shall not be used to connect fire detec-
tion devices.
Technical Features
Part Number Description Type Pros-81 Notes
ALG-E, ALG-EN Photoelectric Smoke Sensor ALG-E Powered by the loop
ATG-E Heat Sensor ATG-E Powered by the loop
ACB-E, ACB-EW Multi Heat Sensor ACB-E Powered by the loop
AIE-E Ionization Smoke Sensor AIE-E Powered by the loop
ACA-E Smoke/Heat Multi Sensor ACA-E Powered by the loop
S81-Mod-An 4-20mA Analog Module CHQ-AN Requires external power supply
CHQ-CP, HCP-E, HCP-W Manual Call Point CHQ-CP Powered by the loop
CHQ-MZ,CHQ-SZM Single Zone Module CHQ-MZ Powered by the loop
CHQ-Z, CHQ-DZM Dual Zone Module CHQ-Z Requires external power supply
CHQ-SIM Single Input Module CHQ-SIM Powered by the loop
CHQ-S, CHQ-DIM Dual Input Module CHQ-S Powered by the loop
CHQ-R, CHQ-DRC Dual Relay Controller CHQ-R Requires external power supply
CHQ-B, CHQ-DSC Dual Sounder Controller CHQ-B Powered by the loop
CHQ-PCM Plant Control Module CHQ-PCM Powered by the loop
YBO-BS Base Sounder YBO-BS Powered by the loop
CHQ-BS Base Sounder (Old type) CHQ-BS Powered by the loop
YBO-BSB Base Sounder Beacon YBO-BSB Powered by the loop
CHQ-WS2 Wall Sounder CHQ-WS2 Powered by the loop
CHQ-WSB Wall Sounder Beacon CHQ-WSB Powered by the loop
CHQ-AB Addressable Beacon CHQ-AB Powered by the loop
CHQ-ARI Remote Indicator CHQ-ARI Powered by the loop
CHQ-POM Powered Output Module CHQ-POM Powered by the loop
CHQ-SOM Single Output Module CHQ-SOM Powered by the loop
FB-1 Fire Beam Detector FB-1 Powered by the loop
• Redundancy: No
• Number of devices per loop: 127
• Loop maximum current: 250mA
• Supply voltage: 22-29VDC
• Quiescent current: 70mA
• Operating temperature: -5 - 50 °C
• Storage temperature: -30 - 80 °C
• Maximum humidity: 95% (RH) non-condensing
• Hot swap capability: yes
