H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015 89
I/O modules Parts of the H-S81-HS System
2.4.16 S81-F7008-1
Description
This module, used together with S81-MOD-BIL cylinder weighing modules,
allows to monitor cylinder load status and to signal even the slightest extinguish-
ing gas leakage without delay.
Technical Features
Status Indications

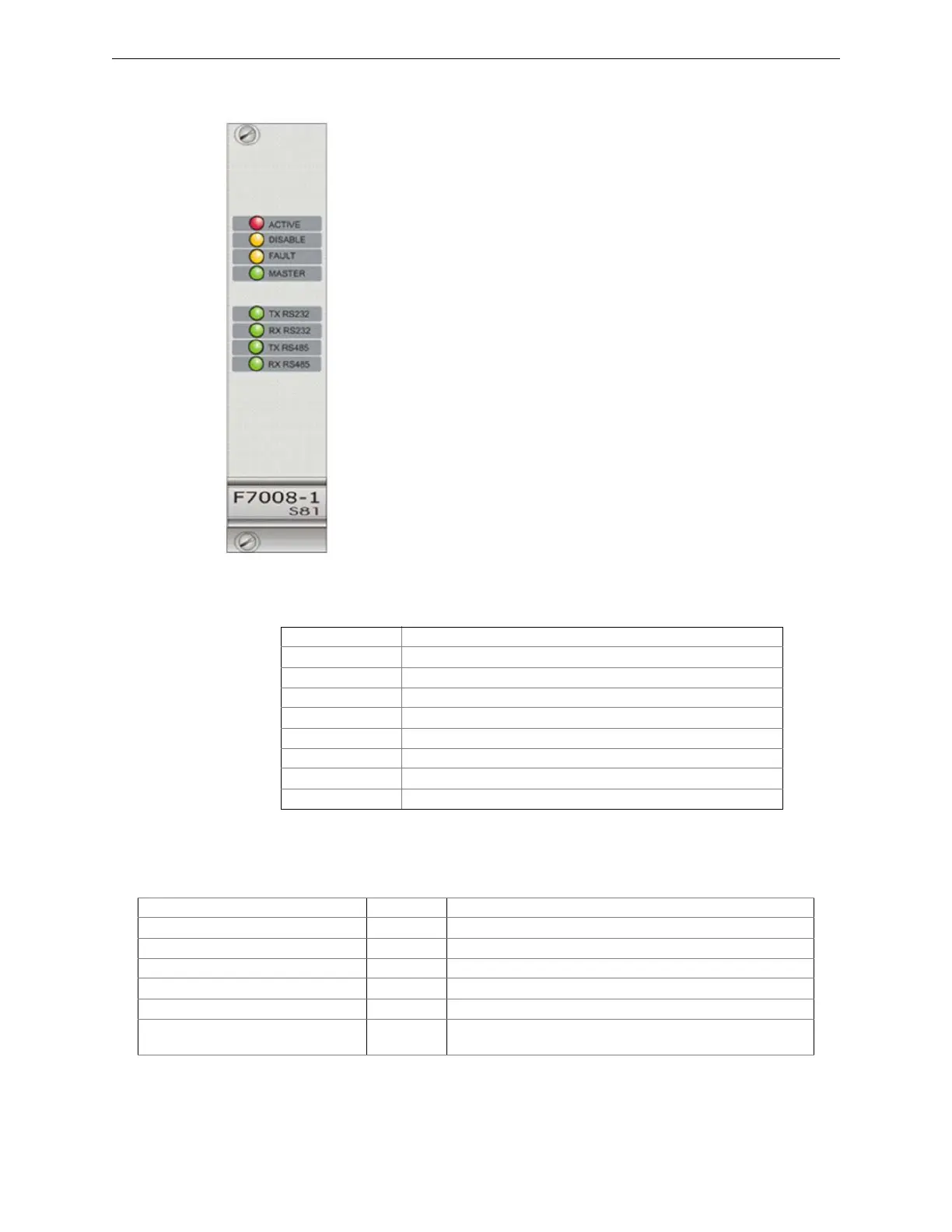

The front panel includes 8 LEDs with the following functions:
Configuration
Thanks to the configuration program ProS81, the following parameters can be set for each load
cell:
Field Connections
The module can be connected to field terminal block by using a flat or a multi-conductor cable,
depending on the used bus type.
• Redundancy: No
• Operating modes: Master/Slave.
• Interface to field devices: RS485
• Load cells on bus: 32
• Supply voltage: 22-29VDC
• Quiescent current: 14mA
• Operating temperature: -5 - 50 °C
• Storage temperature: -30 - 80 °C
• Maximum humidity: 95% (RH) non-condensing
• Hot swap capability: yes
LED Indication
ACTIVE Flashing in case of pre-alarm. On Steady in case of load cell alarm.
DISABLED Steady on if a load cell is disabled.
FAULT Flashing in case of load cell trouble
MASTER Not used (steady light)
TX RS232 Not used (off)
RX RS232 Not used (off)
TX RS485 It lights up every time data are transmitted on the RS45 port.
RX RS485 It lights up every time data are received on the RS45 port.
Parameter Type Mode
Operating mode Sensors Latching-NO, Latching-NC, Non-Latching-NO, Non-Latching-NC
Pre-alarm threshold Sensors 1-3000 hg
Alarm threshold Sensors 1-3000 hg
Alarm indication mode Sensors Fire, Supervisory, Gas, Trouble, Hidden, Buzzer Only
Enable/Disable status export to Hosts Sensors No, TCP1, TCP2, RS232
Enable/Disable commands from Hosts
on the channel
Sensors No, TCP1, TCP2, RS232
