Honeywell UDC2800 User Manual

308

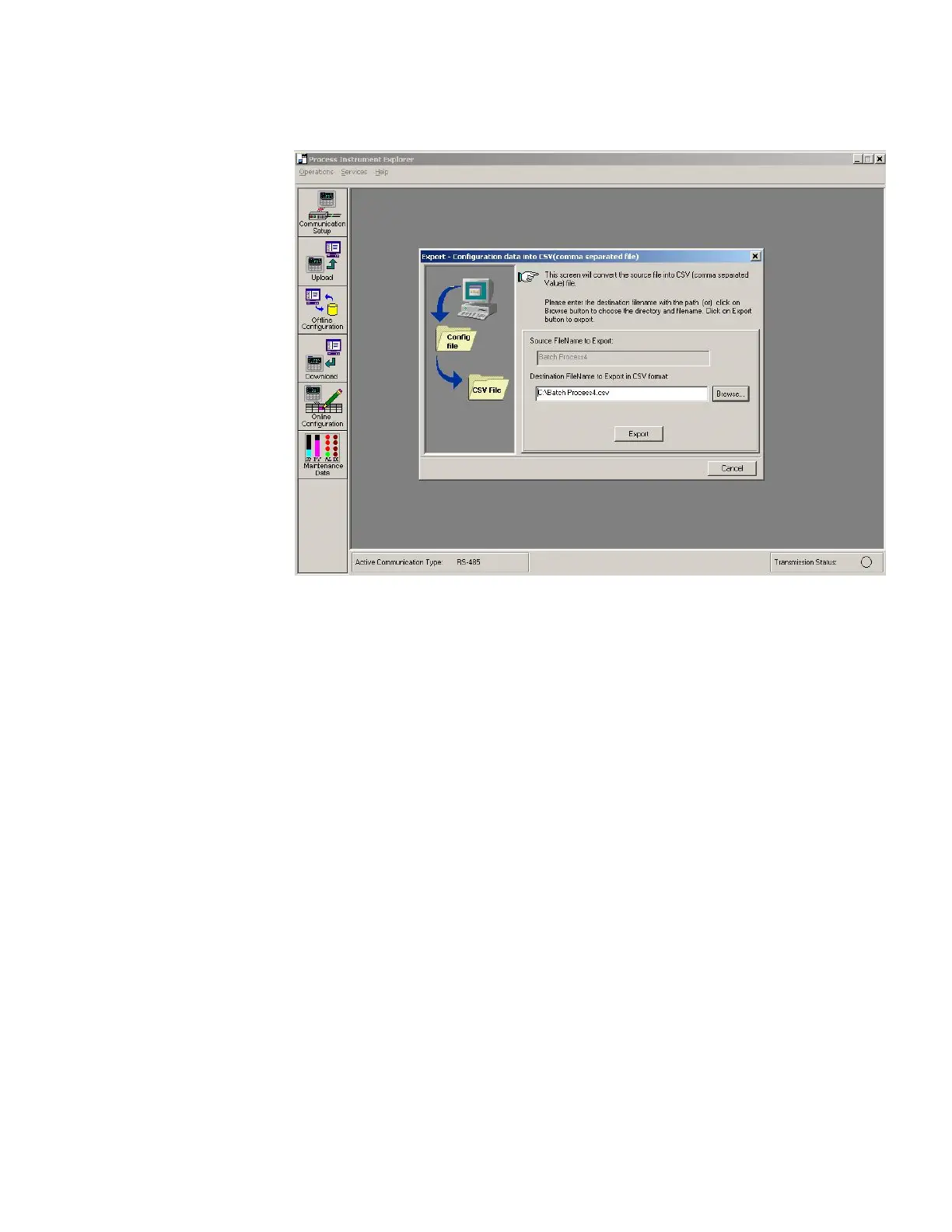

5. Click Browse and select the export file destination path . Click OK
6. Click Export. A confirmation dialog box appears.
The configuration file is exported in .csv format . Send .csv file
through mail to import configuration in UDC 2800 device.
Import configuration to the UDC 2800 using Easy Set
app
Set up communications before uploading or downloading instrument
configurations. See Communications Setup for more information.
1. Open the mail that contains legacy instrument configuration
(.csv) file .
Chapter 10 - Configuration via Honeywell EasySet

Honeywell UDC2800 Specifications

General

Control Modes	PID, ON/OFF, Manual
Mounting	Panel Mount
Display	Dual 4-digit LED
Input Types	Thermocouple, RTD, mA, mV, V
Output Types	Relay
Power Supply	100-240 VAC, 50/60 Hz
Communication	RS-485 Modbus RTU
Enclosure Rating	NEMA 4X
