HP 8753E
NETWORK ANALYZER
WITH OPTION 006
HP 4388
POWER METER
PORT 2
HP 8481A
POWER
SENSOR
3 - 6GHz
HP 8482A
POWER
SENSOR
300KHz - 3GHz
HP 438A
POWER METER
HP-B h
HP 8753E
NETWORK ANALYZER
WITH OPTION 075
HP 8753E
NETWORK ANALYZER
/’
\*
PORT 2
sg631e

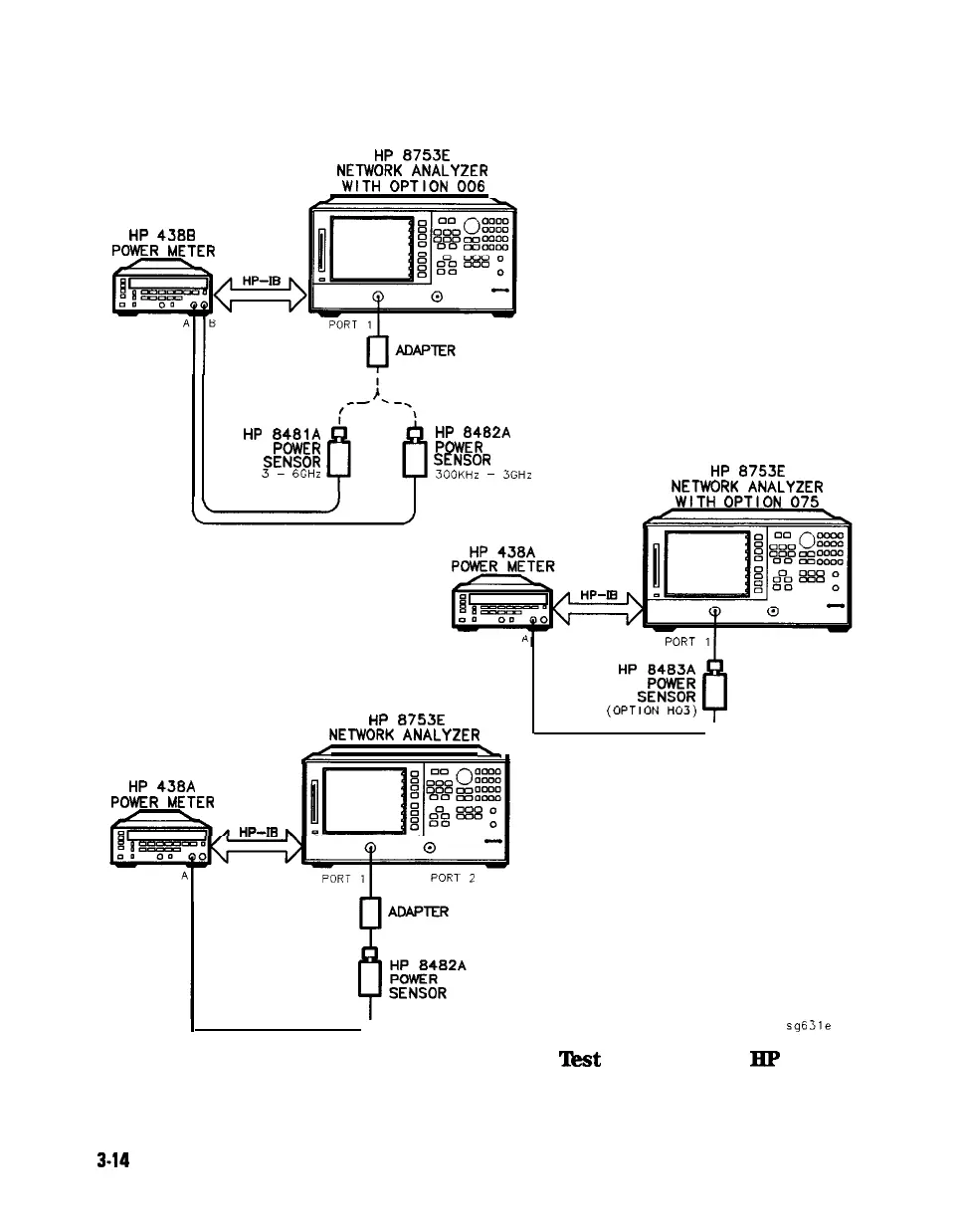

Figure 3-2. RF Output Correction Constants ‘kst Setup for the HP 8753E
3-14 Adjustments and Correction Constants
