5.4.4 Technical Specifications
Table 5-23 describes the technical specifications of the FSUA.
Table 5-23 Technical specifications of the FSUA
Item Specification
Board dimensions
(depth x width x
height)
243.7 mm x 170.0 mm x 35.1 mm
Maximum power
consumption
20 W
Weight 0.42 kg
5.5 VSTSA - Stacking Card on the Main Control Board
This section describes the stacking card, including the functions and features, applicable devices,
slots, panel, indicators, interfaces, and technical specifications.
5.5.1 Introduction
5.5.2 Function and Application
5.5.3 Panel
5.5.4 Interfaces
5.5.5 Technical Specifications
5.5.1 Introduction
The stacking card supported by the S9300 is called VSTSA. The VSTSA can be installed on the
SRU of the S9306 or S9312 to provide switch stacking function.

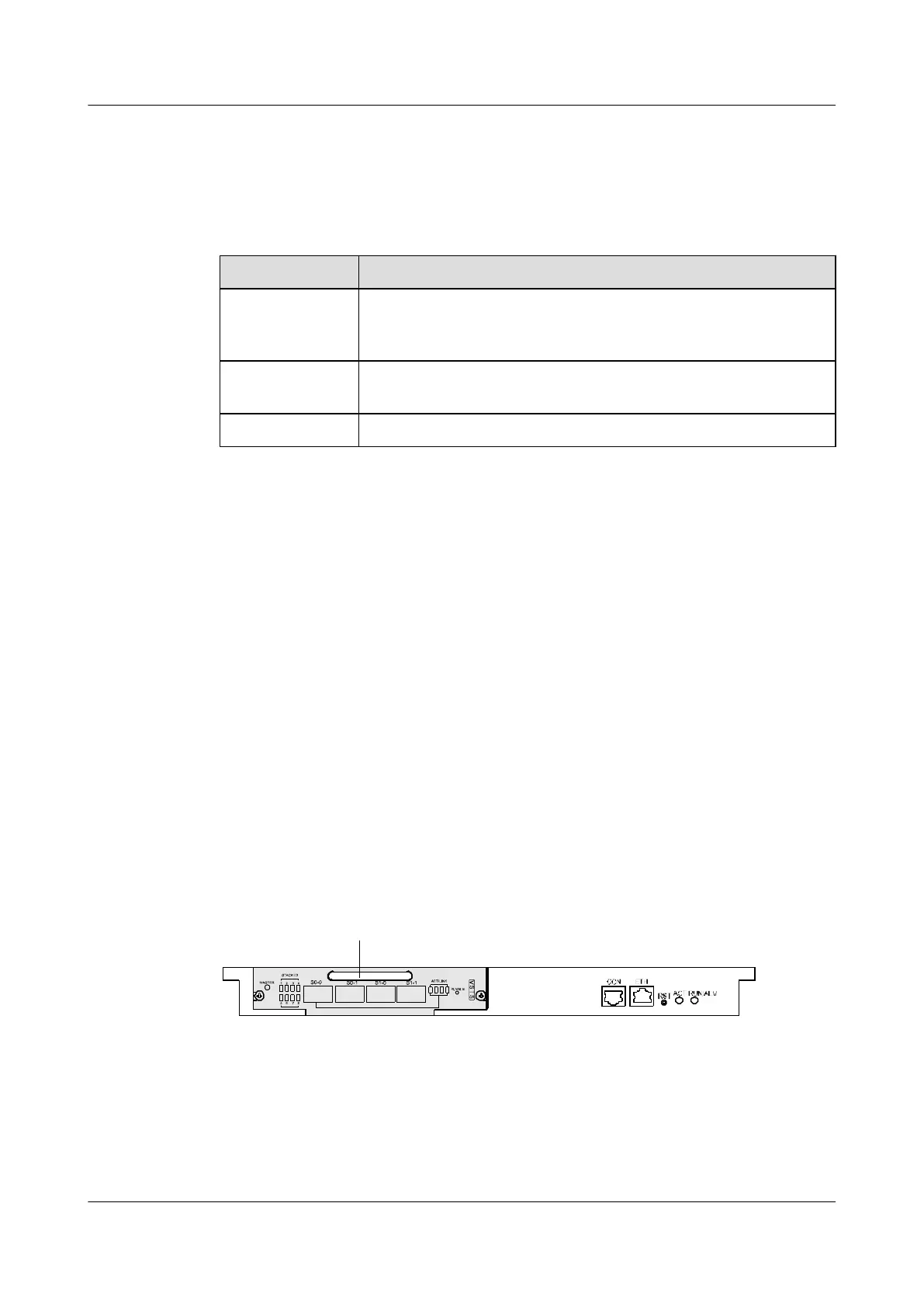

Figure 5-13 Position of VSTSA in SRU
5.5.2 Function and Application
Function Description
Each VSTSA provides four 16G electrical interfaces to implement data access and line-speed
switching.
