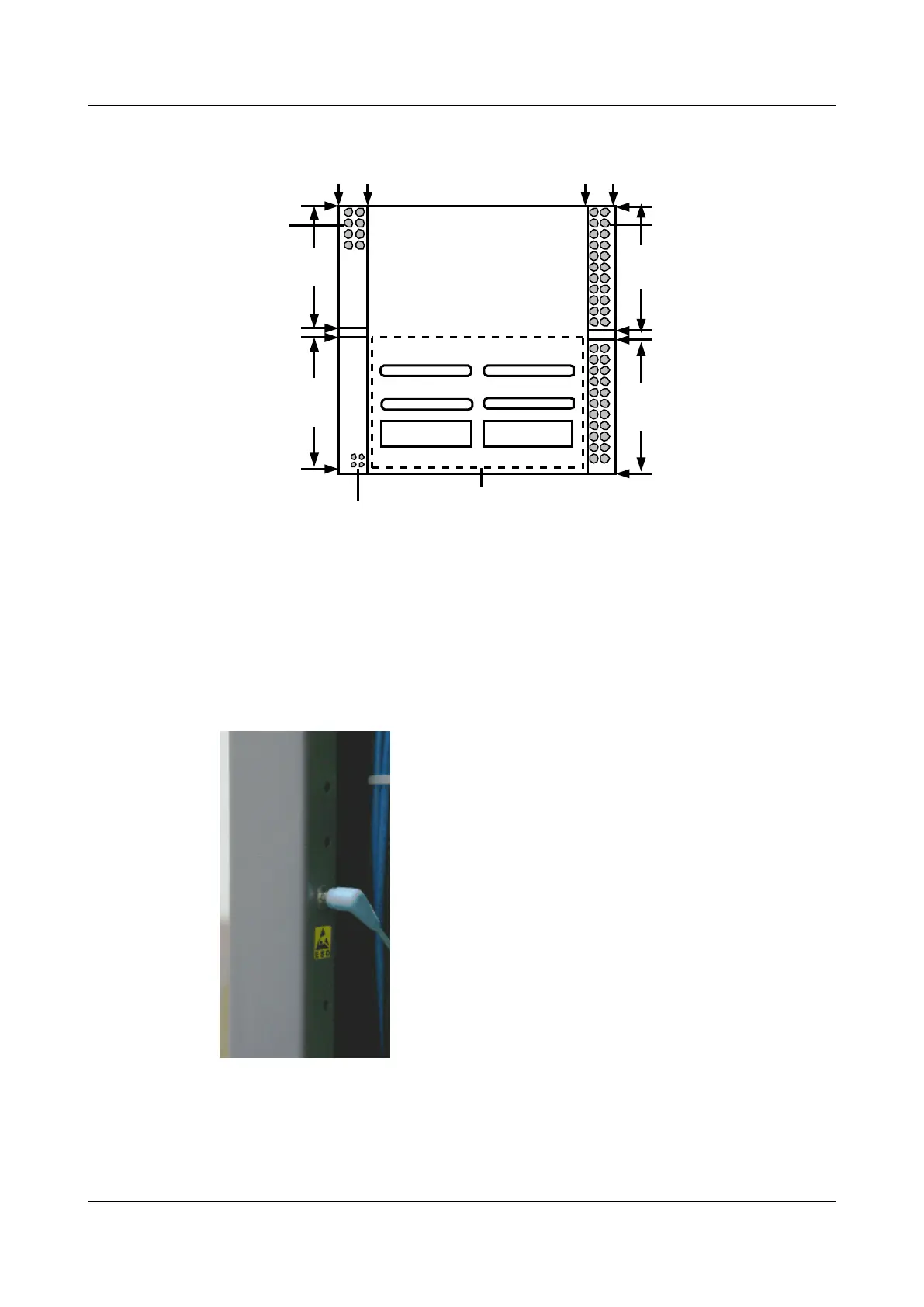

Figure 1-8 Cable apertures on the cabinet top

312mm

52mm 52mm

Network

cable/fiber

Network

cable/fiber

Power cable

Reserved holes

312mm

145mm×65mm 145mm×65mm

130mm×15mm 130mm×15mm

Front Door

ESD Jack

Before installing the N68E cabinet, you must wear an ESD-preventive wrist strap and ensure

that the connector of the ESD-preventive wrist strap is connected properly to the ESD jack in

the middle of the N68E cabinet, as shown in Figure 1-9.

Figure 1-9 ESD jack in the middle of the N68E cabinet

1 Cabinets

Quidway S9300 Terabit Routing Switch

Hardware Description

1-12 Huawei Proprietary and Confidential

Issue 01 (2010-12-15)
