5.16.1 Introduction
The 24-port 100M/1000M Ethernet optical and 2-port 10GE optical interface card (EA, SFP/
XFP) is called S24XA for short. The S24XA provides 24 GE optical interfaces and two 10GE
optical interfaces.
5.16.2 Function and Application
Function
The S24XA provides 24 GE optical interfaces and two 10GE optical interfaces to implement
data access and line-speed switching.
Application
The S24XA can be installed in any LPU slot of the S9312, S9306, and S9303.
5.16.3 Panel

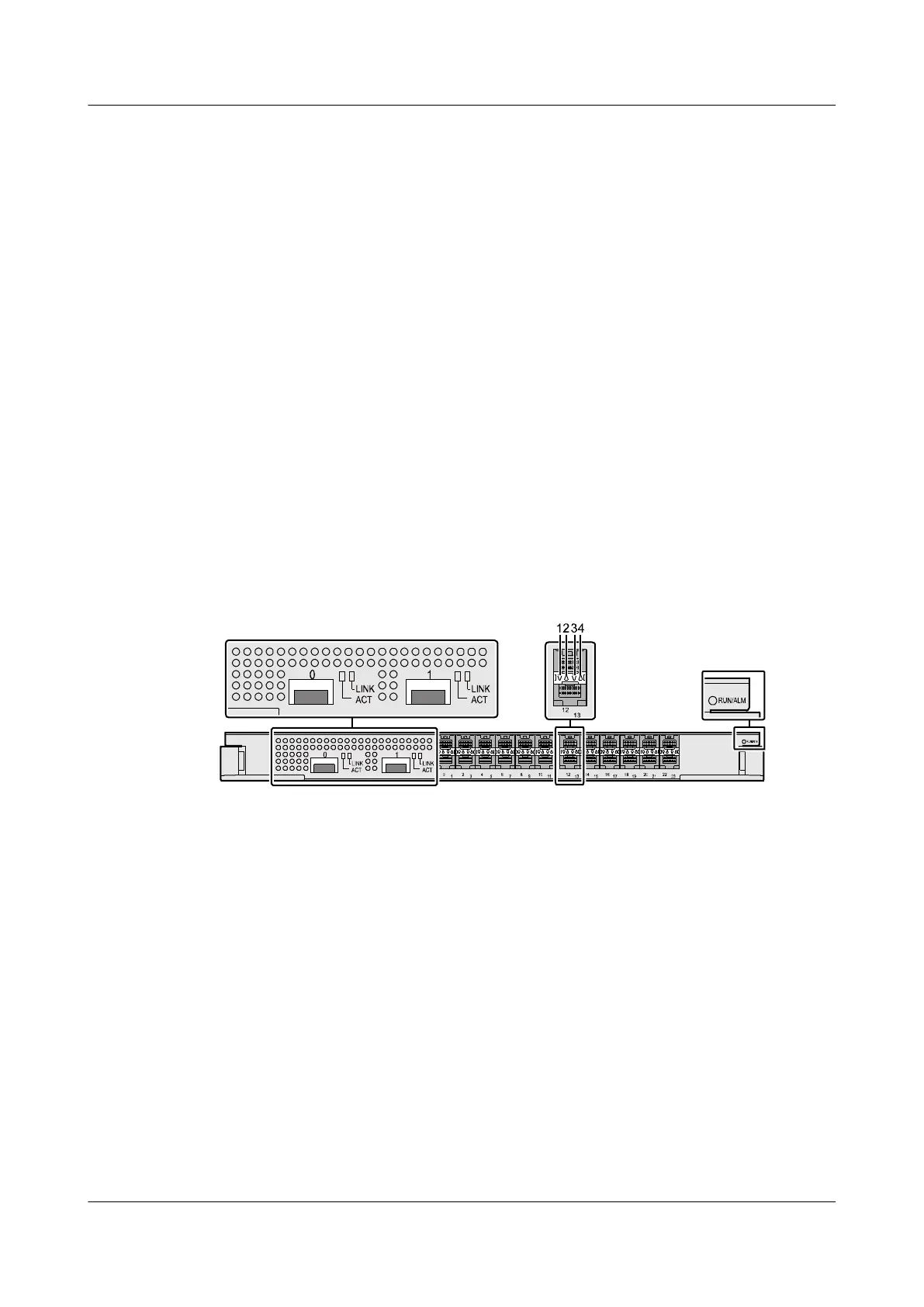

Figure 5-27 shows the appearance of the S24XA panel.
Figure 5-27 Appearance of the S24XA panel
1. ACT indicators of the
lower optical interfaces
2. ACT indicators of the
upper optical interfaces
3. Link indicators of the
lower optical interfaces
4. Link indicators of the
upper optical interfaces
Buttons and Indicators on the Panel
Table 5-85 describes the buttons and indicators on the S24XA panel.
