Full Name Short Name Capacity of MAC
Address Table
4-Port 10GBASE-X Interface Card(ED,
XFP)
X4UXD 512K
5.21.2 Function and Application
Function Description
The X4UX provides four 10GE optical interfaces to implement data access and wire-speed
switching.
Application
The X4UX can be installed in any LPU slot on the S9312, S9306, or S9303.
5.21.3 Panel

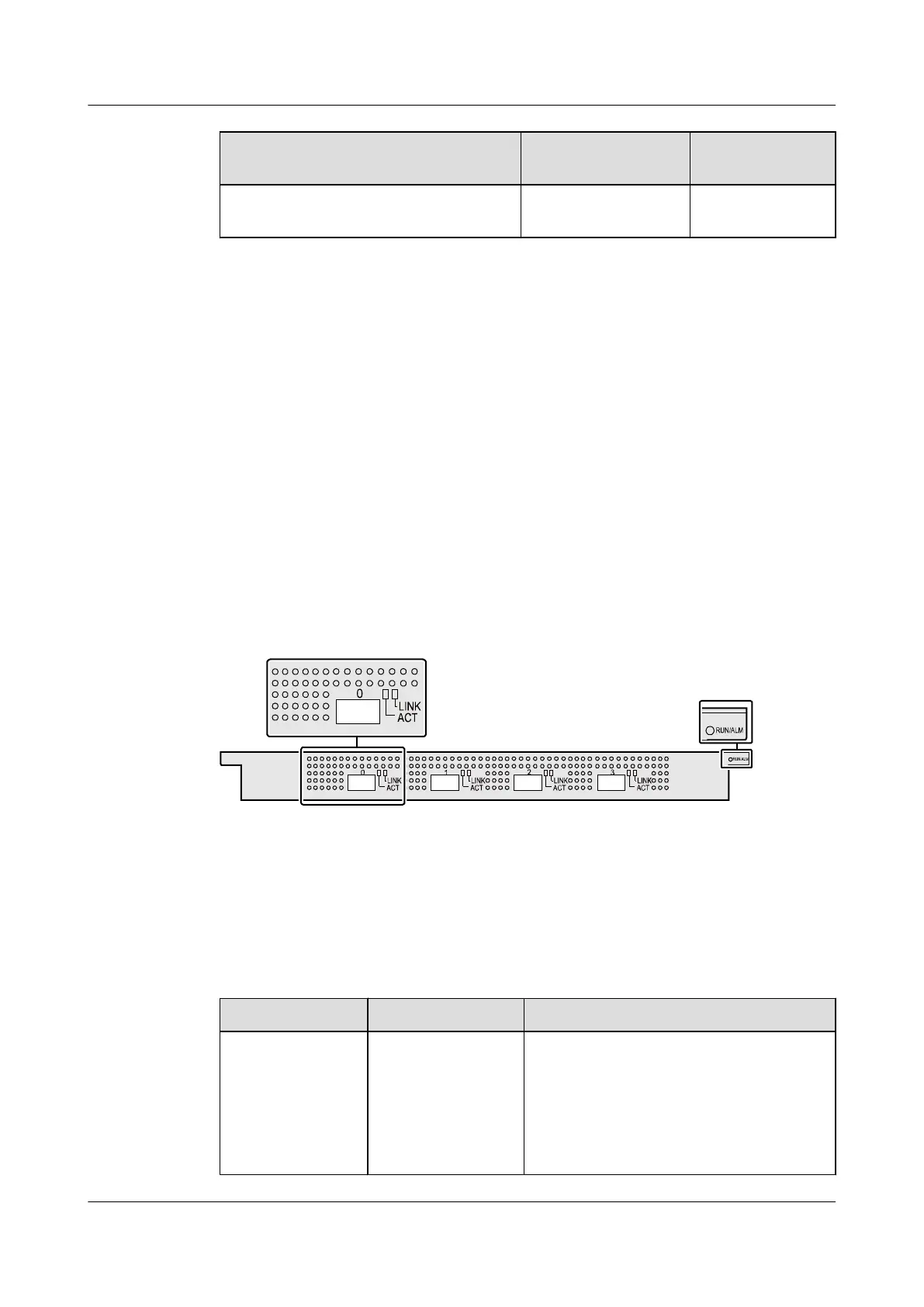

Figure 5-33 shows the appearance of the X4UX panel.
Figure 5-33 Appearance of the panel of the X4UX
Buttons and Indicators on the Panel
Table 5-120 describes the buttons and indicators on the X4UX panel.
Table 5-120 Description of buttons and indicators on the X4UX panel
Indicator/Button
Color Description
RUN/ALM Green If the indicator is on, it indicates that the LPU
is powered on, but the software is not running.
If the indicator blinks every 2s (0.5 Hz), it
indicates that the system is running normally.
If the indicator blinks every 0.25s (4 Hz), it
indicates that the system is starting.
