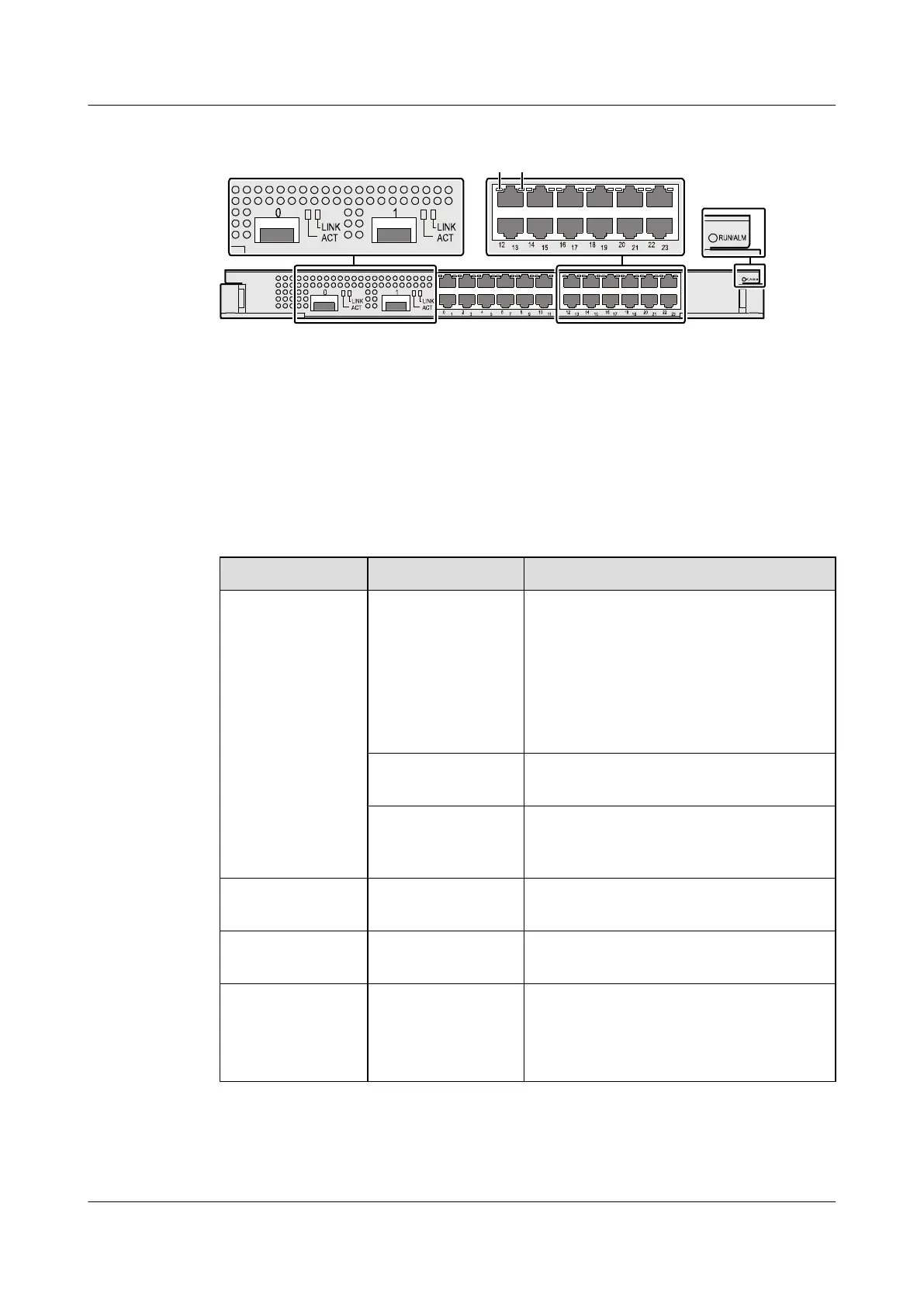

Figure 5-28 Appearance of the T24XA panel
1. Link/ACT indicators of the upper electrical
interfaces
2. Link/ACT indicators of the lower electrical
interfaces
Buttons and Indicators on the Panel
Table 5-93 describes the buttons and indicators on the T24XA panel.
Table 5-93 Description of buttons and indicators on the T24XA panel
Indicator/Button Color Meaning
RUN/ALM Green If the indicator is on, it indicates that the board
is powered on but the software is not running.
If the indicator blinks once every 2s (0.5 Hz),
it indicates that the system is in normal state.
If the indicator blinks once every 0.25s (4 Hz),
it indicates that the system is being powered
on or being restarted.
Red
If the indicator is in red, it indicates that the
board is faulty.
Orange If the indicator is in orange, it indicates that
the board is installed in the slot and the CBUS
is powered on.
ACT Amber If the indicator blinks, it indicates that data is
being transmitted.
LINk Green-yellow If the indicator is on, it indicates that the link
is connected.
Link/ACT Green If the indicator is on, it indicates that the link
is connected.
If the indicator blinks, it indicates that data is
being transmitted.
5.17.4 Interfaces
