5.12.1 Introduction
The 48-port FE optical interface card (SFP) of the S9300 is called F48S for short. The F48S
boards are classified into the following types: (EA, SFP) and (EC, SFP).
Table 5-60 provides the full name of the boards and capacities of the MAC address tables.
Table 5-60 Lists of F48S
Full Name Short Name Capacity of MAC
Address Table
48-Port 100BASE-FX Interface Card (EA,
SFP)
F48SA 32K
48-Port 100BASE-FX Interface Card (EC,
SFP)
F48SC 128K
5.12.2 Function and Application
Function Description
The F48S provides 48 FE optical interfaces to implement data access and wire-speed switching.
Application
The F48S can be installed in any LPU slot on the S9312, S9306, or S9303.
5.12.3 Panel

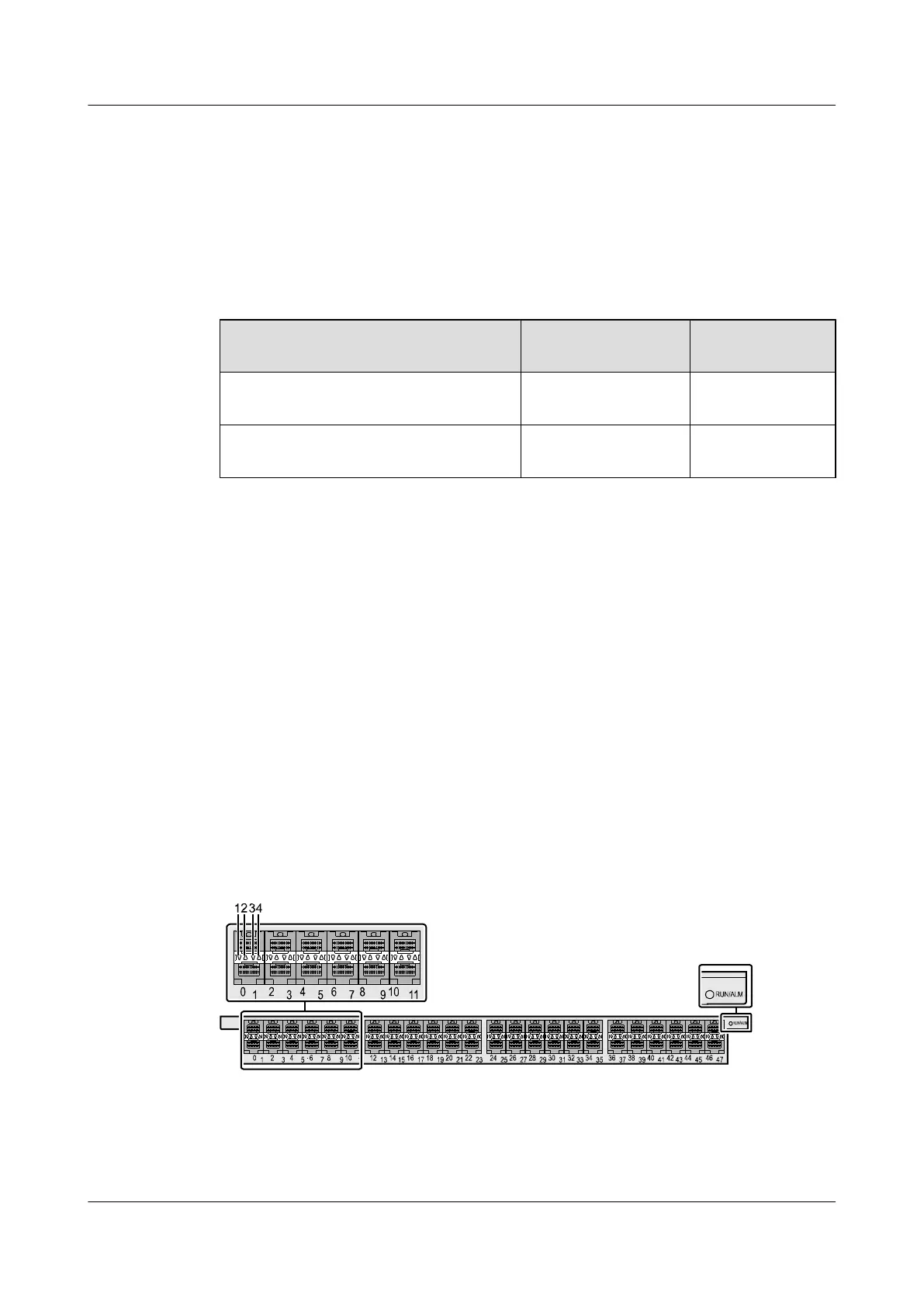

Figure 5-23 shows the appearance of the F48S panel.
Figure 5-23 Appearance of the F48S panel
1. ACT indicators of the
lower optical interfaces
2. ACT indicators of the
upper optical interfaces
3. Link indicators of the
lower optical interfaces
4. Link indicators of the
upper optical interfaces
Quidway S9300 Terabit Routing Switch
Hardware Description 5 Boards
Issue 01 (2010-12-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5-53
