2.2.1 S9312
The S9312 is 15 U (1 U = 44.45 mm) high, with dimensions of 442 mm x 476 mm x 663.95 mm
(width x depth x height). Figure 2-1 and Figure 2-2 shows the appearance and components of
the S9312. Figure 2-3 shows the layout of slots on the S9312.

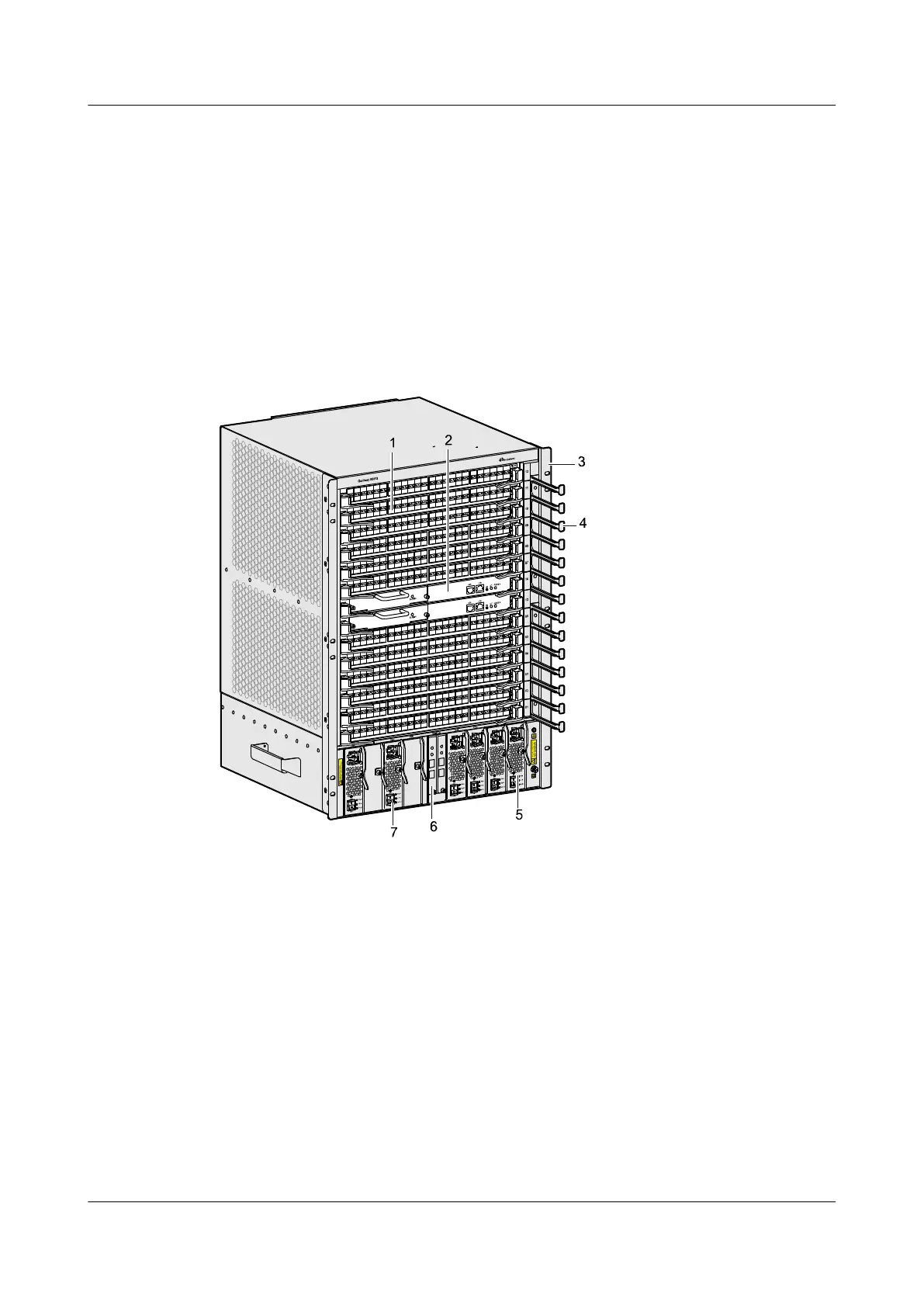

Figure 2-1 Appearance and components of the S9312 (1)
1. LPU
2. SRU 3. Rack-mounting ear
4. Cabling rack 5. PoE Power Module 6. CMU
7. Power supply
Quidway S9300 Terabit Routing Switch
Hardware Description 2 Overview of the S9300
