The air filter can be removed. For the method of removing and installing the air filter, see the
Quidway S9300 Terabit Routing Switch Parts Replacement.
4.3.3 Air Filter of the S9303
The air filter and fan modules of the S9303 are installed separately. The S9303 has one air filter,
which is inserted from the back of the equipment. Figure 4-9 shows the appearance of the air
filter of the S9303.

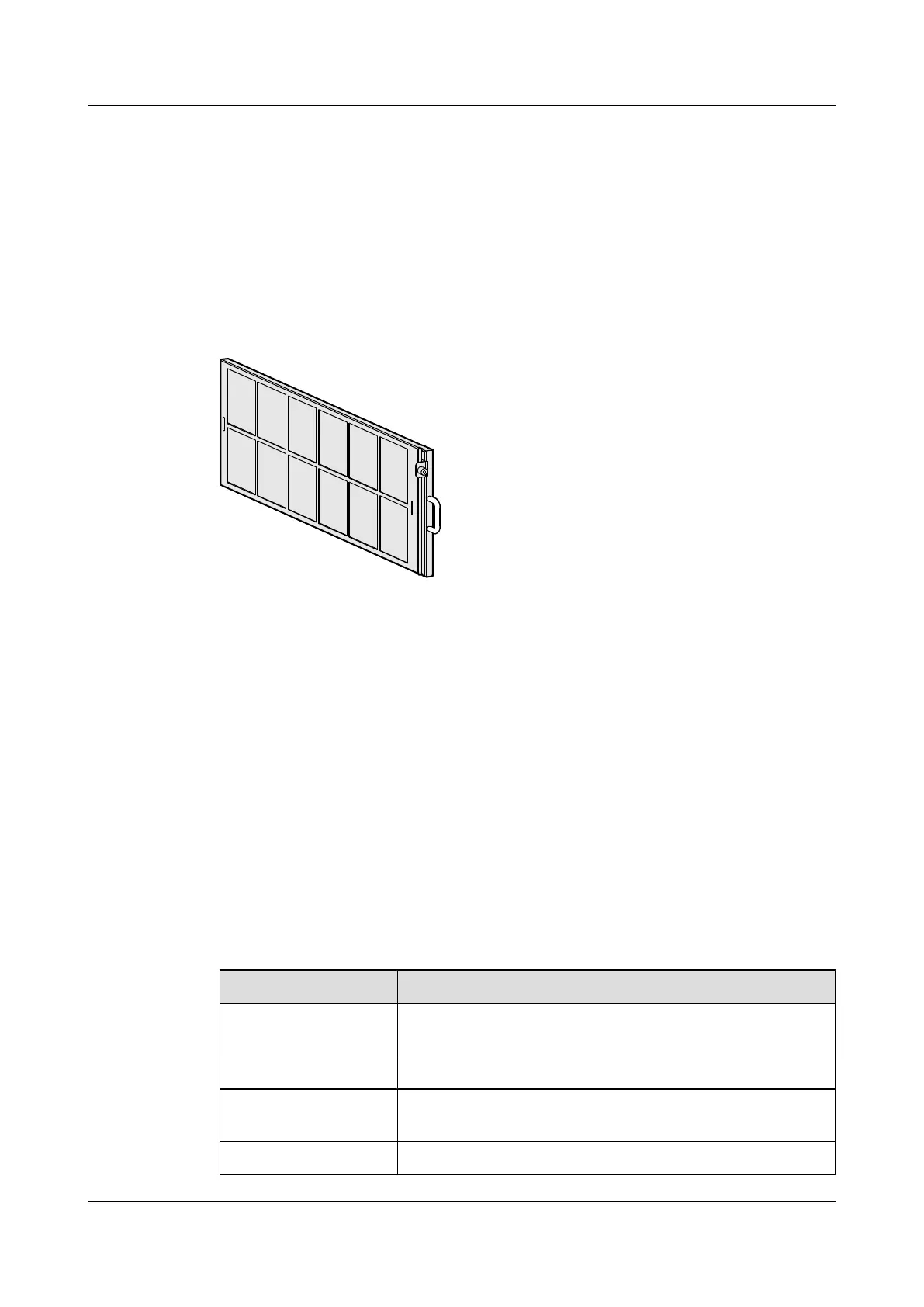

Figure 4-9 Air filter of the S9303
The air filter can be removed. For the method of removing and installing the air filter, see the
Quidway S9300 Terabit Routing Switch Parts Replacement.
4.4 Technical Specifications
This section describes the technical specifications of the fan module of the S9300.
4.4.1 Technical Specifications of the Fan Modules on the S9300
4.4.1 Technical Specifications of the Fan Modules on the S9300
Table 4-2 shows the technical specifications of the fan modules on the S9300.
Table 4-2 Technical specifications of the fan module
Item
Specification
Dimensions (width x
height x depth)
323.9 mm x 126.6 mm x 74.8 mm
Weight 1140±20 g
Maximum power
consumption
31.6 W
Maximum wind pressure 319 Pa
