Huawei Quidway S9300 Hardware Description

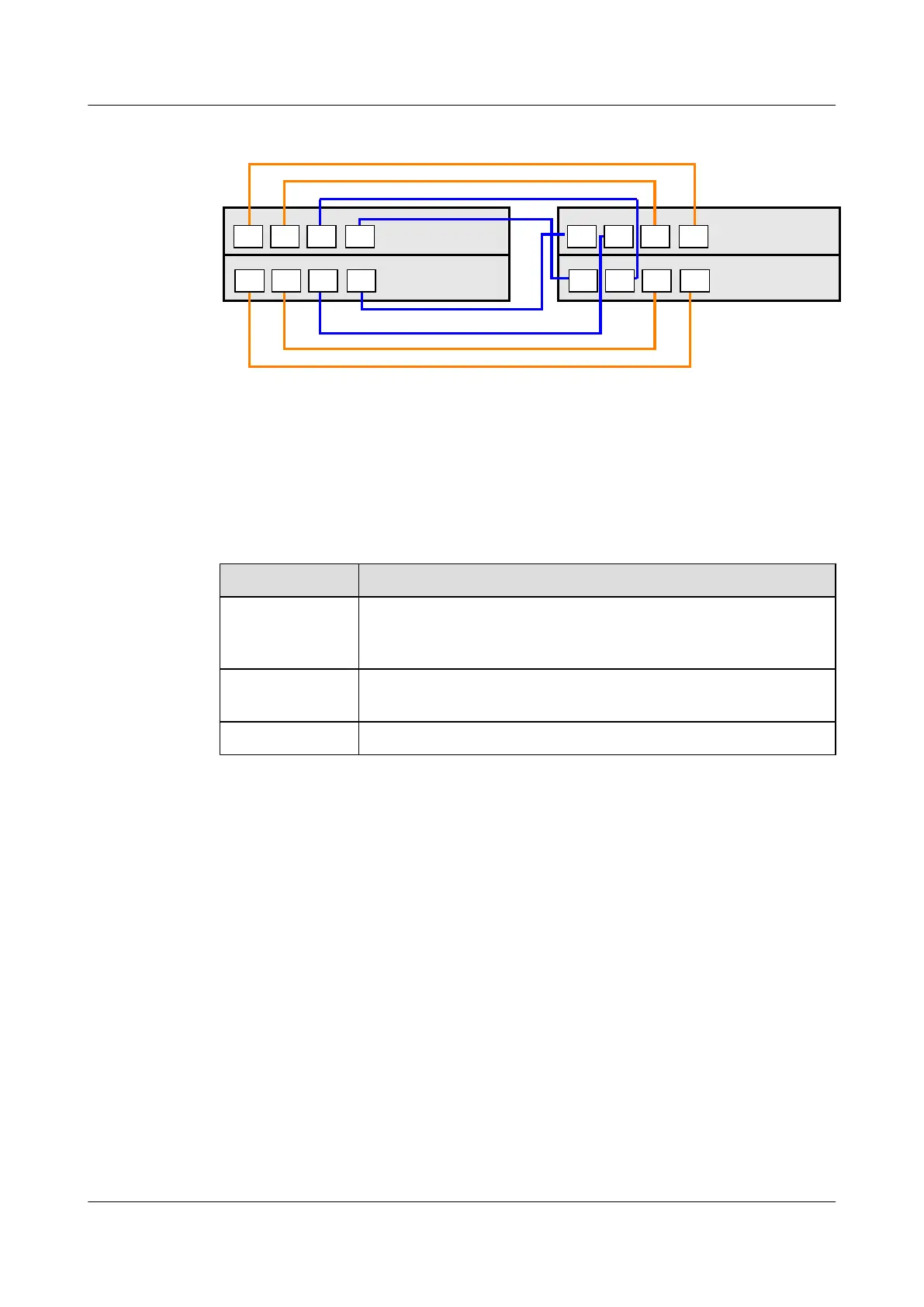

Figure 5-15 External cable connections of a stack
SRU
SRU
S1-1
S0-0 S0-1 S1-0
SRU
SRU
S0-0 S0-1
S0-0 S1-0 S1-1
S1-1S0-0 S0-1 S1-0
S0-1S1-1
S1-0
For details about stack cables, refer to 6.8 Stack Cables.
5.5.5 Technical Specifications
Table 5-26 describes the technical specifications of the VSTSA.
Table 5-26 Technical specifications of the VSTSA
Item
Specification
Board dimensions
(depth x width x
height)
243.7 mm x 170.0 mm x 35.1 mm
Power
consumption
12 W
Weight 1 kg
5.6 CMU - Centralized Monitoring Unit
The CMU manages the power supplies and fans of the system uniformly.
5.6.1 Introduction
5.6.2 Function and Application
5.6.3 Panel
5.6.4 Interfaces
5.6.5 Interface Attributes
5.6.6 Technical Specifications
5.6.1 Introduction
The CMU manages the power supplies and fans of the system uniformly.
Quidway S9300 Terabit Routing Switch
Hardware Description 5 Boards
Issue 01 (2010-12-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5-29
