Huawei Quidway S9300

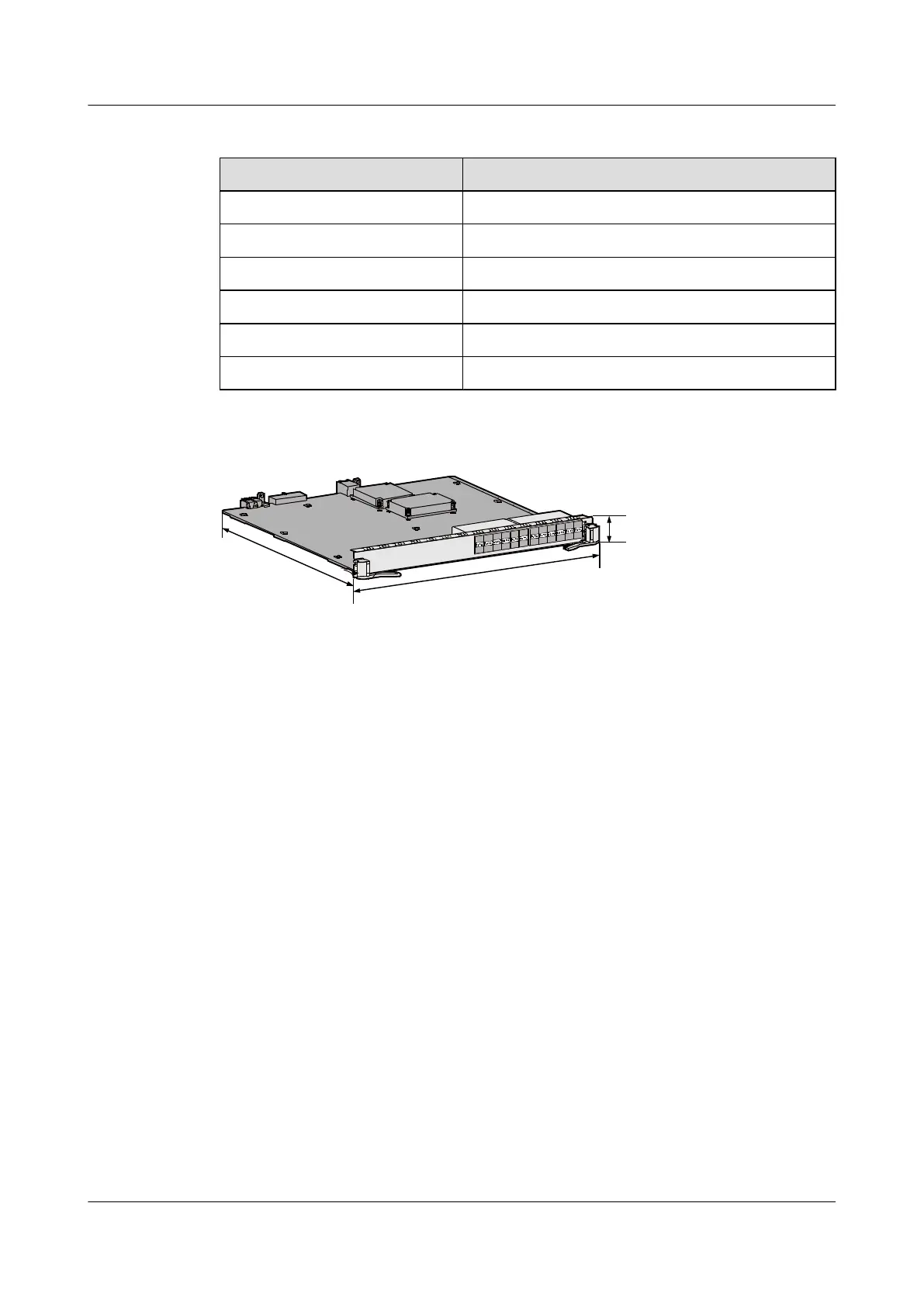

Table 5-5 Board dimensions
Board Type Dimensions (width x depth x height)
MCU 426.8 mm × 194.5 mm × 19.9 mm
SRU 426.8 mm × 394.7 mm × 35.1 mm
FSU or VSU 243.7 mm × 170.0 mm × 35.1 mm
CMU 412.7 mm × 112.9 mm × 19.8 mm
LPU 426.8 mm × 394.7 mm × 35.1 mm
CKM 145.0 mm × 100.0 mm × 2.0 mm
Figure 5-4 Dimensions diagram
depth
width
heigtht
5.1.3 Relation Between Boards
Figure 5-5 and Figure 5-6 show the relation between boards on the S9300.
