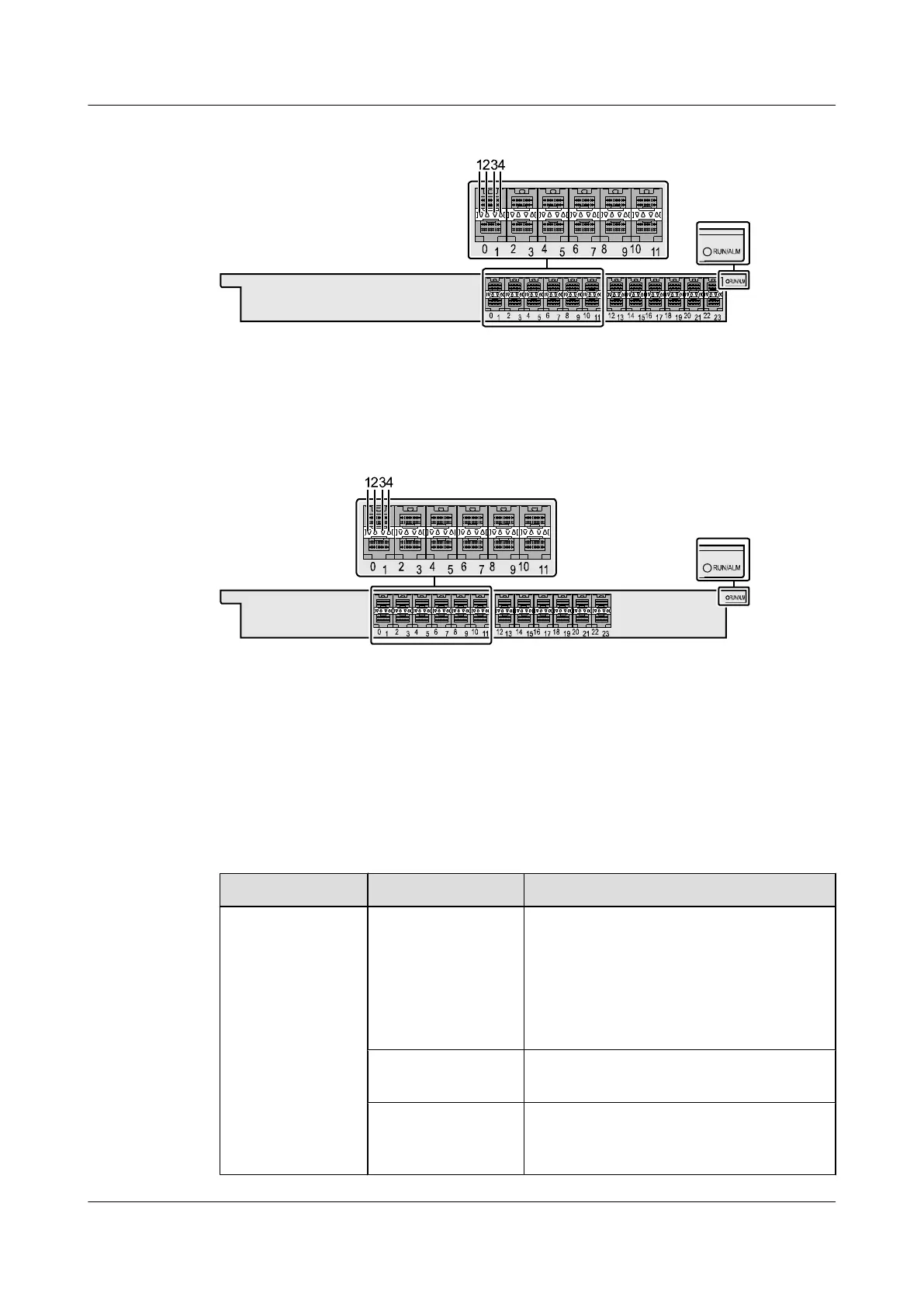

Figure 5-29 Appearance of the G24SA panel
1. ACT indicators of the
lower optical interfaces
2. ACT indicators of the
upper optical interfaces
3. Link indicators of the
lower optical interfaces
4. Link indicators of the
upper optical interfaces
Figure 5-30 Appearance of the G24SC or G24SD panel
1. ACT indicators of the
lower optical interfaces
2. ACT indicators of the
upper optical interfaces
3. Link indicators of the
lower optical interfaces
4. Link indicators of the
upper optical interfaces
Buttons and Indicators on the Panel
Table 5-100 describes the buttons and indicators on the G24S panel.
Table 5-100 Description of buttons and indicators on the G24S panel
Indicator/Button
Color Description
RUN/ALM Green If the indicator is on, it indicates that the LPU
is powered on, but the software is not running.
If the indicator blinks every 2s (0.5 Hz), it
indicates that the system is running normally.
If the indicator blinks every 0.25s (4 Hz), it
indicates that the system is starting.
Red
If the indicator is in red, it indicates that the
LPU is faulty.
Orange If the indicator is in orange, it indicates that
the LPU is installed, and the board is powered
on.
