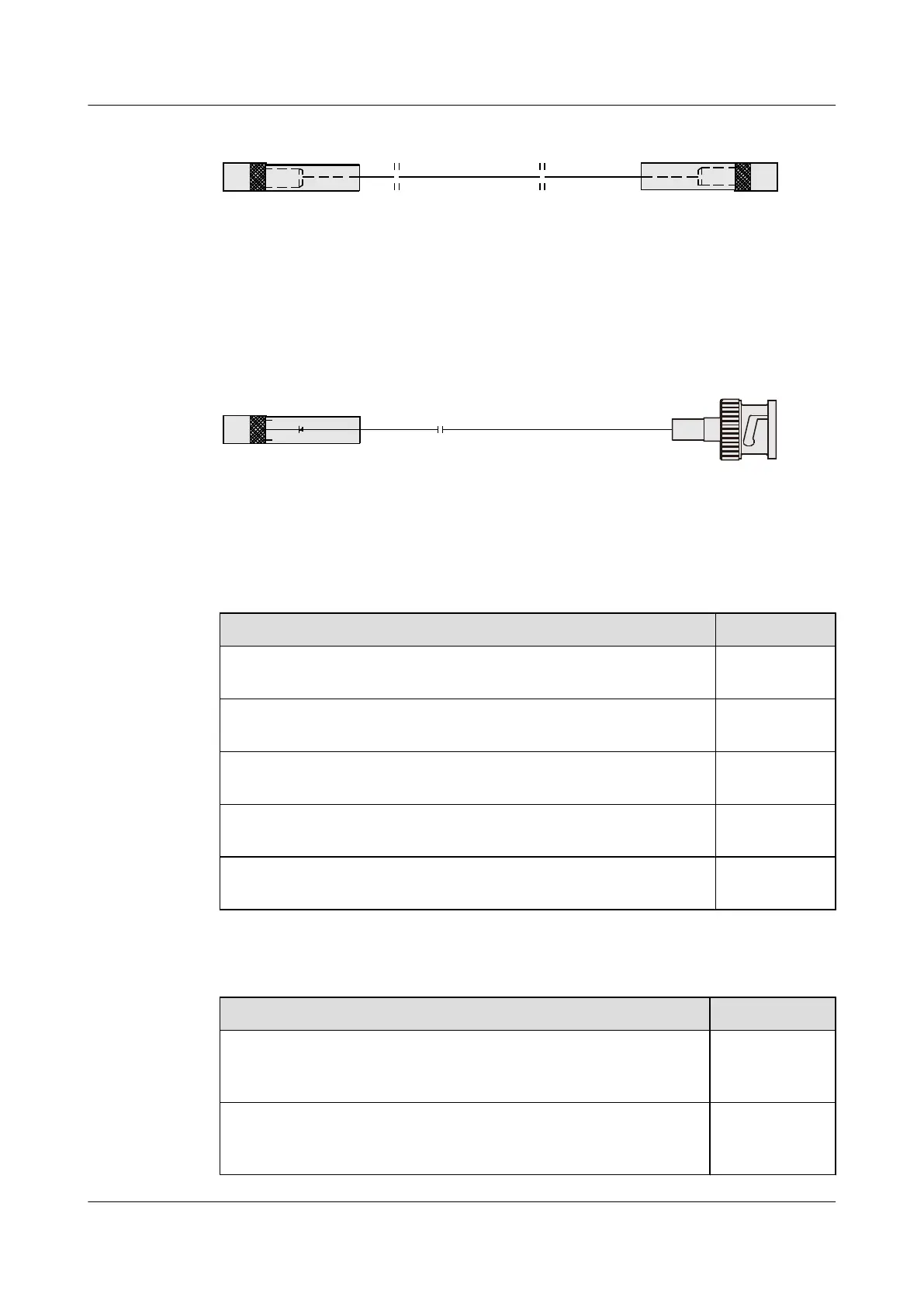

Figure 6-9 SMB/SMB trunk cable
SMB/BC Trunk Cable
The SMB/BNC trunk cable is the 75Ω trunk cable with the SMB connector and BNC connector,
as shown in Figure 6-10.
Figure 6-10 SMB/BNC trunk cable
6.7.3 Technical Specifications
120 Ω trunk cable
Cable Description
Length
Trunk cable-3.00 m-120 ohm-1E1-0.4 mm-(8-bit network interface-II)-
(120CC4P0.4P430U(S))-(8-bit network interface-II)-Expert
3 m
Trunk cable-15 m-120 ohm-1E1-0.4 mm-(8-bit network interface-II)-
(120CC4P0.4P430U(S))-(8-bit network interface-II)
15 m
Trunk cable-30.00 m-120 ohm-1E1-0.4 mm-(8-bit network interface-II)-
(120CC4P0.4P430U(S))-(8-bit network interface-II)-Expert
30 m
Trunk cable-60.00 m-120 ohm-1E1-0.4 mm-(8-bit network interface-II)-
(120CC4P0.4P430U(S))-(8-bit network interface-II)-Expert
60 m
Trunk cable-80.00 m-120 ohm-1E1-0.4 mm-(8-bit network interface-II)-
(120CC4P0.4P430U(S))-(8-bit network interface-II)-Expert
80 m
Straight-Through Cable
Cable Description
Length
Single cable-MEM board network card-straight through cable connecting
Hub and computer-0.20 m-(8-bit network interface-I)-(CC4P0.5 gray)-(8-
bit network interface-I)-C&C08B,DL2015
0.2 m
Single cable-straight-through network cable-0.50 m-(8-bit network
interface-I)-(CC4P0.5 gray)-(8-bit network interface-I)-
ONU-160B,DL5042
0.5 m
Quidway S9300 Terabit Routing Switch
Hardware Description 6 Cables
Issue 01 (2010-12-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6-15
