6.6.2 Optical Connector
The S9300 uses the LC/PC optical connector.

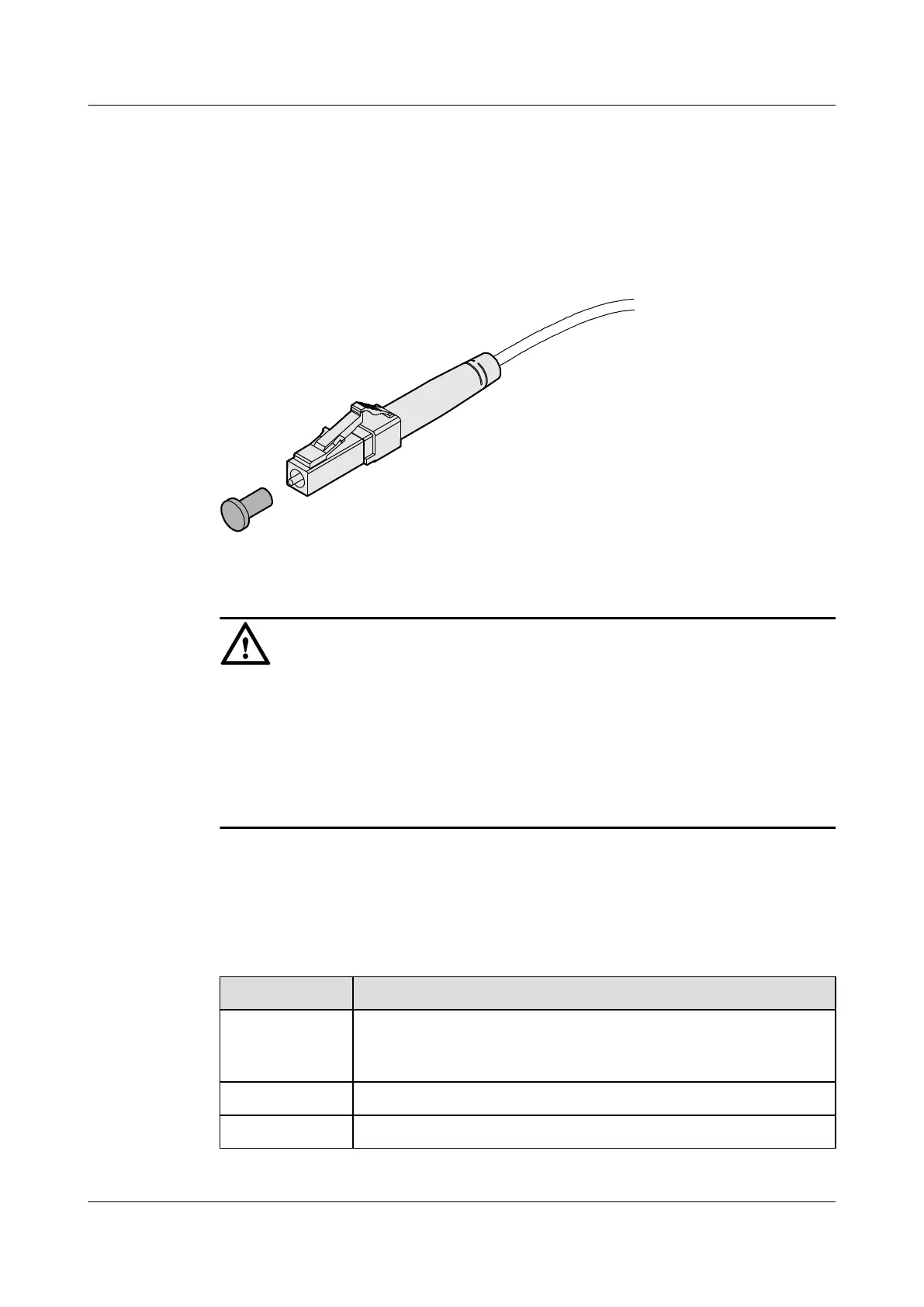

Figure 6-5 shows the appearance of the LC/PC optical connector.
Figure 6-5 Appearance of the LC/PC optical connector
CAUTION
The plugging/unplugging of the LC/PC optical interface needs only an axial operation instead
of a rotation. The operation procedures and precautions are as follows:
l Align the head of the fiber jumper with the optical interface on the optical board and exert
proper force to push the fiber inside.
l Press the clip before pulling out the fiber. Push in the fiber connector inward slightly, and
then pull out the connector.
6.6.3 Technical Specifications
Table 6-13 describes the technical specifications of the optical fiber.
Table 6-13 Technical specifications of the optical fiber
Item
Specification
Fiber
transmission
mode
Single mode/multimode
Connector LC/PC
Outer diameter 2 mm
