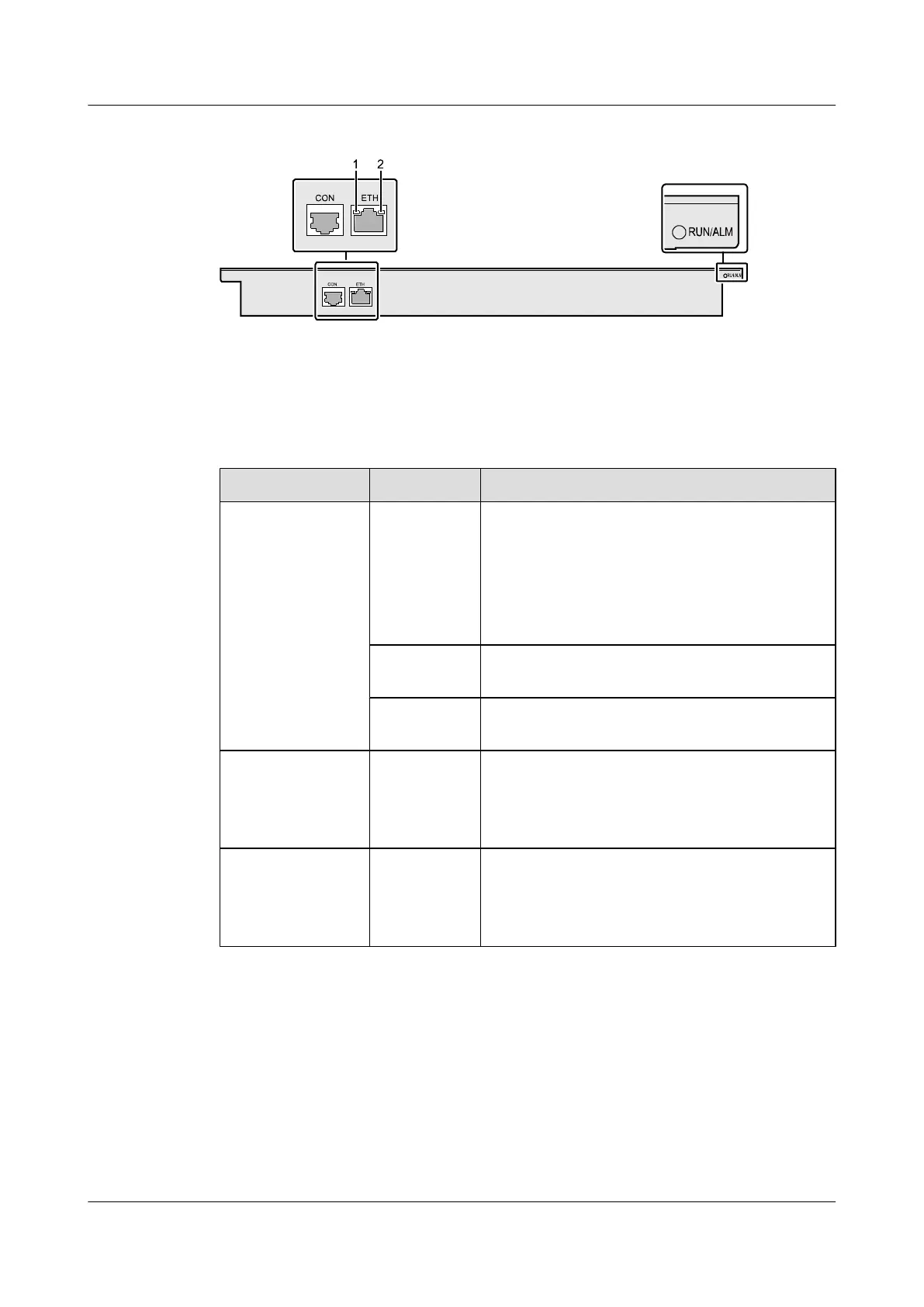

Figure 5-18 VAMPA panel
1. ACT indicator 2. LINK indicator
The board indicator RUN/ALM and interface indicators ACT and LINK are located on the
VAMPA panel. Table 5-32 describes the colors and blinking states of the indicators.
Table 5-32 Buttons and indicators on the VAMPA panel
Indicator/Button Color Description
RUN/ALM Green If the indicator is on, it indicates that the board is
powered on but the software is not running.
If the indicator blinks slowly (0.5 Hz), it indicates
that the system runs normally.
If the indicator blinks quickly (4 Hz), it indicates that
the system is being started.
Red
If the indicator is on, it indicates that the board is
faulty.
Orange If the indicator is on, it indicates that the board is
installed in the slot and is powered on.
ACT Amber If the indicator blinks, it indicates that data is being
transmitted or received.
If the indicator is off, it indicates that no data is being
transmitted or received.
LINK Green-yellow If the indicator is on, it indicates that the link is
connected.
If the indicator is off, it indicates that the link is
blocked.
5.7.4 Description of Interfaces on the SPU
This topic describes types, quantity, and functions of interfaces on the SPU.
Table 5-33 describes types and functions of interfaces on the VAMPA.
