5.22.1 Introduction
5.22.2 Function and Application
5.22.3 Panel
5.22.4 Interfaces
5.22.5 Interface Attributes
5.22.6 Technical Specifications
5.22.1 Introduction
The 2-port 10GE optical interface card (XFP) of the S9300 is called X2UX for short. The X2UX
boards are classified into the following types: (EA, XFP) and (EC, XFP).
Table 5-125 provides the full name of the boards and capacities of the MAC address tables.
Table 5-125 Lists of X2UX
Full Name Short Name Capacity of MAC
Address Table
2-Port 10GBASE-X Interface Card(EA,
XFP)
X2UXA 32K
2-Port 10GBASE-X Interface Card (EC,
XFP)
X2UXC 128K
5.22.2 Function and Application
Function Description
The X2UX provides two 10GE optical interfaces to implement data access and wire-speed
switching.
Application
The X2UX can be installed in any LPU slot on the S9312, S9306, or S9303.
5.22.3 Panel

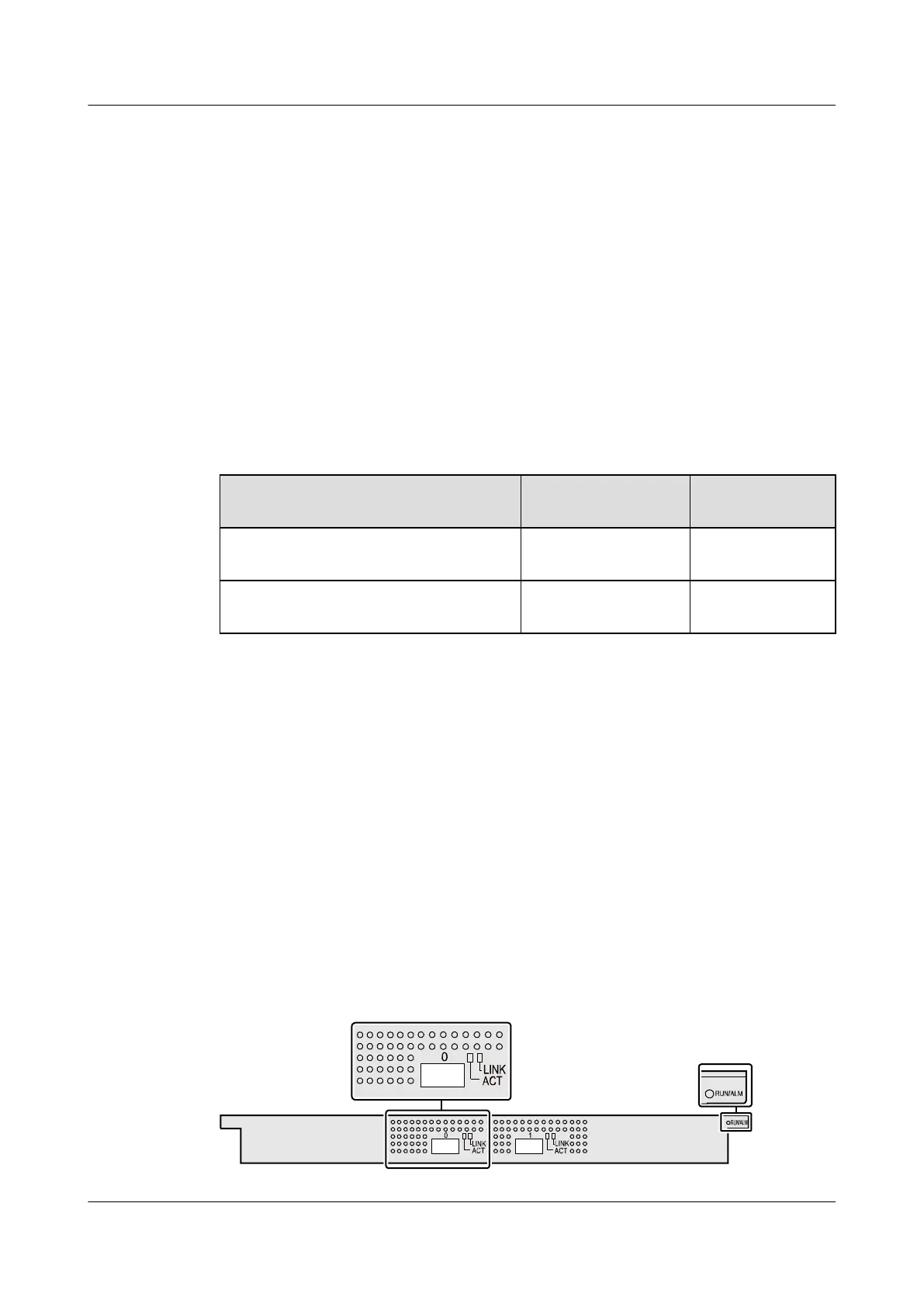

Figure 5-34 shows the appearance of the X2UX panel.
Figure 5-34 Appearance of the panel of the X2UX
5 Boards
Quidway S9300 Terabit Routing Switch
Hardware Description
5-96 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 01 (2010-12-15)
