NOTE

l 1 U = 1.75 in. or 44.45 mm. and U is the height unit defined in the IEC 60297 standard.

l The weight of an empty cabinet consists of the weight of the front door, rear door, and side panels.

1.1.3 Components of the N66E Cabinet

This topic describes the components of the N66E cabinet. N66E cabinets are classified into front-

serviceable cabinets and rear-serviceable cabinets. S9300s use rear-serviceable cabinets. A rear-

serviceable cabinet consists of a front door, a rear door, two side panels, and a rack.

Figure 1-2 show the components of the rear-serviceable cabinet.

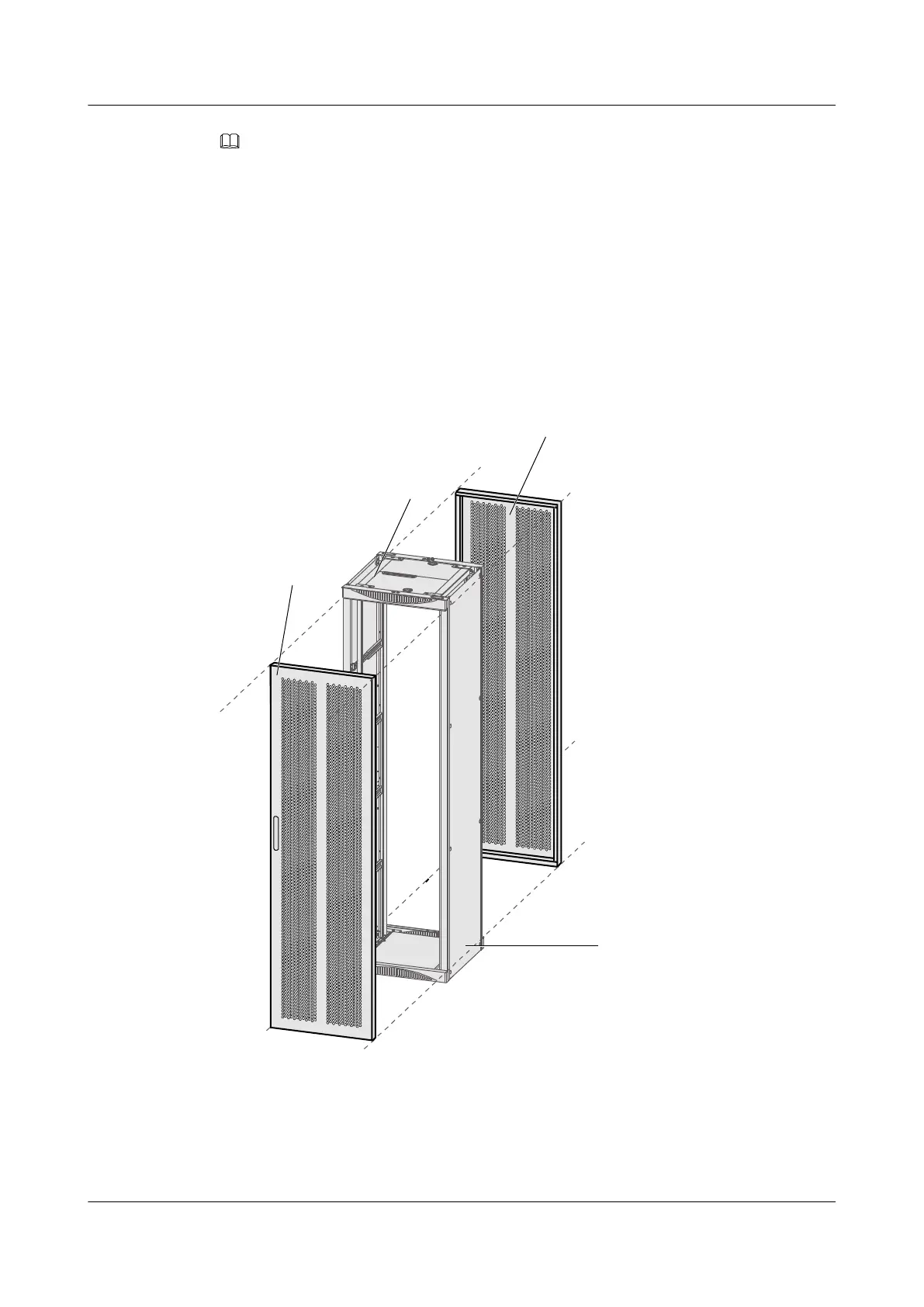

Figure 1-2 Components of the rear-serviceable N66E cabinet

(1) Front door

(2) Rack (3) Rear door (4) Side panels

1 Cabinets

Quidway S9300 Terabit Routing Switch

Hardware Description

1-4 Huawei Proprietary and Confidential

Issue 01 (2010-12-15)
