The 24-port 100M/1000M combo interface card (SA, SFP/RJ45) is called G24CA for short. This
board provides 8 electrical interfaces and 24 optical interfaces. Among the 24 optical interfaces,
the first eight optical interfaces and all the electrical interfaces form eight Combo interfaces.
5.14.2 Function and Application
Function Description
The G24CA provides 16 GE optical interfaces and 8 combo interfaces. The combo interfaces
can function as either optical interfaces or electrical interfaces.
NOTE
On the G24CA, at most 24 interfaces, including the GE interfaces and combo interfaces, can work at the
same time.
Application
G24CA can be installed in any LPU slot on the S9312, S9306, or S9303.
5.14.3 Panel

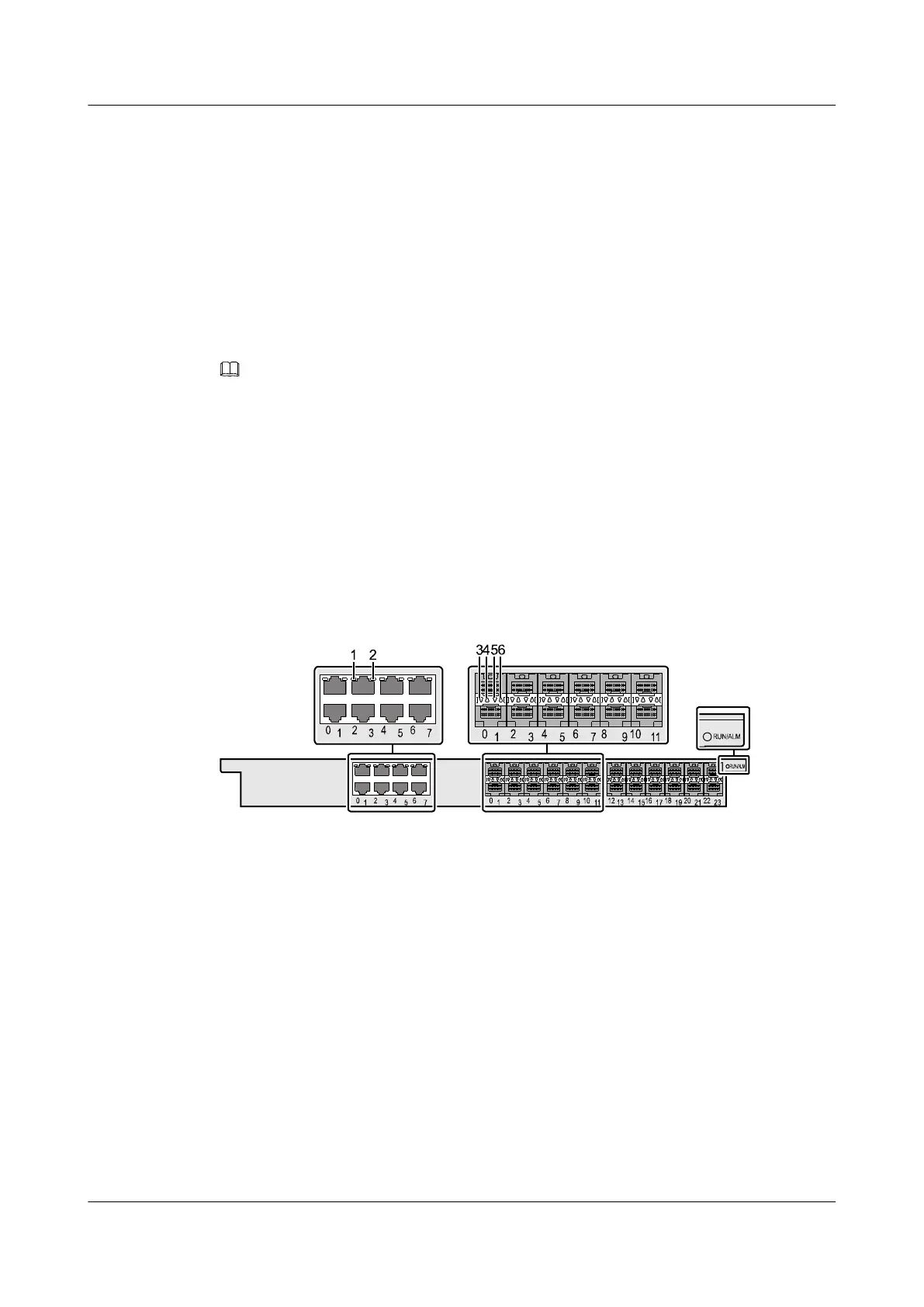

Figure 5-25 shows the appearance of the G24CA panel.
Figure 5-25 Appearance of the G24CA panel
1. Link/ACT indicators of the upper
electrical interfaces
2. Link/ACT indicators of the lower
electrical interfaces
3. ACT indicators of the lower
optical interfaces
4. ACT indicators of the upper
optical interfaces
5. Link indicators of the lower
optical interfaces
6. Link indicators of the upper
optical interfaces
Buttons and Indicators on the Panel
Table 5-71 describes the buttons and indicators on the G24CA panel.
