Huawei Quidway S9300

The 36-port 100M/1000M Ethernet electrical interface + 12-port 100M/1000M Ethernet optical
combo interface card (EA, RJ45/SFP) supported by the S9300 is called G48CEAT. The
G48CEAT supports 32K MAC addresses.
5.11.2 Function and Application
Function
The G48CEAT provides 36-port 100M/1000M Ethernet electrical interfaces and 12-port 100M/
1000M Ethernet optical interfaces to implement data access and line-speed switching.
Application
The G48CEAT can be installed in any LPU slot of the S9312, S9306, and S9303.
5.11.3 Panel

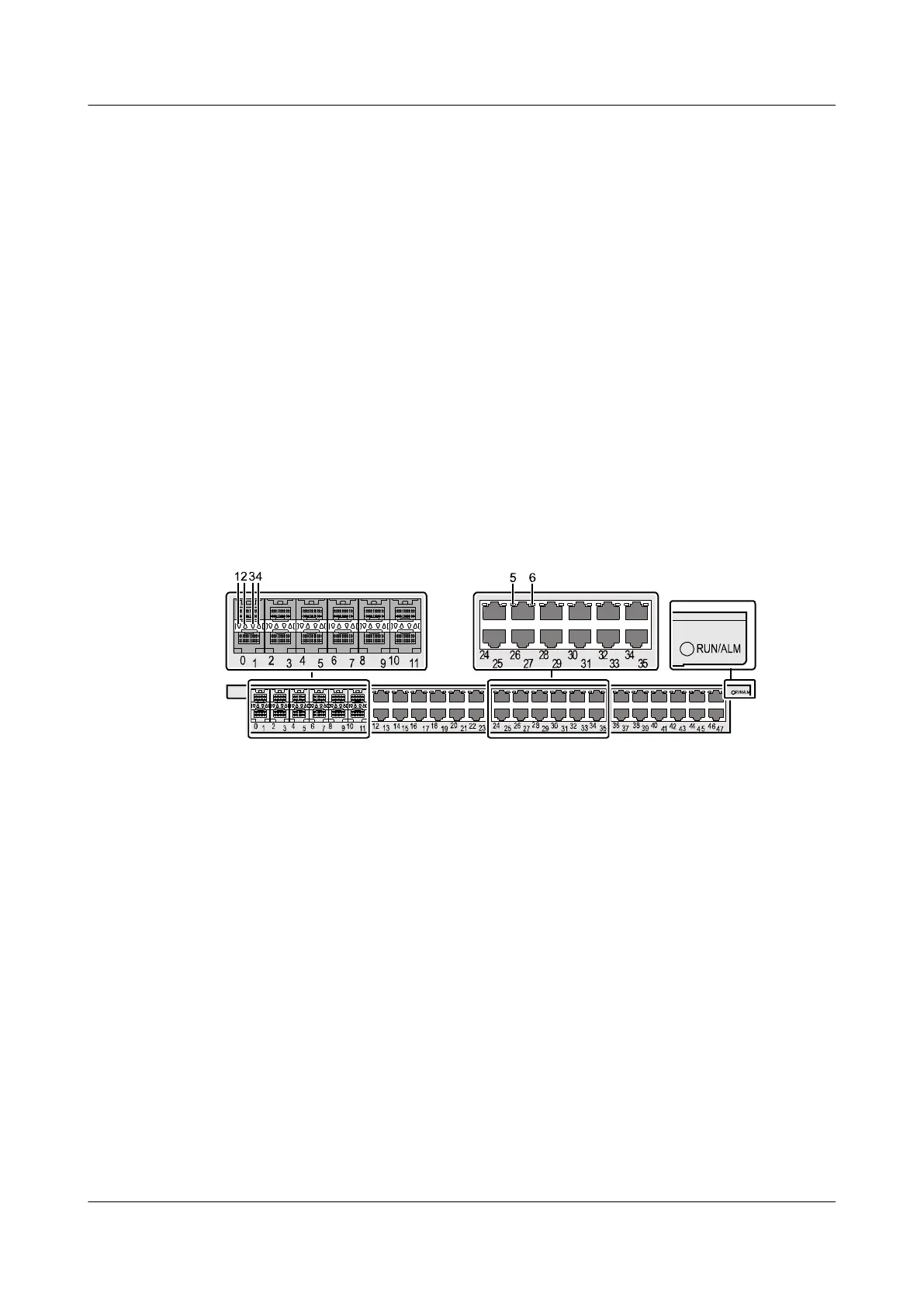

Figure 5-22 shows the appearance of the G48CEAT panel.
Figure 5-22 Appearance of the G48CEAT panel
1. ACT indicator of the
lower optical interfaces
2. ACT indicator of the
upper optical interfaces
3. Link indicator of the
lower optical interfaces
4. Link indicator of the
upper optical interfaces
5. Link/ACT indicators of
the upper electrical
interfaces
6. Link/ACT indicators of
the lower electrical
interfaces
Buttons and Indicators on the Panel
Table 5-53 describes the buttons and indicators on the G48CEAT panel.
